L08060 Spotlight    IP20

100% brass extrusion and electroplating I multiple installations

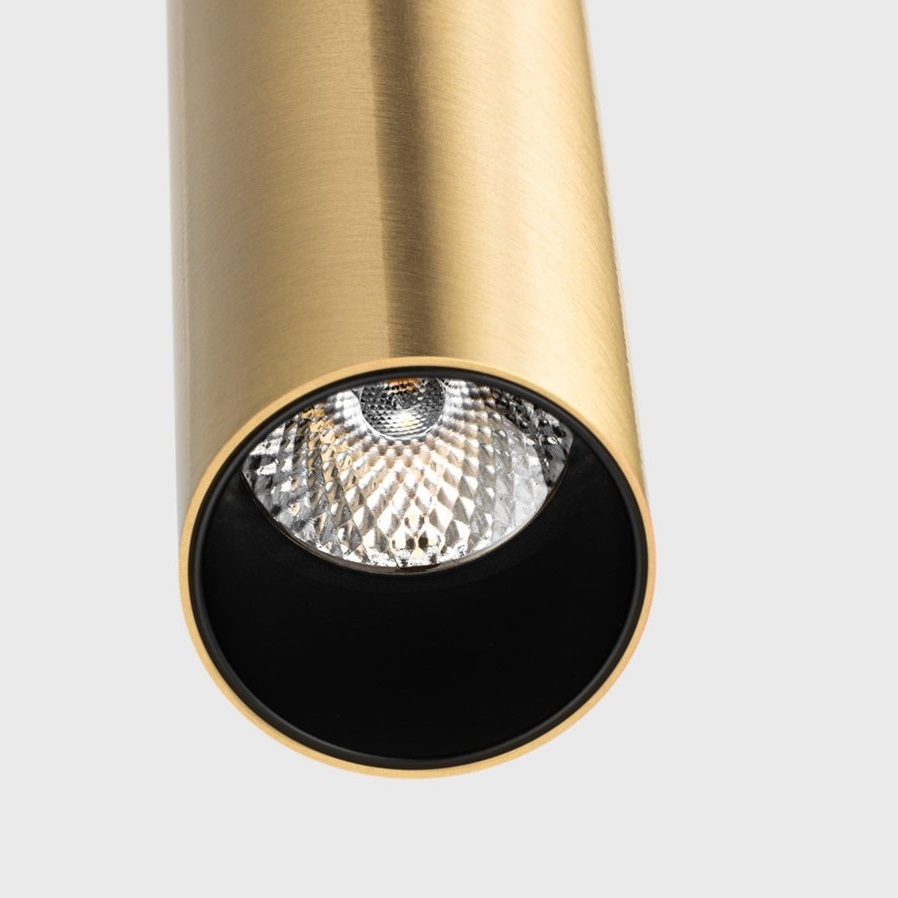

100% brass extrusion and electroplating pendant luminaire with Ø30 I Ø40 or Ø50mm diameter with an elongated cylindrical housing. Multiple installations. trimless, with a decorative trim and surfaced. Aluminum extrusion and powder coating housing. A lens in used instead of a conventional reflector. It allows to create directional and powerful luminous flux. The suspension system is very aesthetically pleasing, the power come through the suspension strands. Meanwhile, we have a wide range of color finishes and textures for you to choose from. We offer customized product solutions,materials include aluminum,stainless steel, copper and natural stone. Customized size, IP rating, color finishing, control systems and power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 550-1000lm
  • Built-in LED Driver
  • Ø30 I Ø40 or Ø50mm diameter
  • Flicker Free CRI90+ UGR<19
  • DALI I Casambi

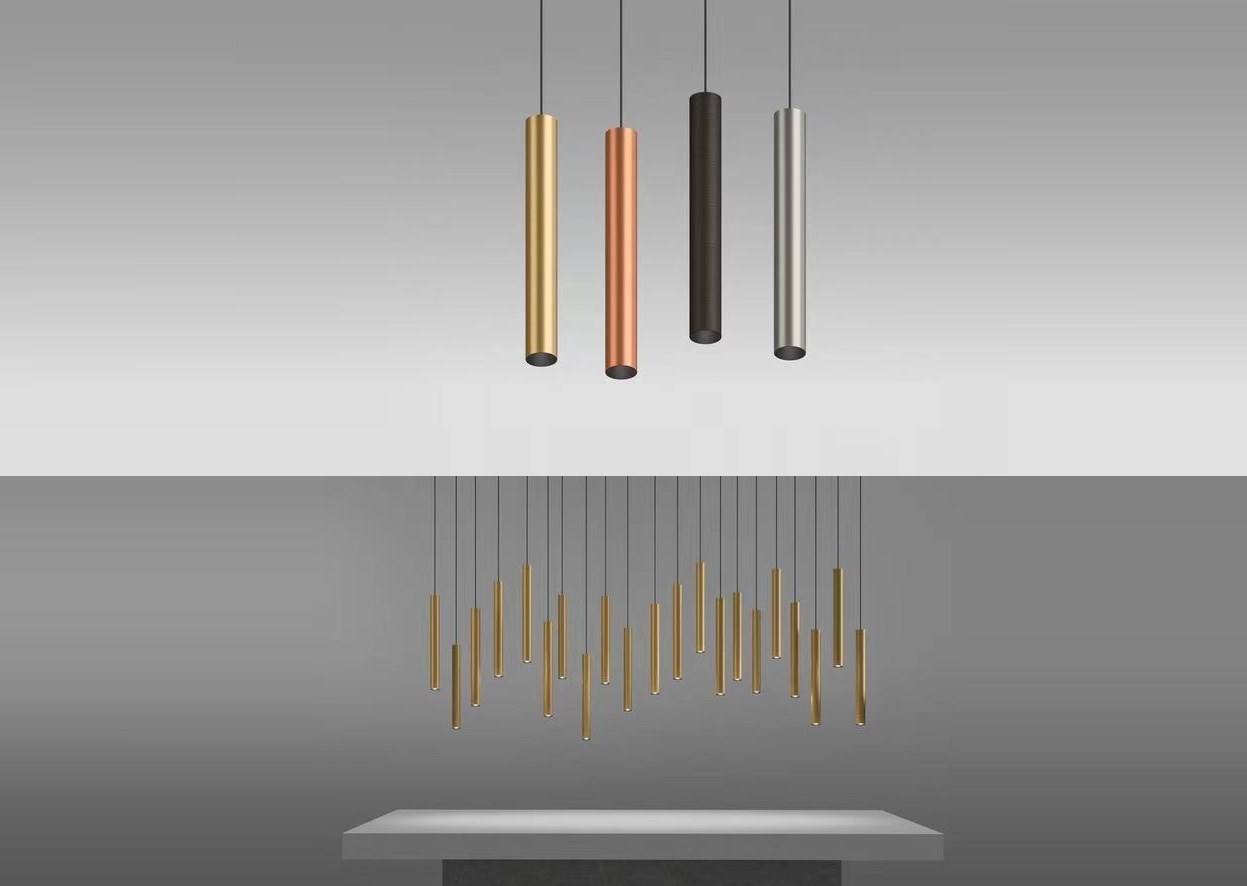

  • Pendant I Multiple installations.
  • Famous brand LED chips, CRI90+ 2steps

Product is Europe Standard & CE Certificate.

INTERIOR LED PENDANT SPOTLIGHT

L08060

IP20

CLASS III

Pendant Installation

Aluminium lighting fixture, powder coated.

Standard length of cable 2000mm with quick connector.

Eyes friendly CE certificate RoHS standard

CRI90 + 2SDCM COB LED

CASAMBI I Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

100% BRASS MATERIAL ELONGATED CYLINDRICAL HOUSING AND MULTIPLE INSTALLATIONS

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA

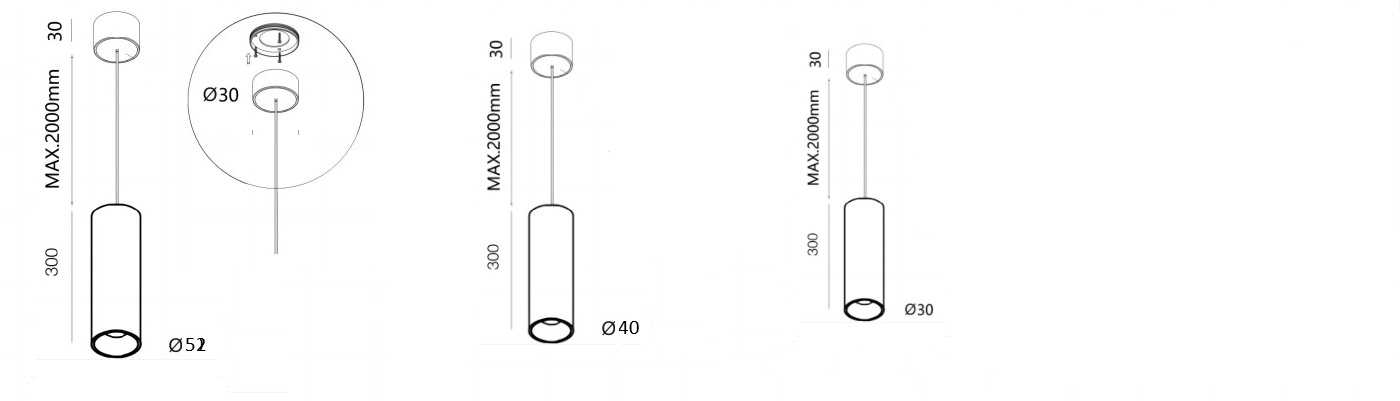

L08060-7 7W 550lm
30xH300mm
mm
150mA
L08060-10 10W 850lm
40xH300mm
mm
250mA
L08060-12 12W 1000lm
50xH300mm
mm
300mA

FEATURES

100% brass extrusion and electroplating pendant luminaire with Ø30 I Ø40 or Ø50mm diameter with an elongated cylindrical housing. Multiple installations. trimless, with a decorative trim and surfaced. Aluminum extrusion and powder coating housing. A lens in used instead of a conventional reflector. It allows to create directional and powerful luminous flux. The suspension system is very aesthetically pleasing, the power come through the suspension strands. Meanwhile, we have a wide range of color finishes and textures for you to choose from. We offer customized product solutions,materials include aluminum,stainless steel, copper and natural stone. Customized size, IP rating, color finishing, control systems and power changes are possible depending on the request and the quantity.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
10W   250mA
12W   300mA
