IP65 I 140lm/W

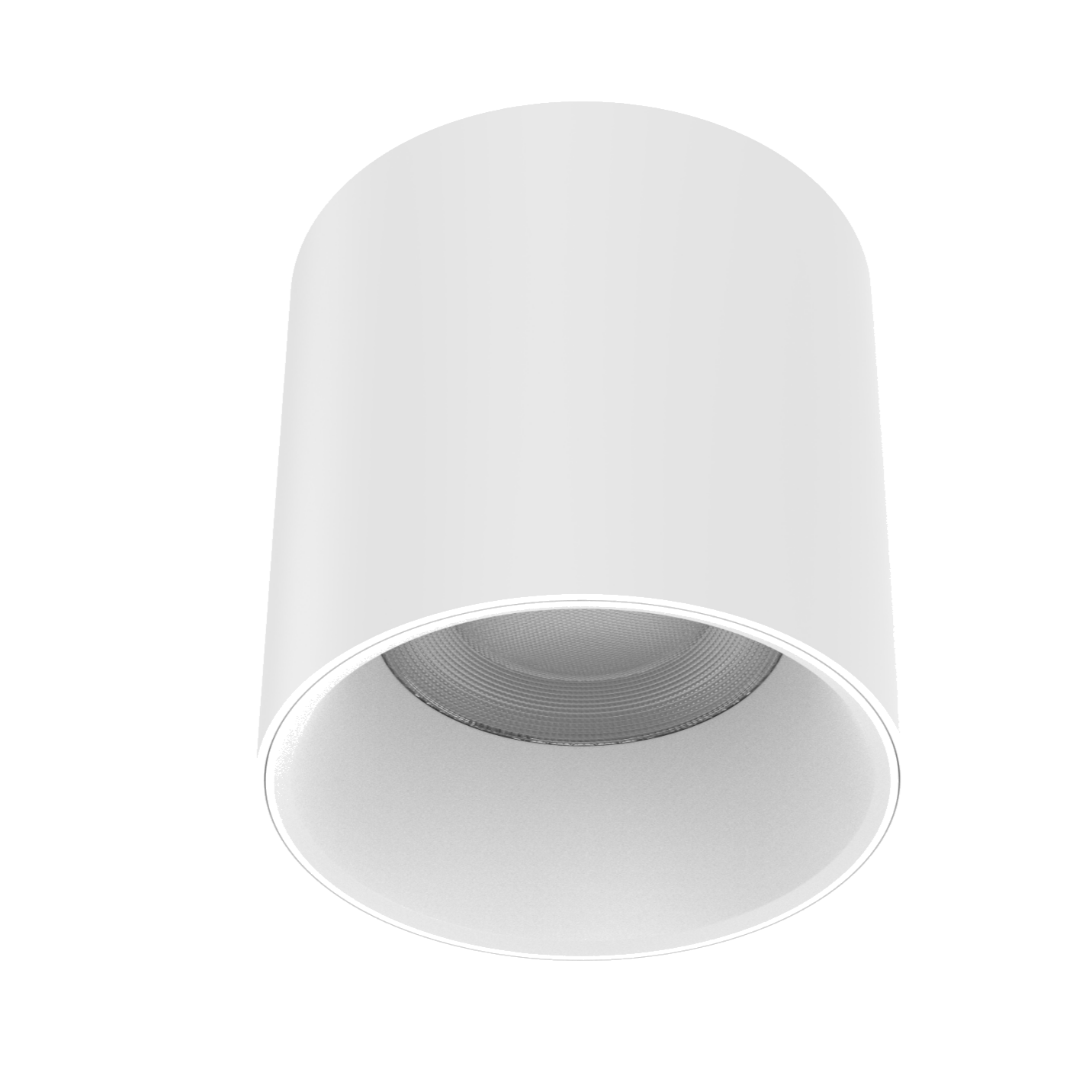

L08119 Spotlight    IP65

Aluminium die casting material and powder . Built in LED driver version. High Efficiency Spotlight . Visual comfort.

Surface mounted fixed spotlight with deeply recessed anti-glare light source. IP65 rated, suitable for both indoor and outdoor engineering projects. It offers two beam angles: 36° and 55°, delivering highly uniform light distribution. This high-efficiency spotlight achieves up to 140lm/W. Constructed with die-cast aluminum and powder coating, it is equipped with an ABS baffle available in multiple colors. The LED driver is built-in. The standard version comes in white and black, while customized colors and adjustable power are supported based on customer requirements and order quantity. It adopts high-brand LED chips with CRI90+ and 3-step binning. Supports smart lighting systems, compatible with CASAMBI and DALI DT8 dimming. The IP65 rating allows safe application in bathrooms and other humid outdoor environments, ensuring consistent and even lighting across the space. The spotlight features a clean design and excellent anti-glare performance, providing comfortable, non-dazzling lighting. An ideal engineering lighting solution for the mid-to-high-end market. 5-year warranty provided.

TECHICAL DATA

  • 1400-5800lm
  • Built-in LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Surface Mounted
  • DALI I Triac I 0/1-10V I CASAMBI
  • 300-400mm cable with quick connector.
  • Famous brand LED CRI90+ 2-3SDCM

Product is Europe Standard & CE Certificate.

SURFACE MOUNTED LED DOWN SPOTLIGHT - IP65

L08119

IP65

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

High Efficiency IP65 Fixing Spotlight

Surface Mounted

Aluminium die-casting lighting fixture, powder coated.

Famous brand LED CRI90+ 2-3SDCM

Flicker Free I Deeply recessed light source.

Built-in LED Driver

DALI I Triac I 0/1-10V I CASAMBI

IP65 HIGH EFFICIENCY AND UNIFORM DISTRIBUTION

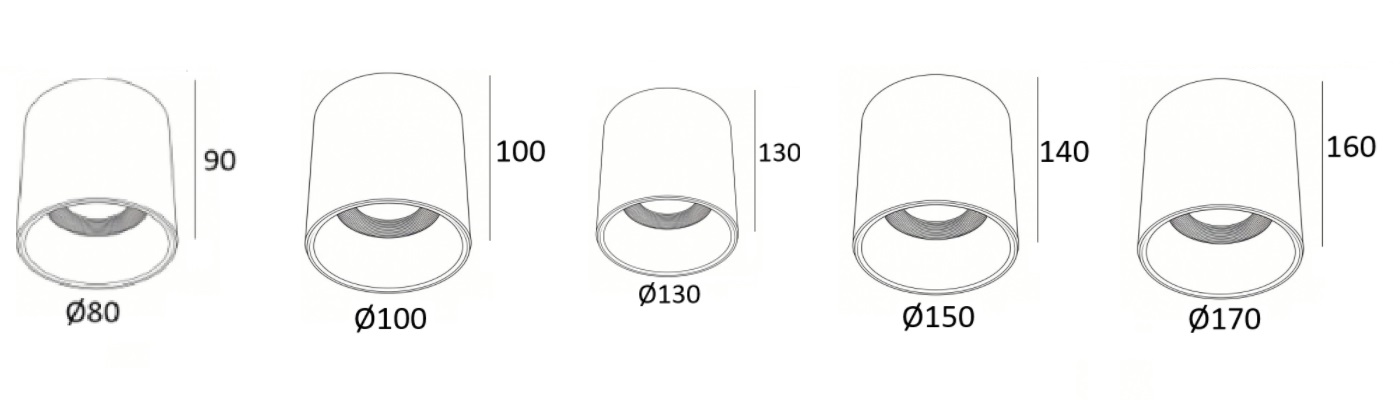

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L08119-10 10W 1400lm
80xH90mm
mm
250mA
L08119-15 15W 2100lm
100xH100mm
mm
400mA
L08119-25 25W 3500lm
130xH130mm
mm
650mA
L08119-35 35W 4900lm
150xH140mm
mm
900mA
L08119-42 42W 5800lm
170xH160mm
mm
1050mA

FEATURES

Surface mounted fixed spotlight with deeply recessed anti-glare light source. IP65 rated, suitable for both indoor and outdoor engineering projects. It offers two beam angles: 36° and 55°, delivering highly uniform light distribution. This high-efficiency spotlight achieves up to 140lm/W. Constructed with die-cast aluminum and powder coating, it is equipped with an ABS baffle available in multiple colors. The LED driver is built-in. The standard version comes in white and black, while customized colors and adjustable power are supported based on customer requirements and order quantity. It adopts high-brand LED chips with CRI90+ and 3-step binning. Supports smart lighting systems, compatible with CASAMBI and DALI DT8 dimming. The IP65 rating allows safe application in bathrooms and other humid outdoor environments, ensuring consistent and even lighting across the space. The spotlight features a clean design and excellent anti-glare performance, providing comfortable, non-dazzling lighting. An ideal engineering lighting solution for the mid-to-high-end market. 5-year warranty provided.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
15W   400mA
25W   650mA
35W   900mA
42W   1050mA
