Mini louver light

L09404 Mini louver light    IP20

The lamp is for super slim 5mm series track system, Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress.

The lamp is for super slim 5mm series track system, Mini louver light, up to 2 types of length.L330 and L430mm. High level of visual comfort UGR<19, available for either narrow beam angle or wide beam angle, OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails makes these products to be highly flexible and easy to handle. The luminaire can totally disappear in the track after installation. Extremely integrated with the track rails, achieved visible light and invisible lighting fixtures.It's an ideal solution for indirect lighting ( up lighting option for the suspended installation ) as well. Highlight the beauty, Create your customized lighting atmosphere.

TECHICAL DATA

  • 250-360lm
  • The lamp is for super slim 5mm series track system.
  • DALI I Triac I 0/1-10V I CASAMBI
  • OSRAM branded LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

SUPER SLIM 5MM SERIES TRACK SYSTEM

L09404

IP20

CLASS III

Europe Standard & CE Certificate.

Visual Comfort UGR<19

Compatible with super slim 5mm series track system

Soft Light

OSRAM branded LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver I 24V DC

DALI I Triac I 0/1-10V I CASAMBI

UNIFORM DISTRIBUTION I EASY INSTALLATIONS

Code System Power
W
Output Lumen
lm

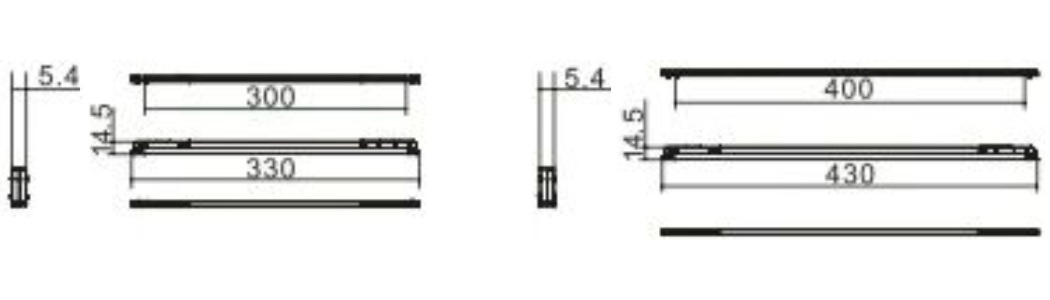

Dimension
mm
Cut Hole
mm
Power Supply
mA
L09404-4 4W 250lm
L330x5.4xH14.5mm
mm
mA
L09404-6 6W 360lm
L430x5.4xH14.5mm
mm
mA

FEATURES

The lamp is for super slim 5mm series track system, Mini louver light, up to 2 types of length.L330 and L430mm. High level of visual comfort UGR<19, available for either narrow beam angle or wide beam angle, OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails makes these products to be highly flexible and easy to handle. The luminaire can totally disappear in the track after installation. Extremely integrated with the track rails, achieved visible light and invisible lighting fixtures.It's an ideal solution for indirect lighting ( up lighting option for the suspended installation ) as well. Highlight the beauty, Create your customized lighting atmosphere.

Accessoires Beam Angle Color Temperature Finishes
4W   mA
6W   mA
