Fixed Grille Light

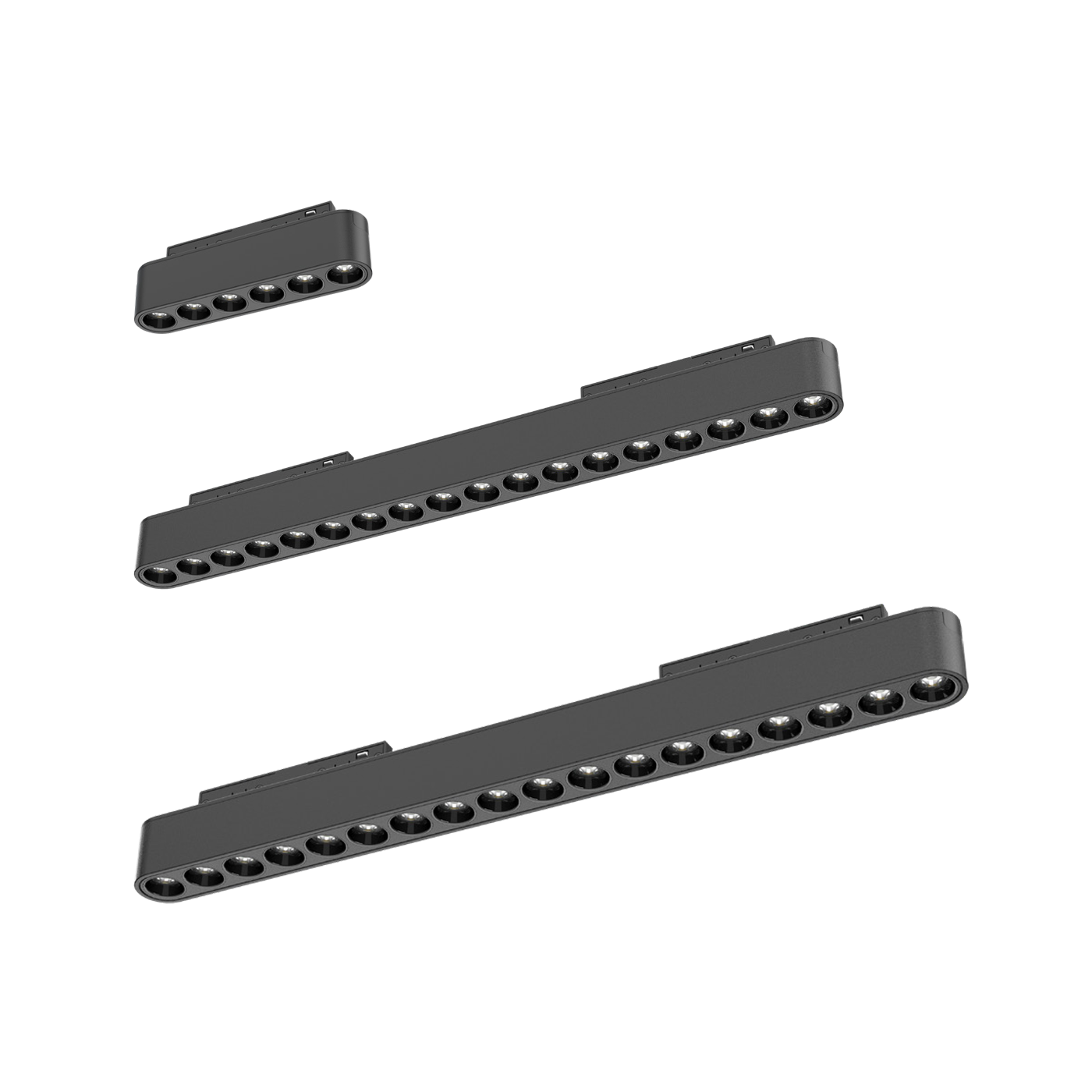

L09401 Directional fixed Grille Light    IP20

The lamp is for super slim 5mm series track system, Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress.

The lamp is for super slim 5mm series track system, Directional fixed Grille Light, Mini louver light, up to 3 types of length. High level of visual comfort UGR<16, available for either narrow beam angle or wide beam angle, OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere.

TECHICAL DATA

  • 480-1460lm
  • The lamp is for super slim 5mm series track system.
  • DALI I Triac I 0/1-10V I CASAMBI
  • OSRAM branded LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

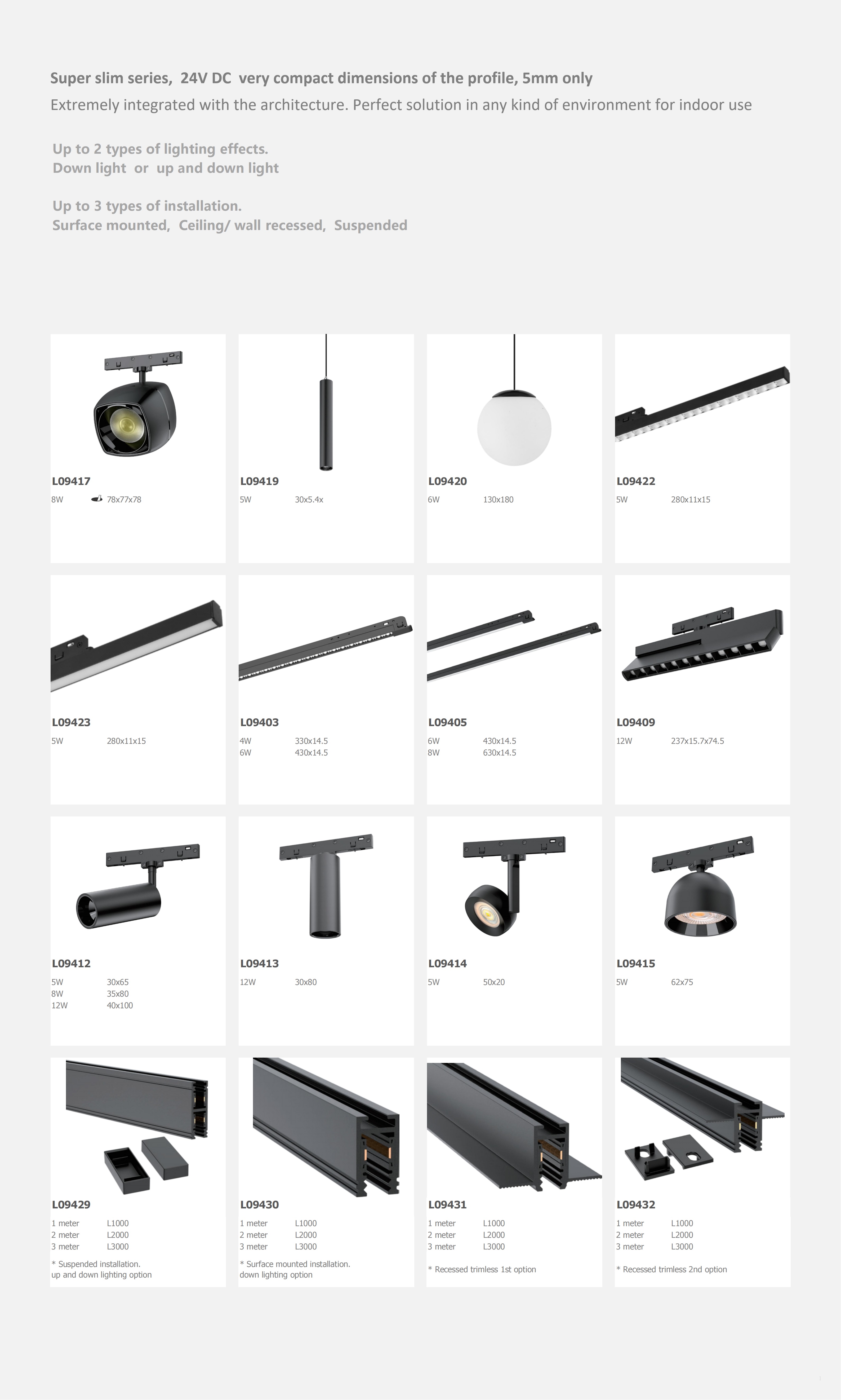

SUPER SLIM 5MM SERIES TRACK SYSTEM

L09401

IP20

CLASS III

Europe Standard & CE Certificate.

Visual Comfort UGR<19

Compatible with super slim 5mm series track system

Soft Light

OSRAM branded LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver I 24V DC

DALI I Triac I 0/1-10V I CASAMBI

UNIFORM DISTRIBUTION I EASY INSTALLATIONS

Code System Power
W
Output Lumen
lm

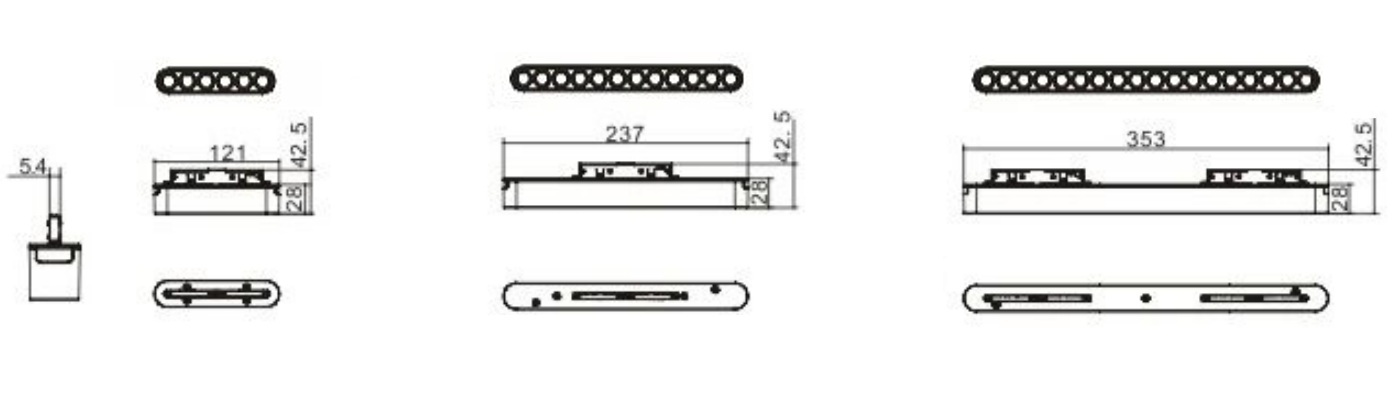

Dimension
mm
Cut Hole
mm
Power Supply
mA
L09401-6 6W 480lm
L120x5.4xH42.5mm
mm
mA
L09401-12 12W 1060lm
L237x5.4xH42.5mm
mm
mA
L09401-18 18W 1460lm
L353x5.4xH42.5mm
mm
mA

FEATURES

The lamp is for super slim 5mm series track system, Directional fixed Grille Light, Mini louver light, up to 3 types of length. High level of visual comfort UGR<16, available for either narrow beam angle or wide beam angle, OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere.

Accessoires Beam Angle Color Temperature Finishes
6W   mA
12W   mA
18W   mA
