Ø78 I 12W

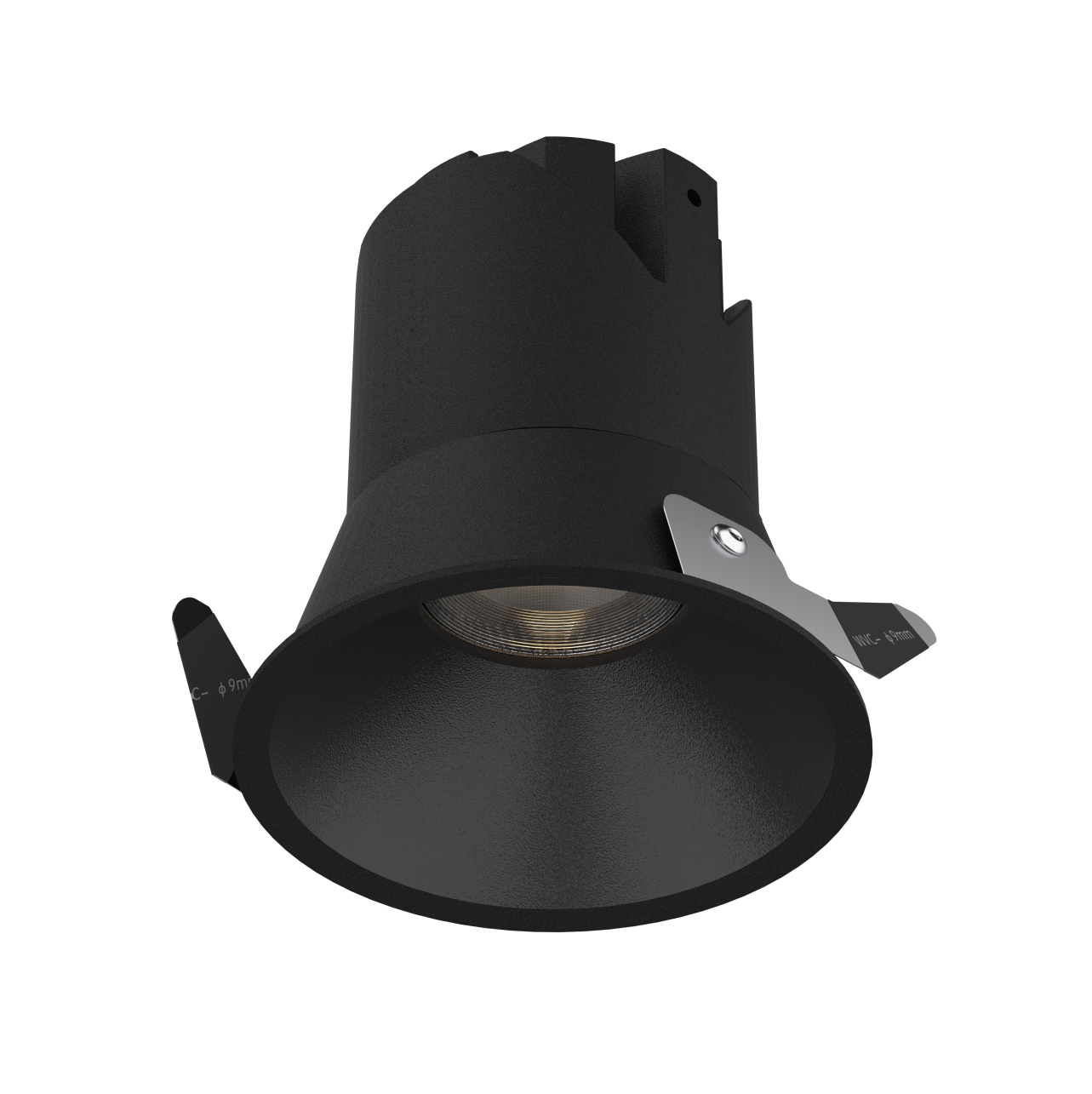

L03249 Spotlight    IP54

Aluminium die casting heat-sink, powder coating. Remote LED driver version. Deep cut-off angle . DALI Tunable White 2700K-6500K CCT. （36° I 55°））

Luminaires in this line have modular design. They comprise a LED light module and a frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. Easy installations. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity. Moreover, the IP54 means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.

TECHICAL DATA

  • 1100-1350lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • DALI Tunable White 2700K-6500K CCT.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03249

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

Recessed light source , eyes friendly

0/1-10V I Triac I DALI Tunable white dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA

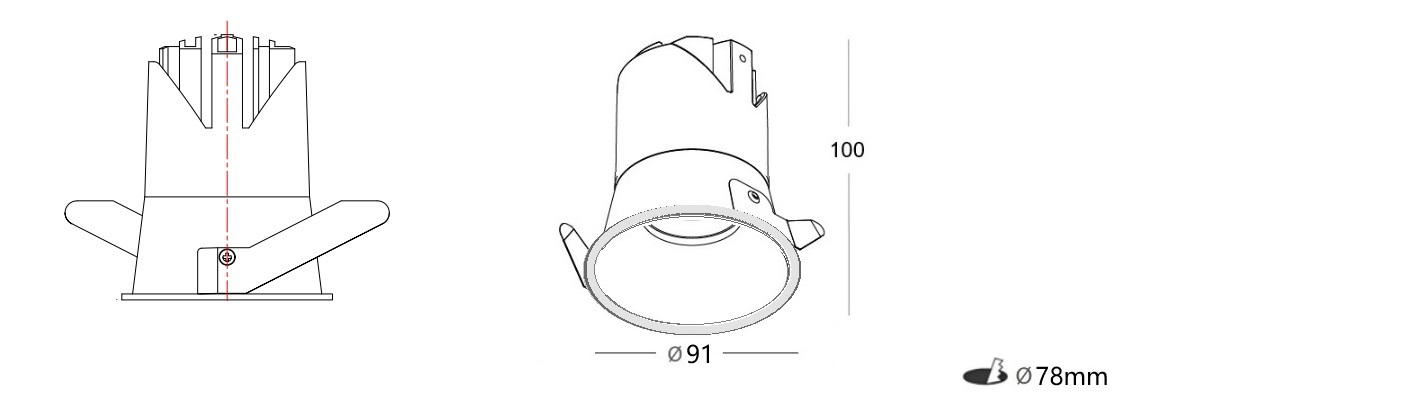

L03249-12 12W 1100lm
91xH100mm
78mm		 300mA
L03249-15 15W 1350lm
91xH100mm
78mm		 350mA

FEATURES

Luminaires in this line have modular design. They comprise a LED light module and a frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. Easy installations. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity. Moreover, the IP54 means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
15W   350mA
