Ø55 I 10W

L03156 Spotlight    IP44

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort.

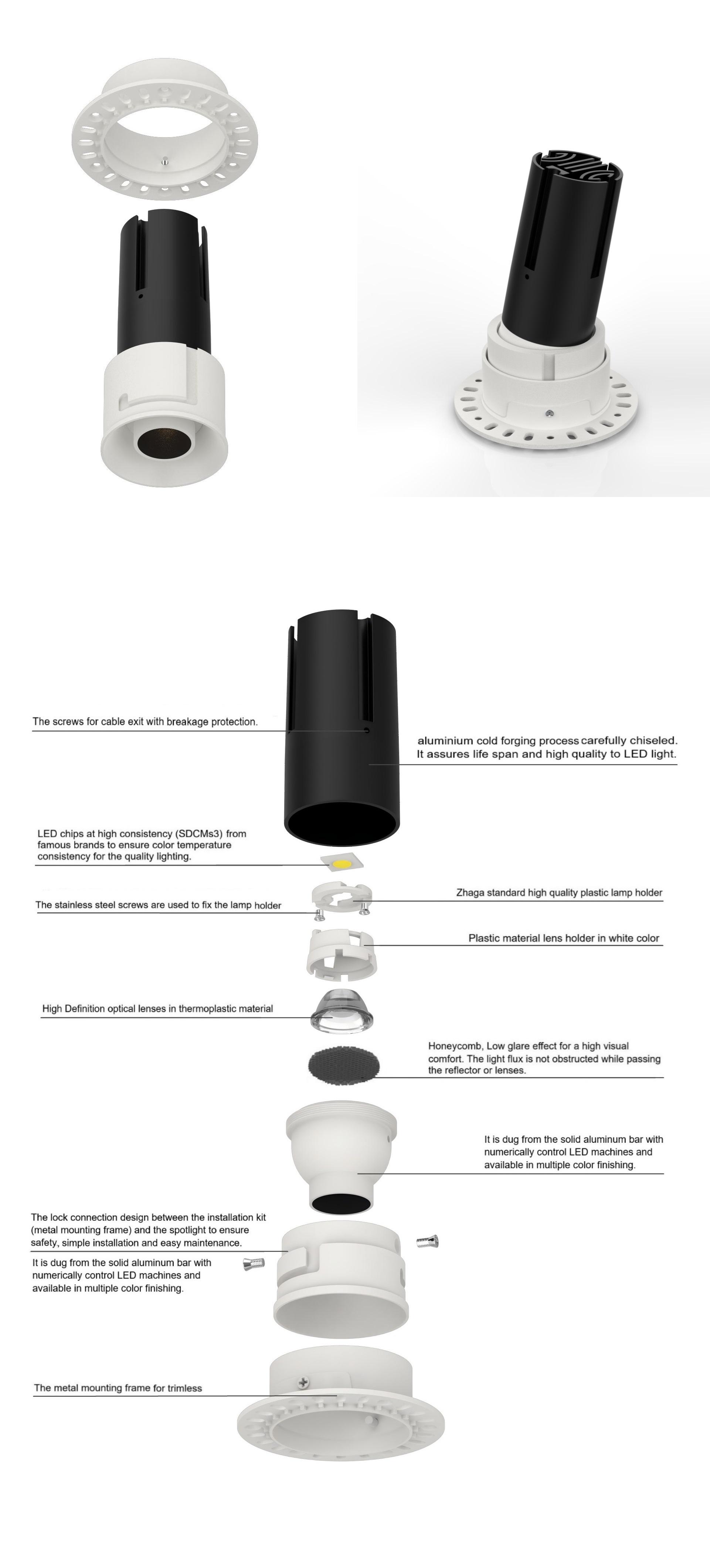

24°adjustable I Trimless spotlight with decorative metal baffle. LED modular design, comprise a LED light module, a metal baffle and a mounting frame. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. The lock connection design between the installation kit and the spotlight ensures safety and easy installations, easy to take the spot out from its frame. Invisible transition between the fixture and the ceiling. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

TECHICAL DATA

  • 350-500lm
  • Remote LED Driver
  • Aluminium material lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed. Trimless
  • CRI90 3SDCM 24°adjustable

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03156

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating.

Ceiling recessed, Trimless

24°adjustable lighting fixture

CITIZEN COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI dimming.

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA

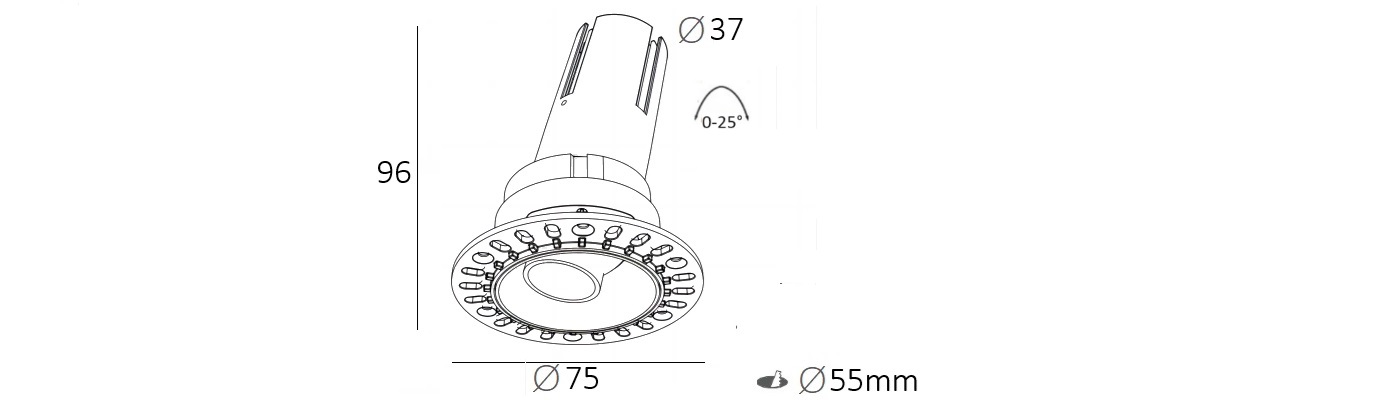

L03156-7 7W 350lm
75xH96mm
55mm		 150mA
L03156-10 10W 500lm
75xH96mm
55mm		 250mA

FEATURES

24°adjustable I Trimless spotlight with decorative metal baffle. LED modular design, comprise a LED light module, a metal baffle and a mounting frame. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. The lock connection design between the installation kit and the spotlight ensures safety and easy installations, easy to take the spot out from its frame. Invisible transition between the fixture and the ceiling. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
10W   250mA
