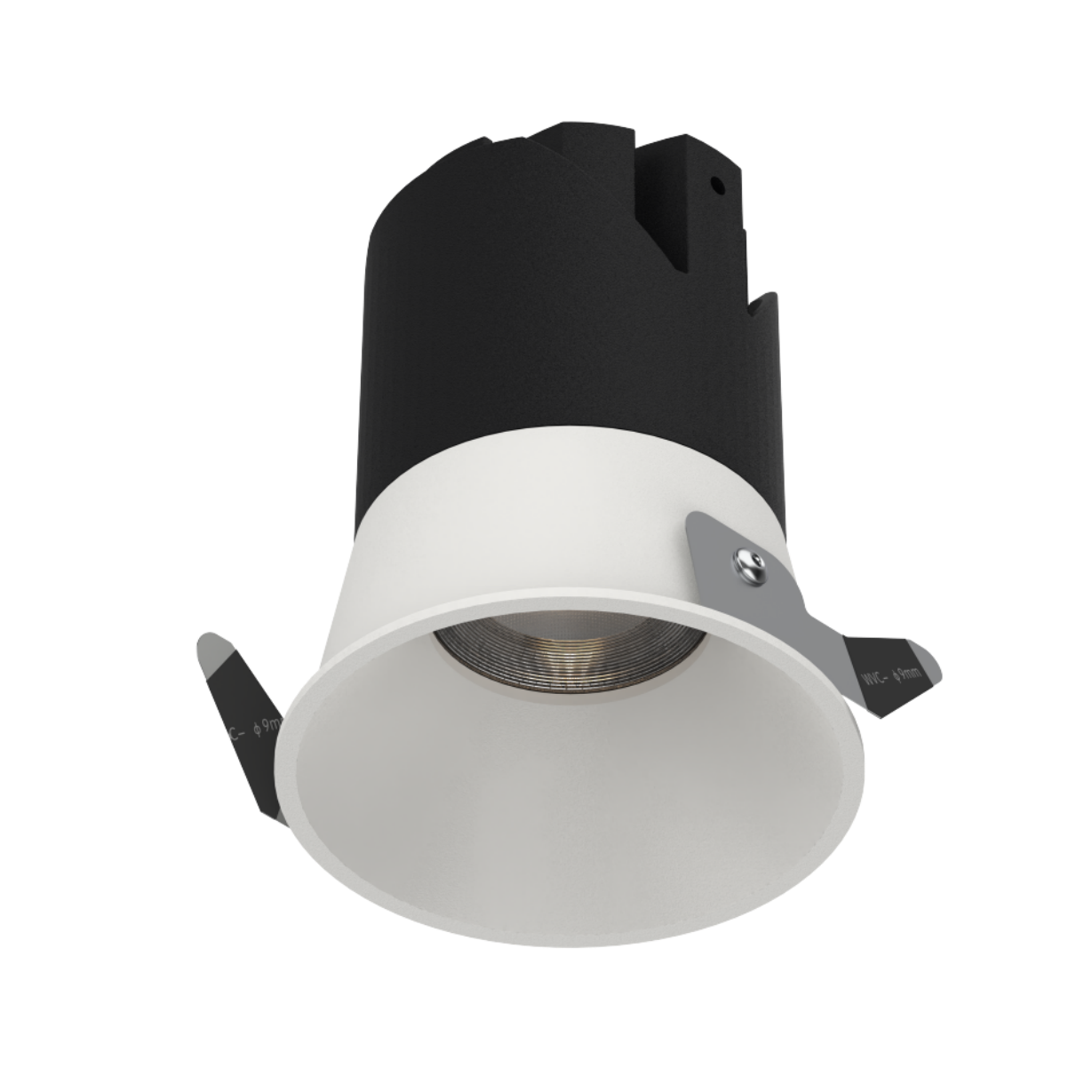

L03013 Spotlight    IP44

Aluminium die casting heat-sink, powder coating. Remote LED driver version. Deep cut-off angle 45°. L03013DTW DALI Tunable White 2700K-6500K CCT. (36° I 55°))

Fixed spotlight super narrow trim, visual comfort,recessed light source. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. High-quality mixing effect achieved. White and bright to warm and dim, tunable white gives character to it's environment. The light spot are remain the same while the color change, and there is almost no effect on the light spot. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Dimming from 0~100%, down to 0.01%. Recessed light source. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle is available in multiple color finishing, Black I White I Gold.

TECHICAL DATA

  • 895-1900lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • dimmable
  • Ceiling, wall recessed.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03013

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Recessed light source , eyes friendly

0/1-10V I Triac I DALI Tunable white dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

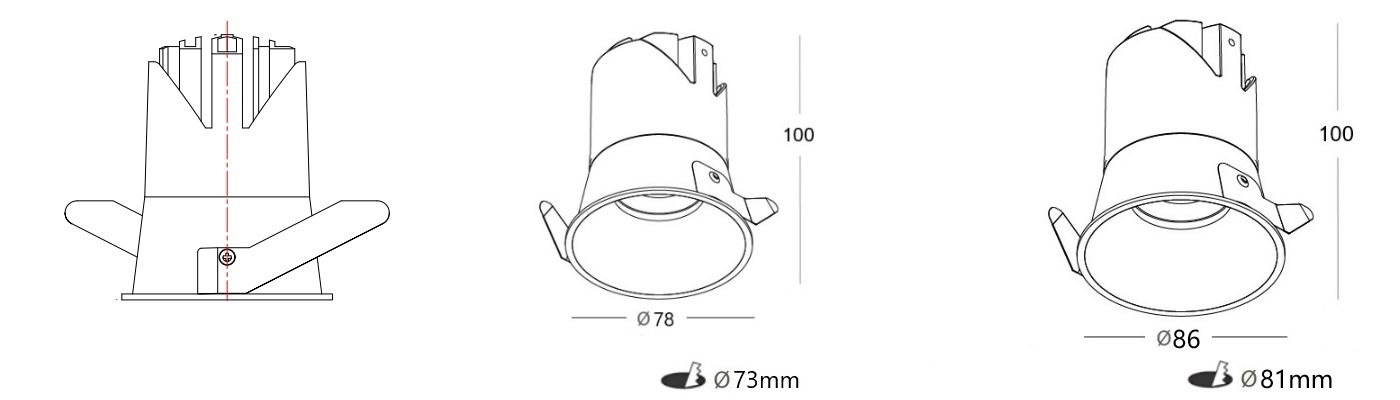

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03013 -7 7W 895lm
87xH100mm
81mm
200mA
L03013-11 11W 1302lm
87xH100mm
81mm
300mA
L03013-15 15W 1900lm
87xH100mm
81mm
400mA

FEATURES

Luminaires in this line have modular design. They comprise a LED light module and a frame. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. Easy installations. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   200mA
11W   300mA
15W   400mA
