Ø55 I 7W I 10W

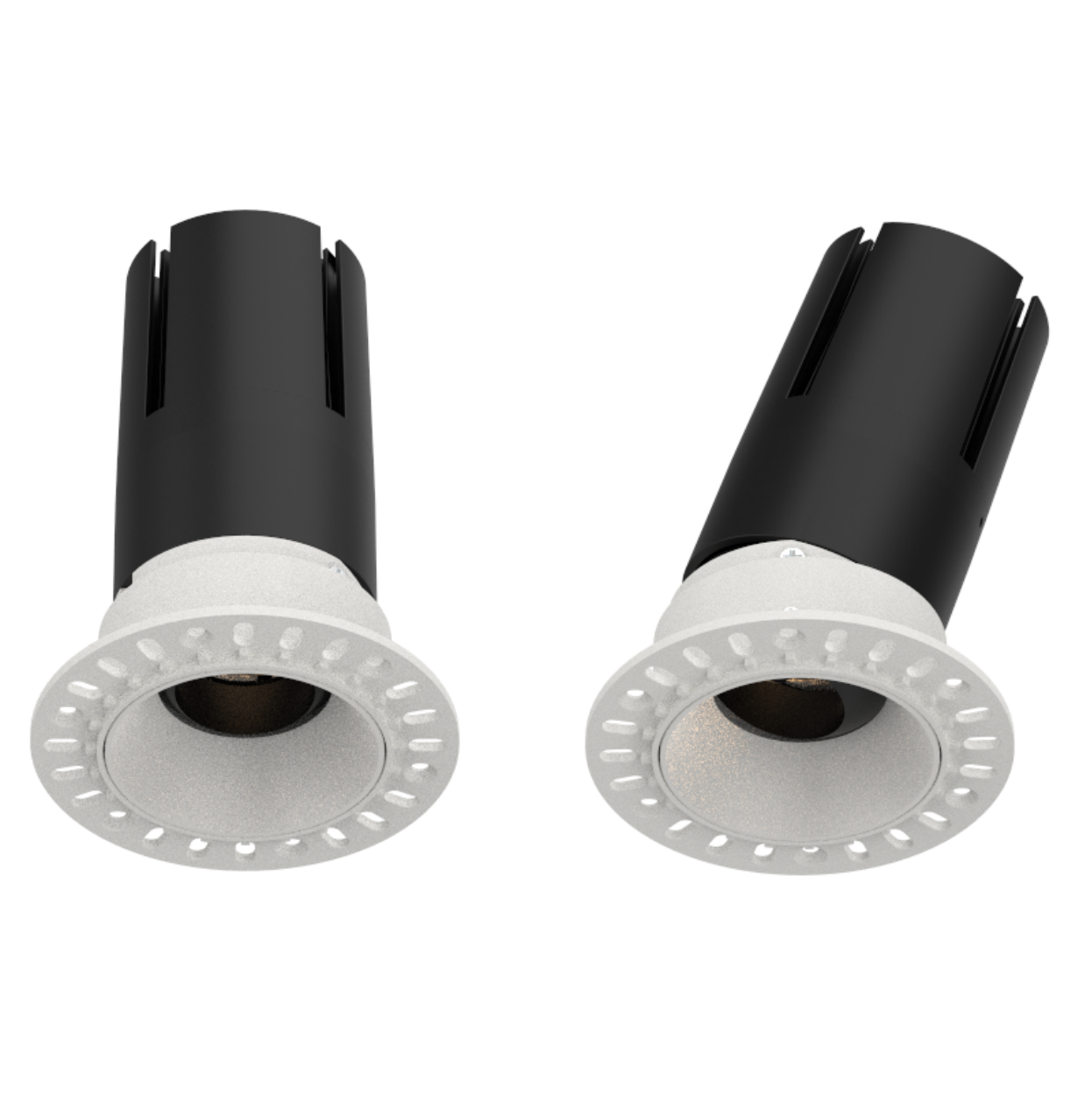

L03022 Spotlight    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort.

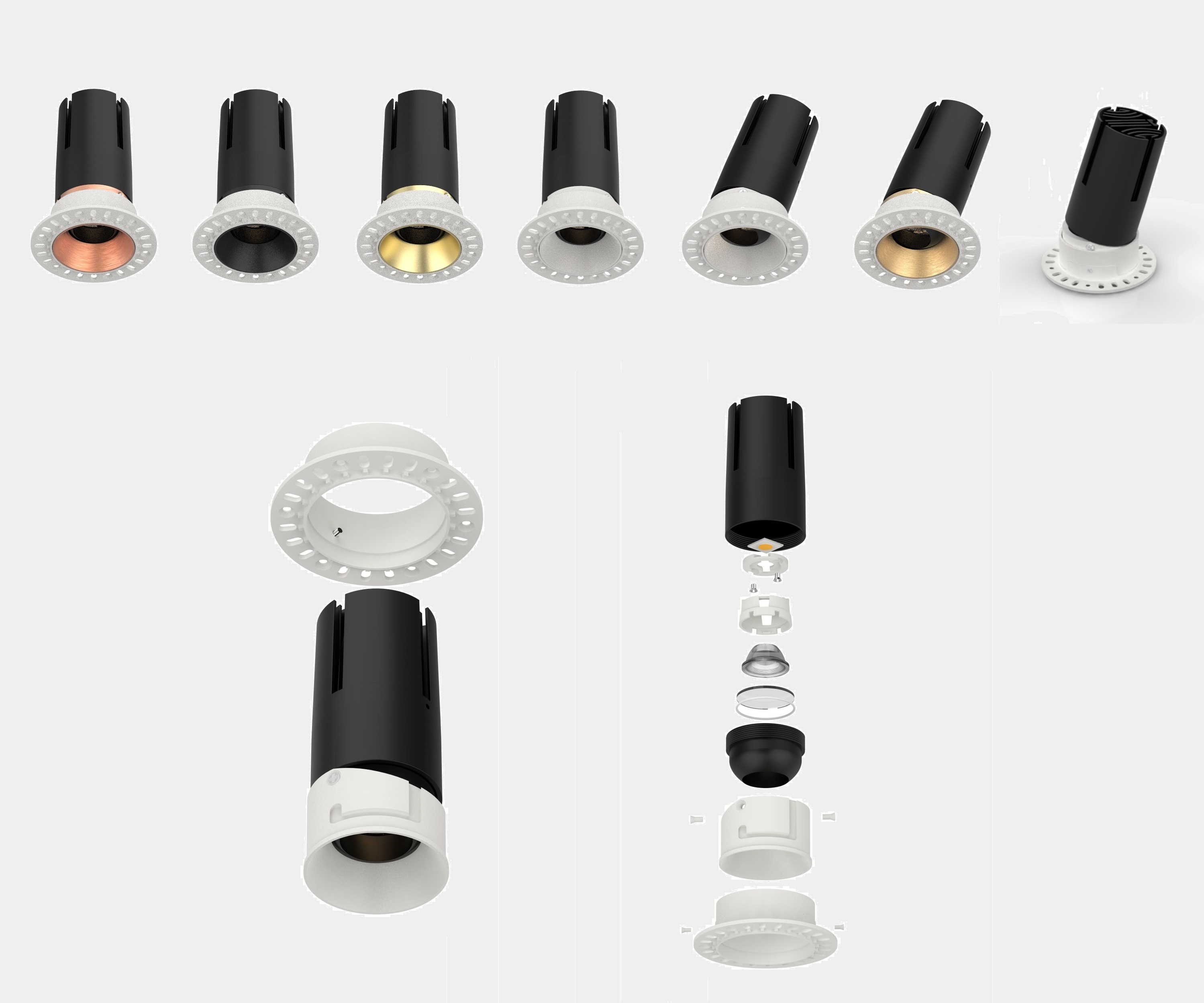

The trimless adjustable spotlight is one of new developments. Same appearance both Fixed and Adjustable with decorative metal baffle. 25°adjustable, LED modular design, comprise a LED light module, a metal baffle and a mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. The lock connection design between the installation kit and the spotlight ensures safety. and invisible transition between the fixture and the ceiling. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

TECHICAL DATA

  • 450-650lm
  • Remote LED Driver
  • Aluminium material lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed. Trimless
  • CRI90 3SDCM 25°adjustable

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03022

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material and powder coating.

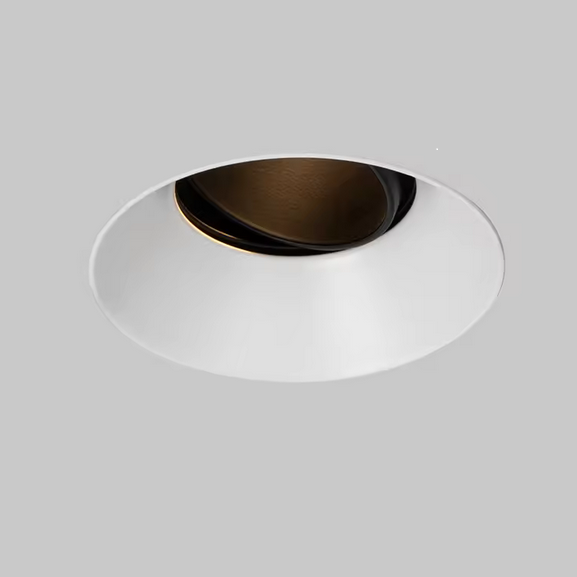

Ceiling recessed, Plaster-in. Trimless

Same appearance both Fixed and 25°adjustable

CITIZEN COB LED 3SDCM CRI90+

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort.

0/1-10V I Triac I DALI Tunable white dimming.

UNIFORM DISTRIBUTION AND SOFT LIGHT

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03022-7 7W 450lm
75xH105mm
55mm		 150mA
L03022-10 10W 650lm
75xH105mm
55mm		 250mA

FEATURES

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. The trimless adjustable spotlight is one of new developments. Same appearance both Fixed and Adjustable with decorative metal baffle. 25°adjustable, LED modular design, comprise a LED light module, a metal baffle and a mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. High Definition optical lenses in thermoplastic material. The lock connection design between the installation kit and the spotlight ensures safety. and invisible transition between the fixture and the ceiling. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
10W   250mA
