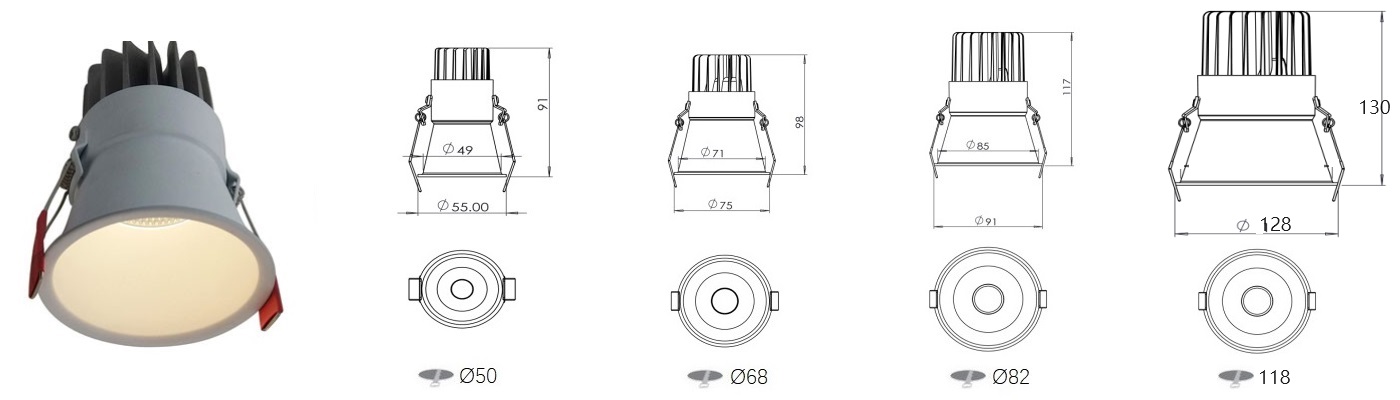

Ø50 I Ø68 I Ø82 I Ø118

L03079 Spotlight    IP44

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable. CRI>90

Fixed spotlight with SLIM trim, visual comfort low glare optic with recessed light source. Uniform distribution. Available for multiple optic distributions. Specialised optics and optical filters can be ordered. Spring for easy installation. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity. 5 years warranty.

TECHICAL DATA

  • 400-1600lm
  • Remote LED Driver
  • Aluminium Material lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

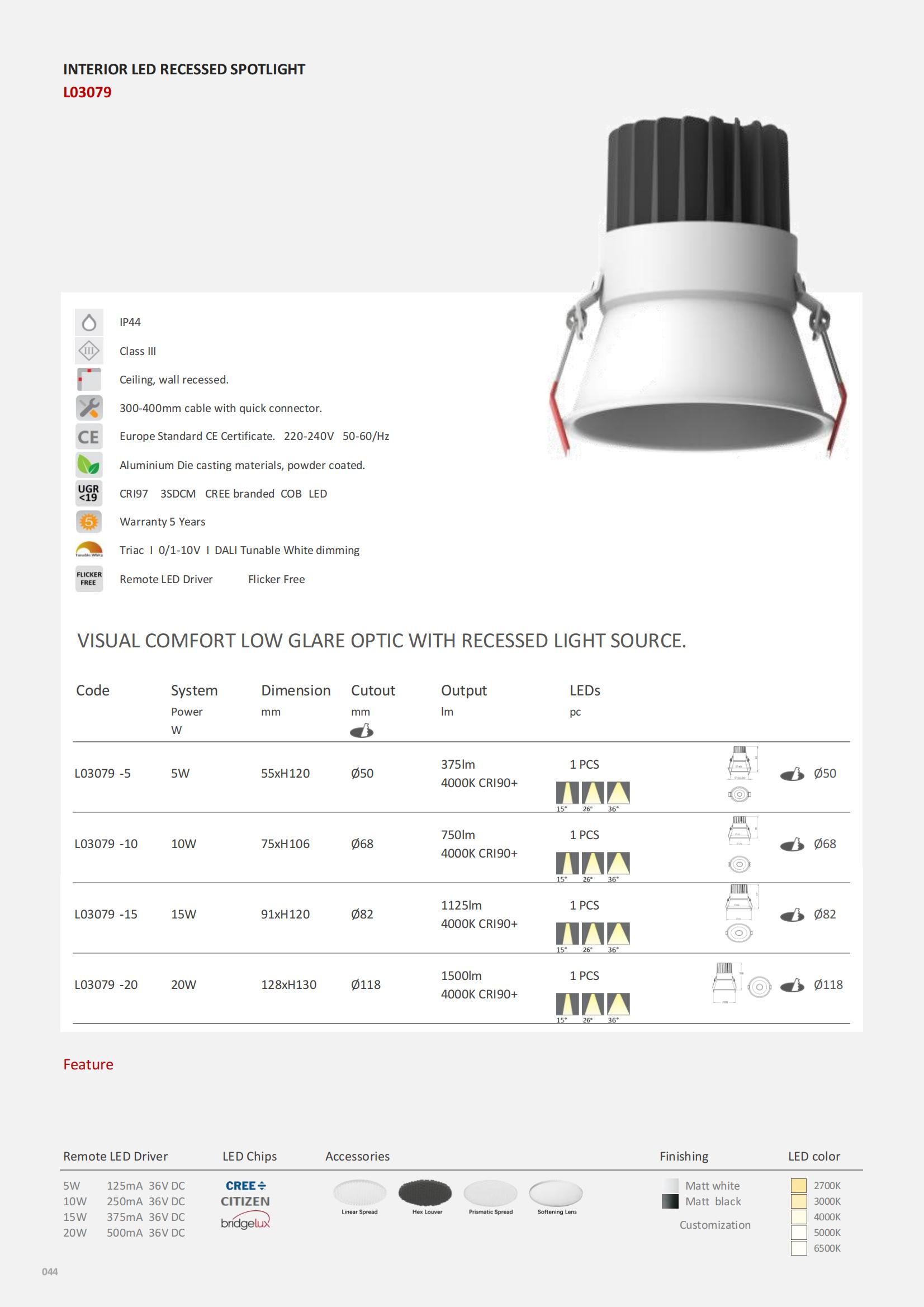

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03079

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium material lighting fixture and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CITIZEN COB LED 3SDCM

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03079-5 5W 400lm
55xH120mm
50mm
150mA
L03079-10 10W 800lm
75xH106mm
68mm
250mA
L03079-15 15W 1200lm
91xH120mm
82mm
350mA
L03079-20 20W 1600lm
128xH130mm
118mm
500mA

FEATURES

Famous brand COB LED Chips I 2SDCM I High CRI I High level of visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   150mA
10W   250mA
15W   350mA
20W   500mA
