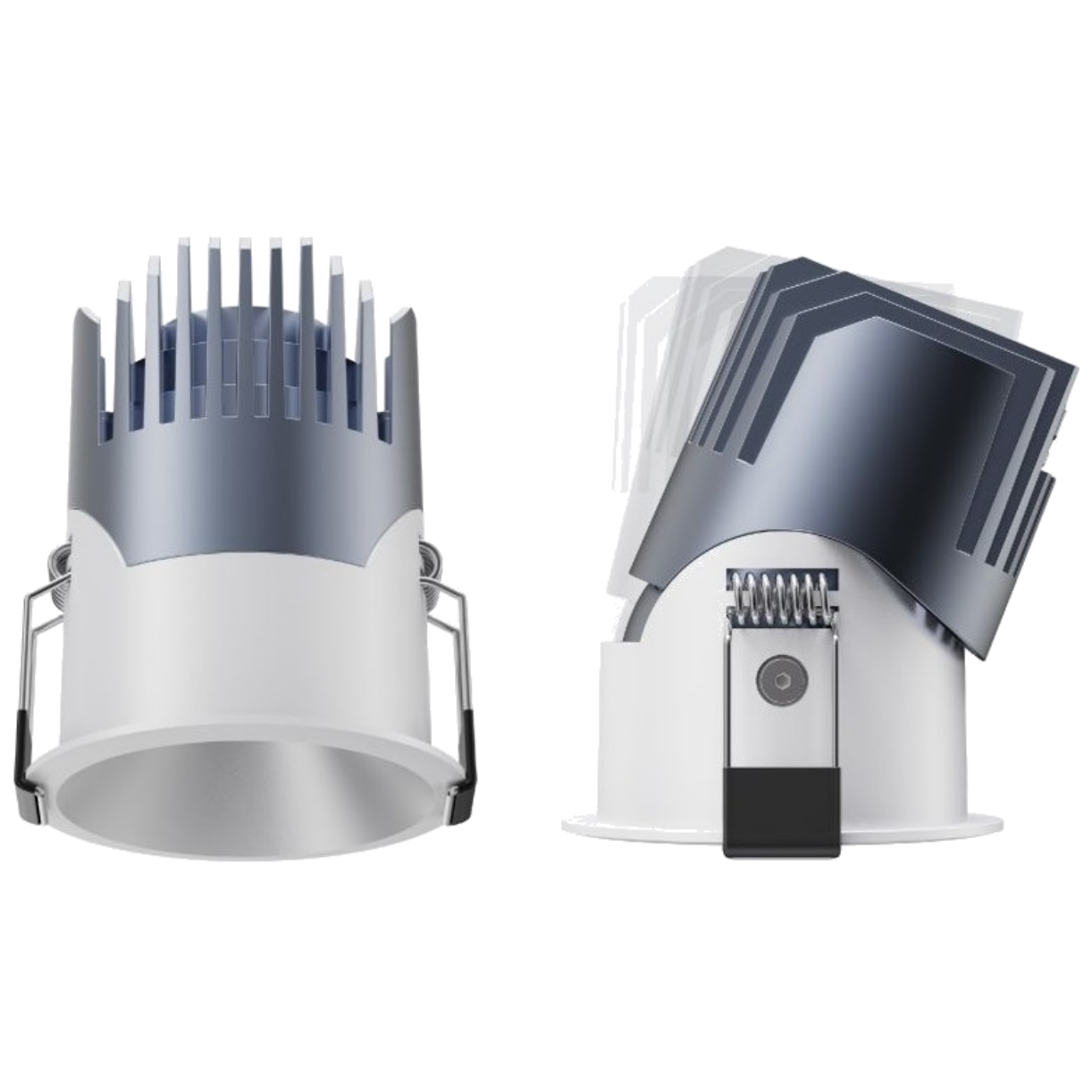

L03725 Spotlight IP65

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source. available for a few different output beams. Specialized optical filters honeycomb can be ordered. Same appearance both Fixed and Adjustable . The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. Ø55 I Ø65 I Ø75mm available for 10°

TECHICAL DATA

400-600lm
Remote LED Driver
300-400mm cable with quick connector.
Ceiling Recessed Installation I Narrow Trim
DALI I Triac I 0/1-10V I Tunable white dimming

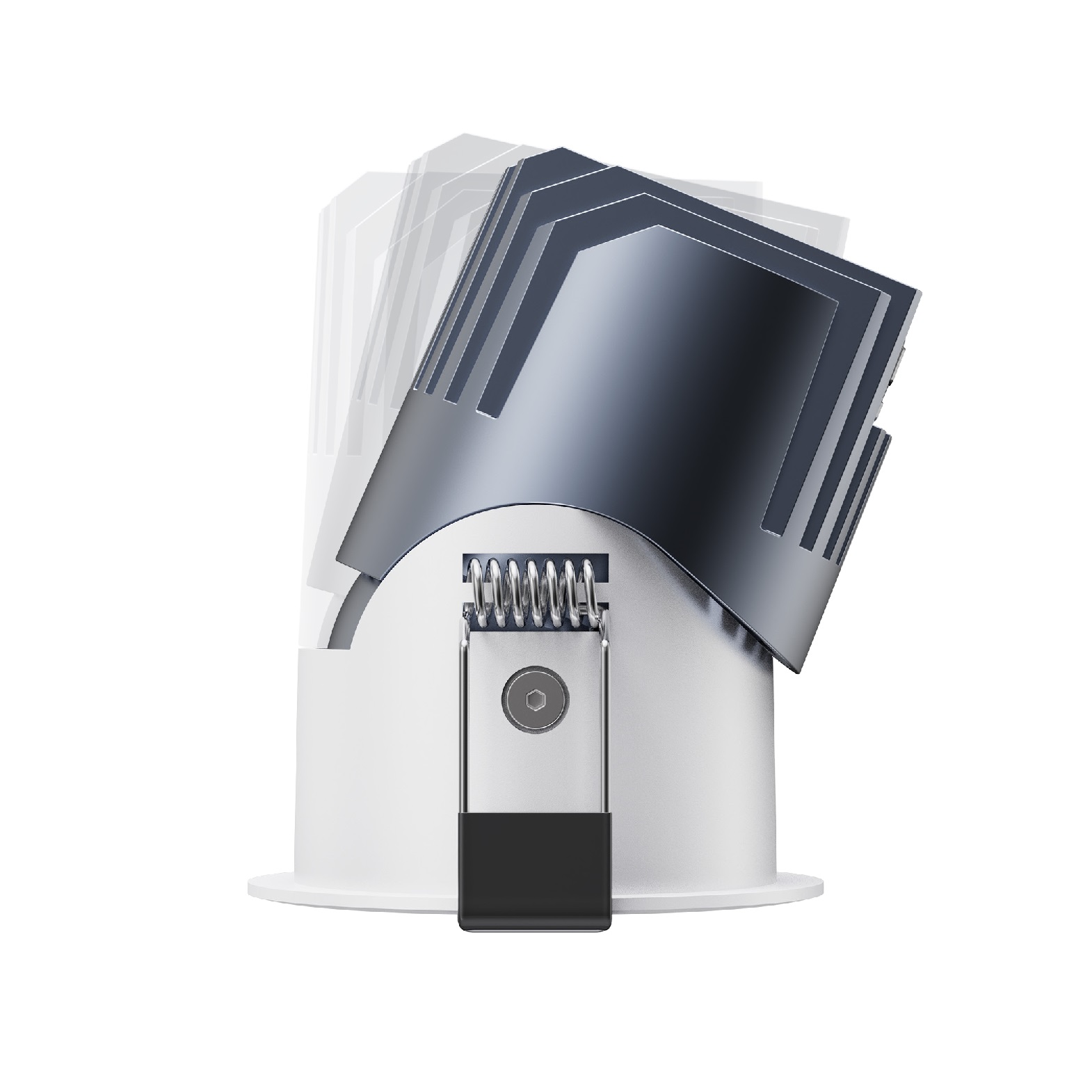

The lighting fixture is 30°adjustable
Famous brand COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03725

IP65

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die-casting lighting fixture, powder coated.

Ceiling Recessed Installation

300-400mm cable with quick connector.

Famous brand COB LED CRI90 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03725-8	8W	400lm	62xH77mm	55mm	150mA


L03725-12	12W	600lm	84xH85mm	75mm	250mA

FEATURES

The spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source. available for a few different output beams. Specialized optical filters honeycomb can be ordered. Same appearance both Fixed and Adjustable . The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. Ø55 I Ø65 I Ø75mm available for 10°

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
8W 150mA 12W 250mA
