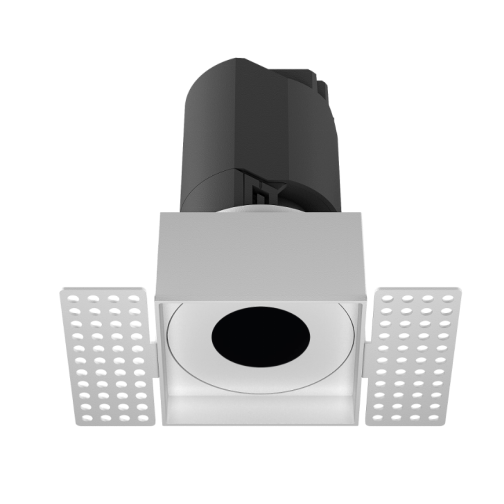

L06325 Spotlight    IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The spotlight offer uniform distribution . Visual comfort low glare optic with deeply recessed light source. UGR<13 .Specialized optical filters honeycomb can be ordered. The basic model comes in RAL9003 white color and RAL9005 black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Accurate viewing angle, Illuminated object is clear and recognizable. High level of visual comfort and good shape light area.

TECHICAL DATA

  • 536lm
  • Remote LED Driver
  • 300-400mm cable with quick connector.
  • Ceiling Recessed Installation
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • The lighting fixture is Fixed
  • Famous brand COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06325

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die-casting lighting fixture, powder coated.

Ceiling Recessed Installation

300-400mm cable with quick connector.

Famous brand COB LED CRI90 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L06325-12 12W 536lm
77x77xH112mm
77x77mm
300mA

FEATURES

The spotlight offer uniform distribution . Visual comfort low glare optic with deeply recessed light source. UGR<13 .Specialized optical filters honeycomb can be ordered. The basic model comes in RAL9003 white color and RAL9005 black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Accurate viewing angle, Illuminated object is clear and recognizable. High level of visual comfort and good shape light area.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
