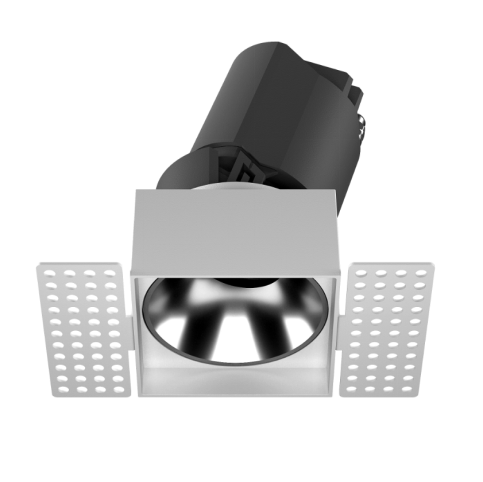

L06324 Spotlight IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The spotlight offer uniform distribution . Visual comfort low glare optic with deeply recessed light source. UGR<13 .Available for a few different output beams15° I 24° I 36° I 60°. Specialized optical filters honeycomb can be ordered. The basic model comes in RAL9003 white color and RAL9005 black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Accurate viewing angle, Illuminated object is clear and recognizable. High level of visual comfort and good shape light area. An ideal solution for wall washer, achieve a pleasing, clear and soft effect of the wall washing spot. High-quality mixing effect achieved too.

TECHICAL DATA

420-1200lm
Remote LED Driver
300-400mm cable with quick connector.
Ceiling Recessed Installation
DALI I Triac I 0/1-10V I Tunable white dimming
30°adjustable 355°rotation
Famous brand COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06324

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die-casting lighting fixture, powder coated.

Ceiling Recessed Installation

300-400mm cable with quick connector.

Famous brand COB LED CRI90 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L06324-7	7W	420lm	58x58xH88mm	58x58mm	150mA


L06324-12	12W	720lm	77x77xH112mm	77x77mm	300mA


L06324-20	20W	1200lm	97x97xH138mm	97x97mm	500mA

FEATURES

The spotlight offer uniform distribution . Visual comfort low glare optic with deeply recessed light source. UGR<13 .Available for a few different output beams15° I 24° I 36° I 60°. Specialized optical filters honeycomb can be ordered. The basic model comes in RAL9003 white color and RAL9005 black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Accurate viewing angle, Illuminated object is clear and recognizable. High level of visual comfort and good shape light area. An ideal solution for wall washer, achieve a pleasing, clear and soft effect of the wall washing spot. High-quality mixing effect achieved too.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
7W 150mA 12W 300mA 20W 500mA
