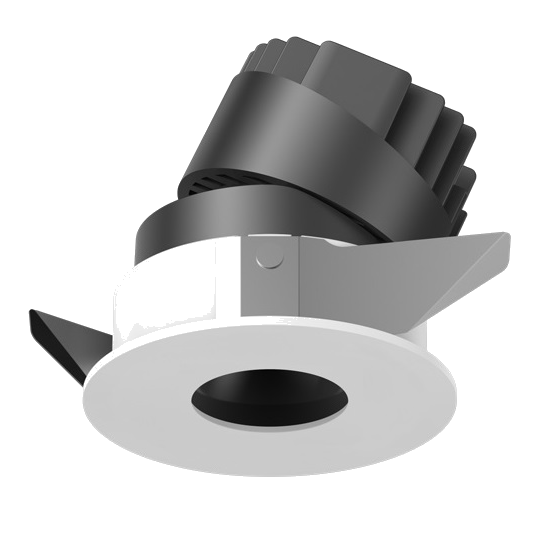

L06737 Spotlight    IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

Adjustable pinhole spotlight, visual comfort low glare optic. Uniform distribution. High quality LENES ,Available for a few different output beams 15/24/36/55°. soft light, Specialised optical filters honeycomb can be ordered. Steel spring for easy installation. The basic model comes in white(RAL9010) or black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 850-1050lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated. RAL9010
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI97 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06737

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 3SDCM CRI97

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

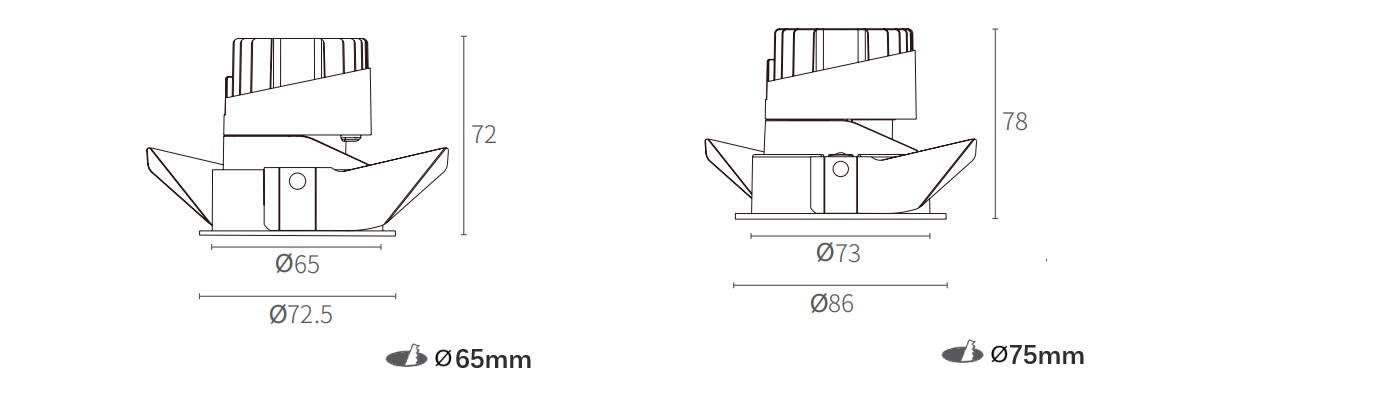

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L06737-10 10W 850lm
73xH73mm
65mm
250mA
L06737-12 12W 1050lm
86xH78mm
75mm
350mA

FEATURES

Adjustable pinhole spotlight, visual comfort low glare optic. Uniform distribution. High quality LENES ,Available for a few different output beams 15/24/36/55°. soft light, Specialised optical filters honeycomb can be ordered. Steel spring for easy installation. The basic model comes in white(RAL9010) or black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity. Remote LED driver version. High level of visual comfort. Dimmable. CRI97 3SDCM. Recessed installation.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
12W   350mA
