Ø150 I 35W

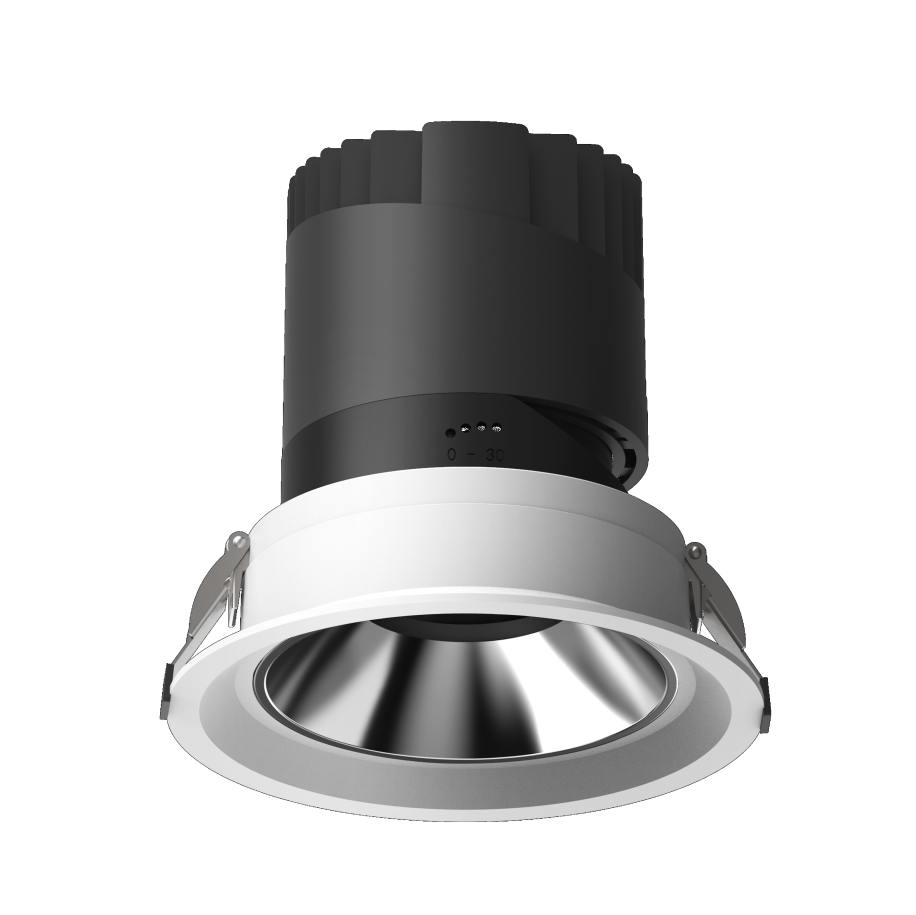

L03308 Spotlight    IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The fixing spotlight with slim trim, high power Max.35W. Uniform distribution . High quality metal reflector version low glare optic. available for a few different output beams 15/24/36/42/50(50° lens version). Specialised optical filters honeycomb or soft lens can be ordered. The decorative secondary optic available in multiple color finishing, Gold I Silver I Black I White I Chromed. The basic model comes in white(RAL9010) and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 2200-3150lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated. RAL9010
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V dimming
  • Ceiling, wall recessed.
  • COB LED CRI97 2SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03308

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

COB LED 2SDCM CRI97

Flicker Free, Remote LED Driver version.

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA

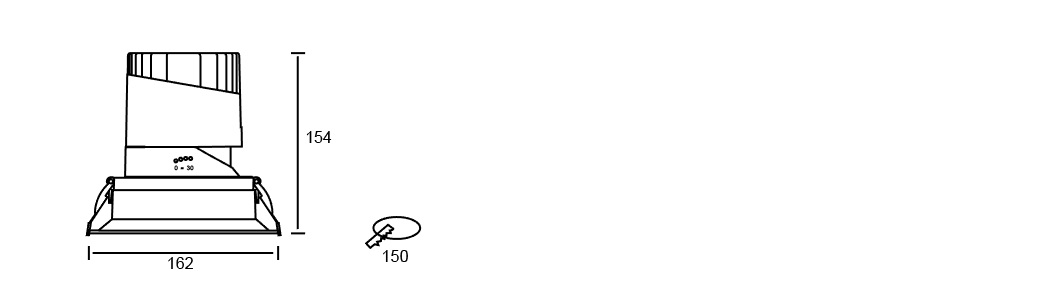

L03308-25 25W 2200lm
162xH154mm
150mm		 650mA
L03308-35 35W 3150lm
162xH154mm
150mm		 850mA

FEATURES

The fixing spotlight with slim trim, high power Max.35W. Uniform distribution . High quality metal reflector version low glare optic. available for a few different output beams 15/24/36/42/50(50° lens version). Specialised optical filters honeycomb or soft lens can be ordered. The decorative secondary optic available in multiple color finishing, Gold I Silver I Black I White I Chromed. The basic model comes in white(RAL9010) and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product. Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable. CRI97 3SDCM. Recessed installation.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
25W   650mA
35W   850mA

COB LED Chips I 2SDCM I CRI97 I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation One housing, multiple options, with different light distributions for a wide varirty of applications, The spot lights offer homogeneous and uniform light distribution. soft light. easy installations. deeply recessed light source. High Definition optical lenses in thermoplastic material. Specialised optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity.
