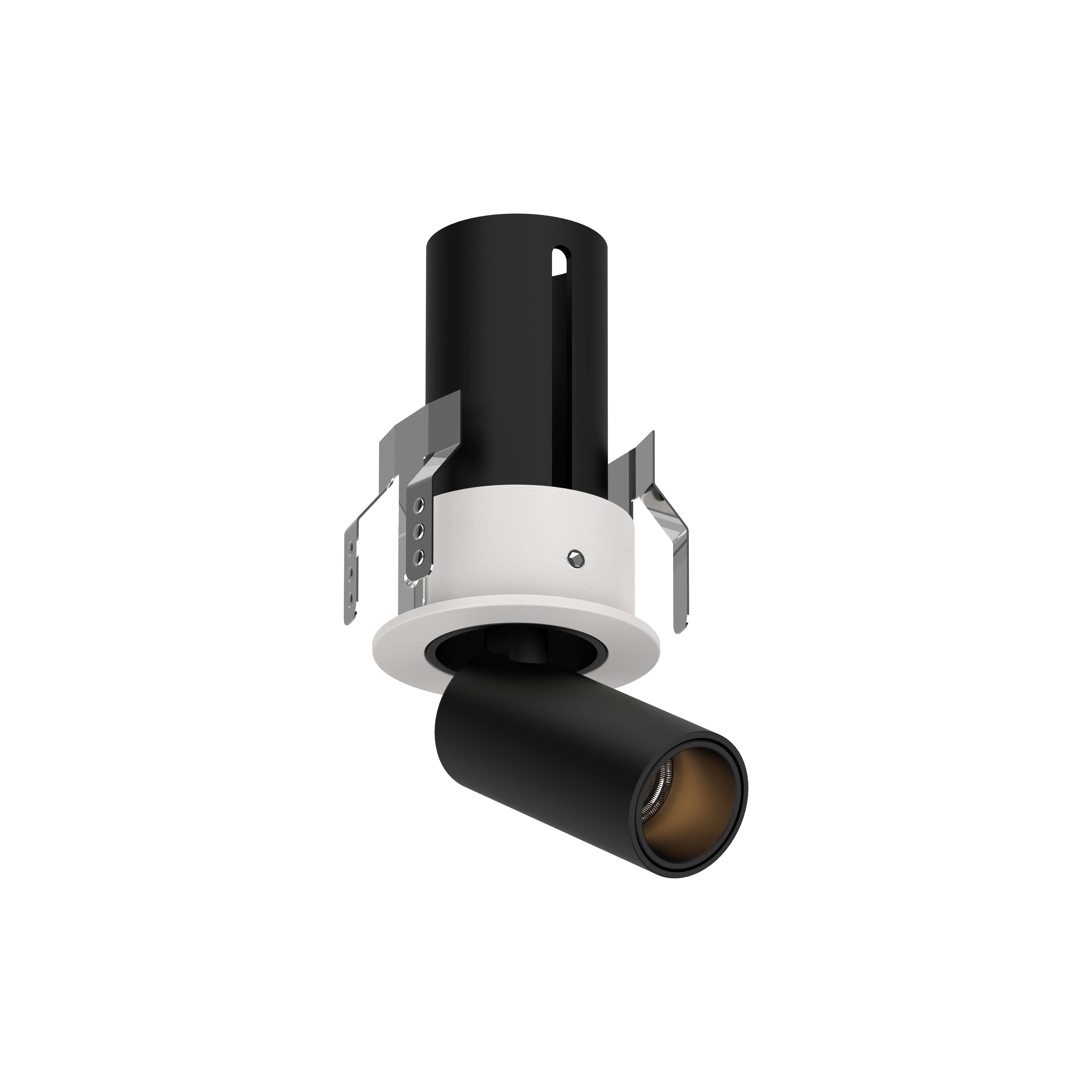

L03349 Spotlight IP40

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. 90°adjustable 355°rotation, pull-out.

Double adjustability， 90°adjustable 355°rotation and pull-out spotlight , Visual comfort low glare optic , recessed light source. available for three different output beams 15/24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

200lm
Remote LED Driver
Aluminium lighting fixture, powder coated.
Ceiling Recessed.
DALI I Triac I 0/1-10V I CASAMBI I DT8
300-400mm cable with quick connector.
COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03349

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

90°adjustable 355°rotation & pull-out

Ceiling Recessed.

Aluminium lighting fixture, powder coated.

COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

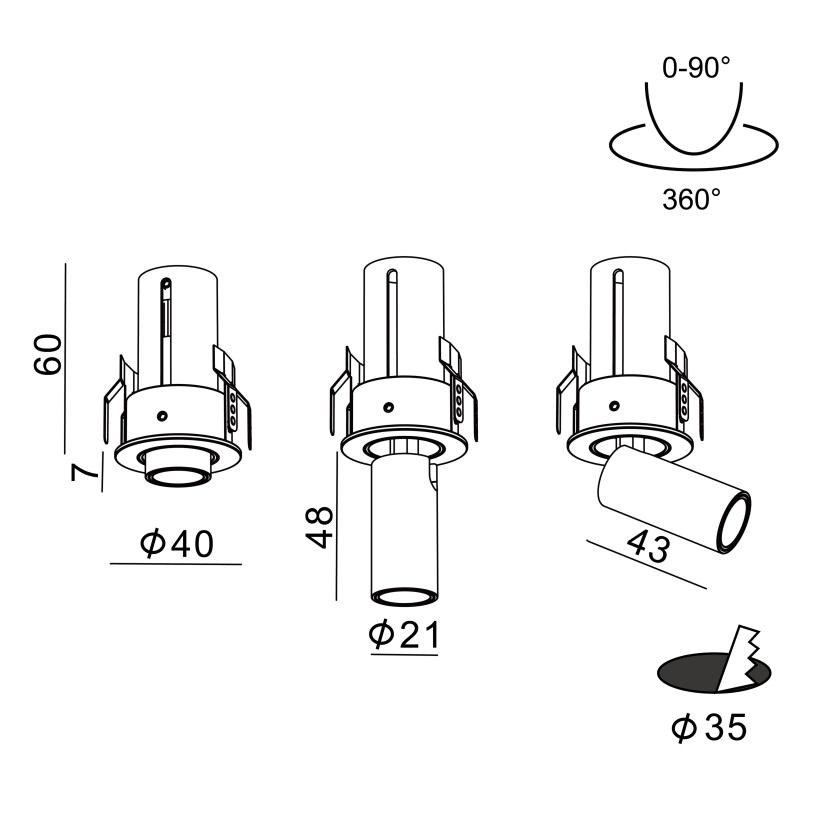

L03349-2	2W	200lm	40xH60mm	35mm	50mA

FEATURES

Double adjustability， 90°adjustable 355°rotation and pull-out spotlight , Visual comfort low glare optic , recessed light source. available for three different output beams 15/24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
2W 50mA
