160lm/W I 3600-6000lm

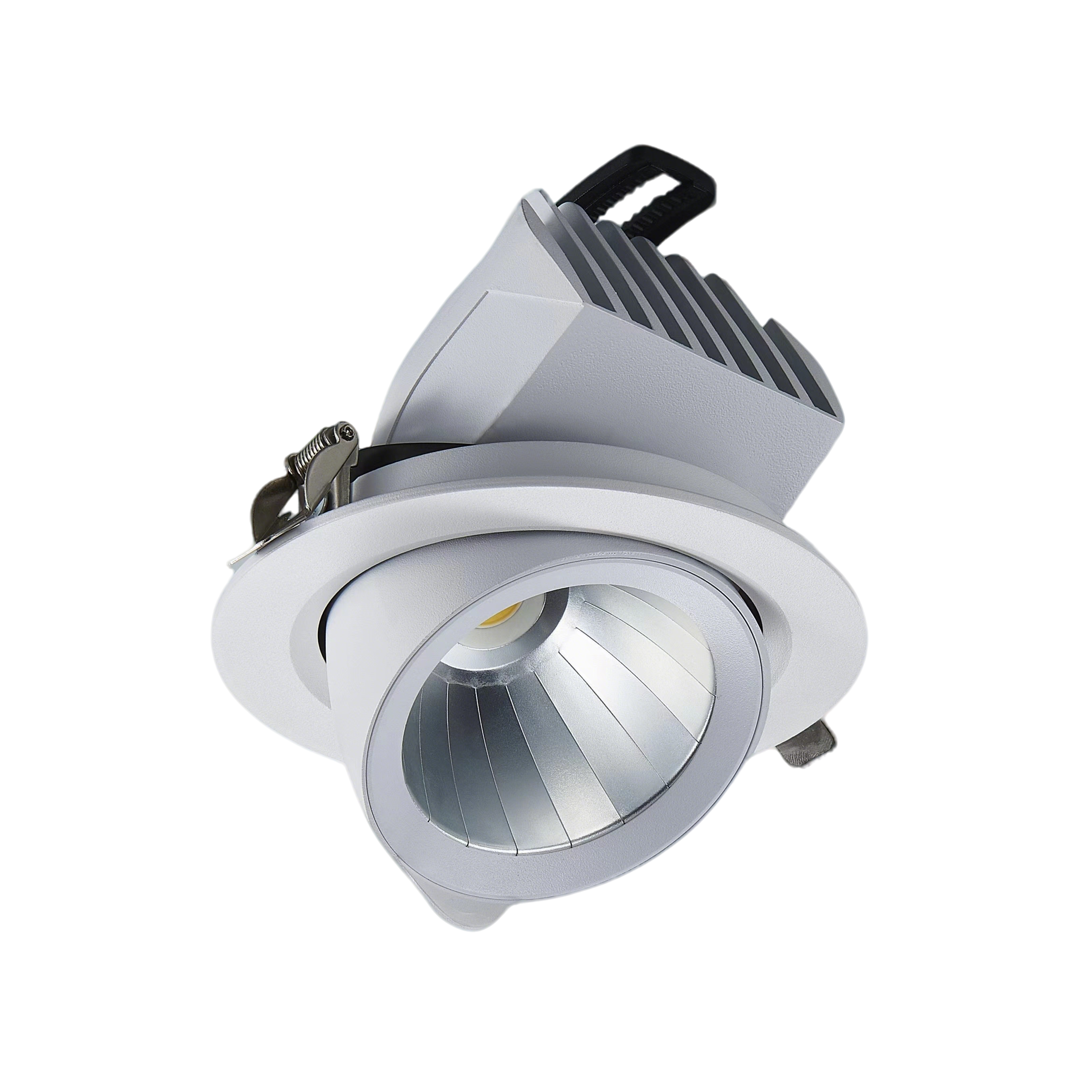

L02097 Spotlight    IP40

Aluminum die casting material and powder coating. Remote LED driver version. Metal baffle, double adjustability,45° vertical tilting and 355° horizontal rotation spotlight .

High Definition optical reflector, real High Efficiency Spotlight, uniform distribution. double adjustability,35° vertical tilting and 355° . available for two different output beams 24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be flexible and easy to handle. It is ideal for lighting architectural and artistic details up. Famous brand LED chips BRIDGELUX CRI90+ 3steps. Powerful REMOTE LED Driver, Smart lighting, achieved CASAMBI I DALI dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 3600-6000lm
  • Remote LED Driver
  • Aluminum die-casting lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI
  • 300-400mm cable with quick connector.
  • BRIDGELUX branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L02097

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

35° vertical tilting, 360° horizontal rotation

Ceiling Recessed

Aluminum die-casting lighting fixture, powder coated

Bridgelux branded COB LED CRI90+ 3SDCM

Flicker Free I High Efficiency Spotlight

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

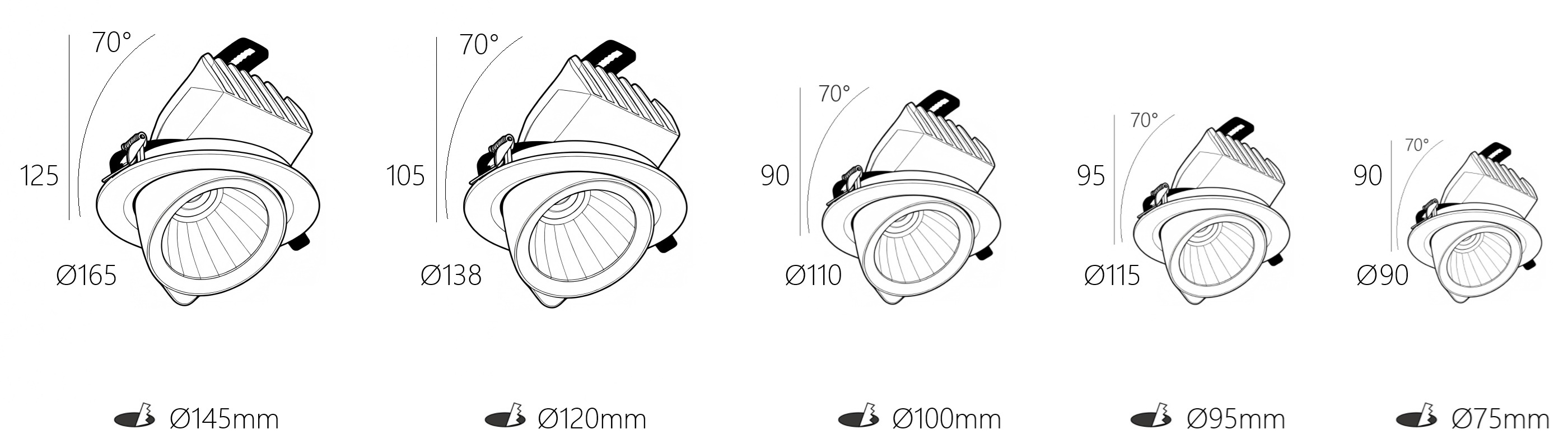

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L02097-24 24W 3600lm
90xH90mm
75mm
600mA
L02097-30 30W 4500lm
115xH95mm
95mm
750mA
L02097-25 25W 3700lm
110xH90mm
100mm
600mA
L02097-35 35W 5200lm
138xH105mm
120mm
850mA
L02097-40 40W 6000lm
165xH125mm
145mm
1000mA

FEATURES

High Definition optical reflector, real High Efficiency Spotlight, uniform distribution. double adjustability,35° vertical tilting and 355° . available for two different output beams 24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be flexible and easy to handle. It is ideal for lighting architectural and artistic details up. Famous brand LED chips BRIDGELUX CRI90+ 3steps. Powerful REMOTE LED Driver, Smart lighting, achieved CASAMBI I DALI dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
24W   600mA
30W   750mA
25W   600mA
35W   850mA
40W   1000mA
