Ø75 I Ø95 I Ø105

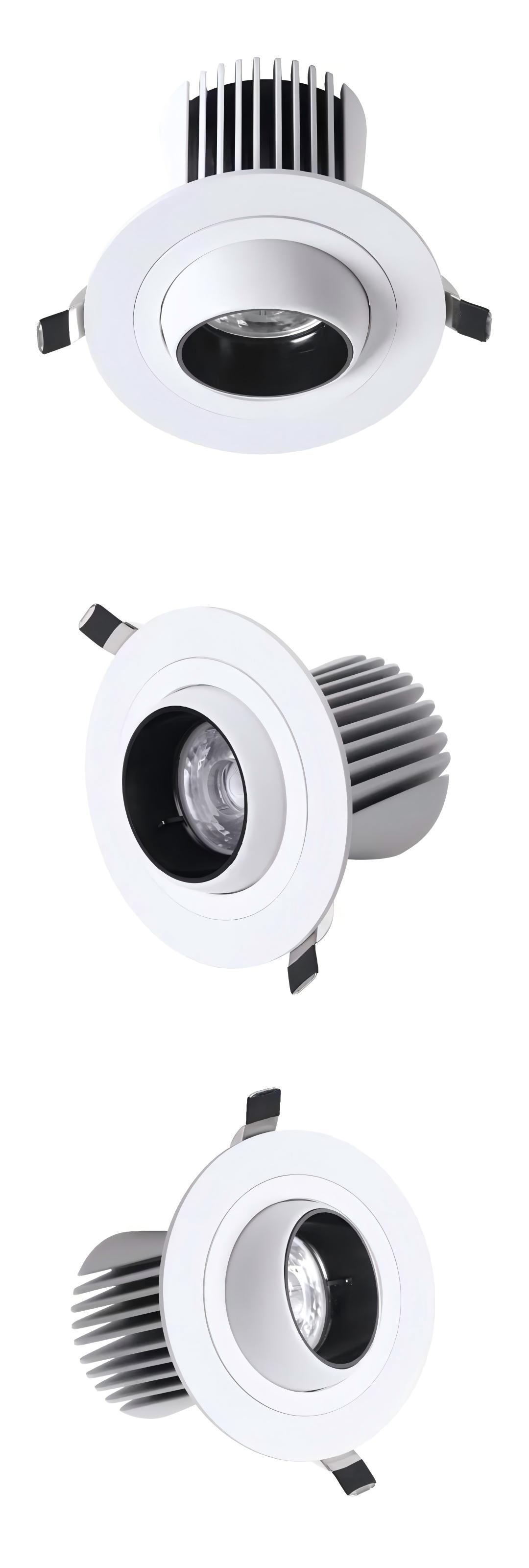

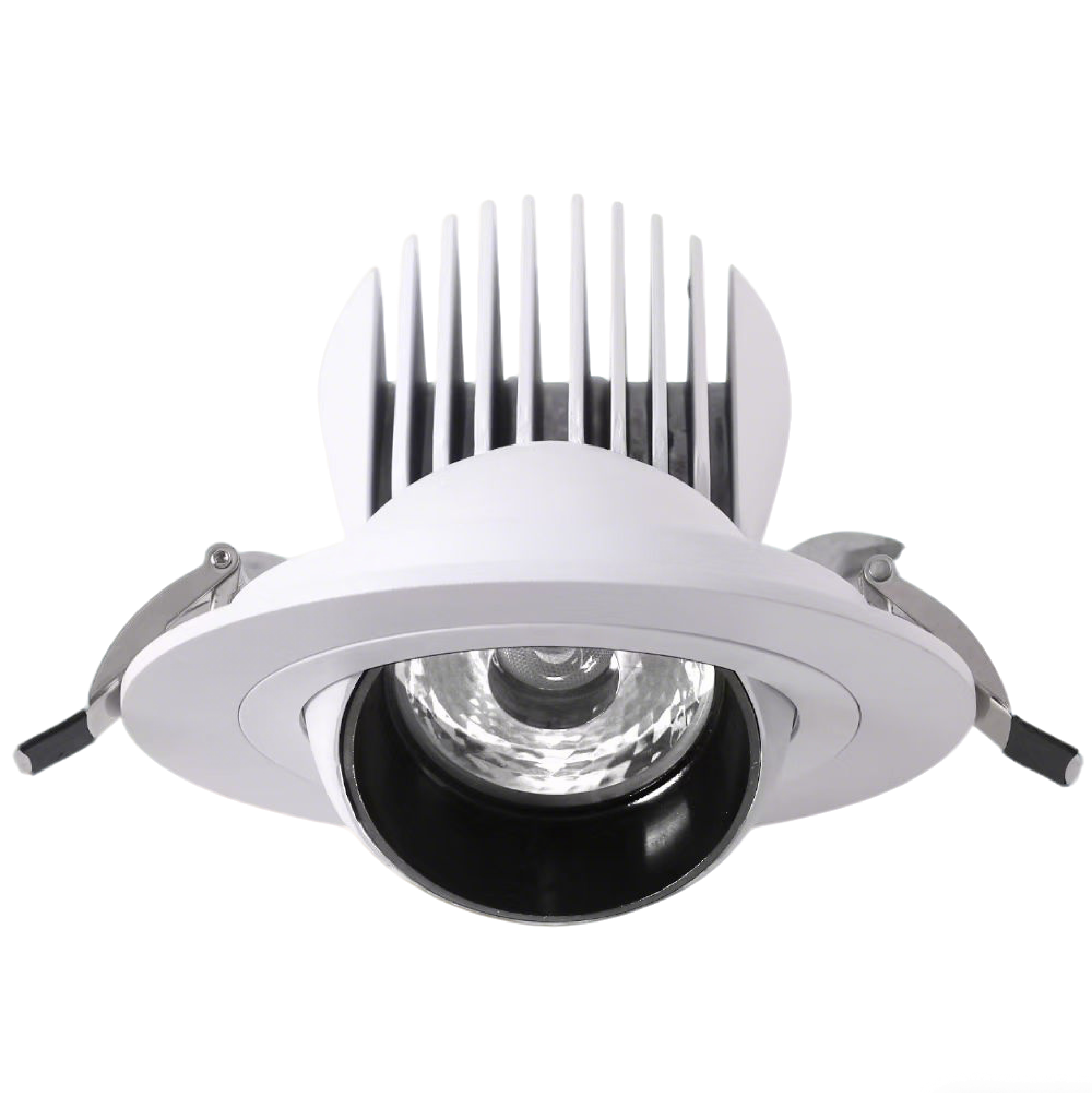

L03322 Spotlight    IP40

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. 40°adjustable 355°rotation.

Double adjustability,40° vertical tilting and 360° horizontal rotation ,Plastic material baffle. , Visual comfort low glare optic with recessed light source. available for three different output beams 15/24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle. It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 1000-2900lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated. Plastic material baffle.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • CREE branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03322

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

40° vertical tilting, 360° horizontal rotation

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated. Plastic baffle.

CREE branded COB LED CRI90+ 3SDCM

Flicker Free I Recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

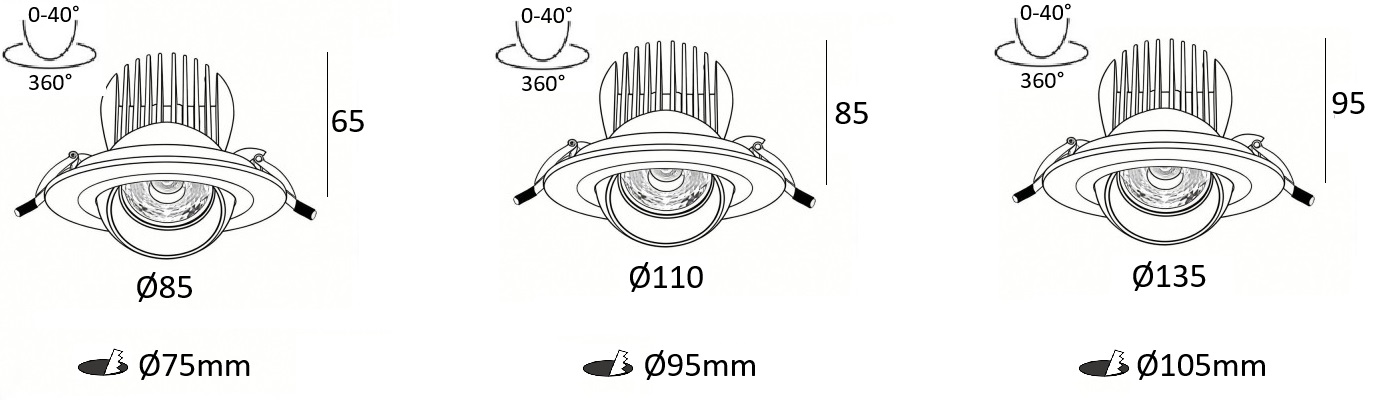

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03322-10 10W 1000lm
85xH65mm
75mm
250mA
L03322-18 18W 1800lm
110xH85mm
95mm
450mA
L03322-33 33W 2900lm
135xH95mm
105mm
850mA

FEATURES

Double adjustability,40° vertical tilting and 360° horizontal rotation ,Plastic material baffle. , Visual comfort low glare optic with recessed light source. available for three different output beams 15/24/36°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle. It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
18W   450mA
33W   850mA
