Ø30 I 24° I pinhole

L06765 Spotlight    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

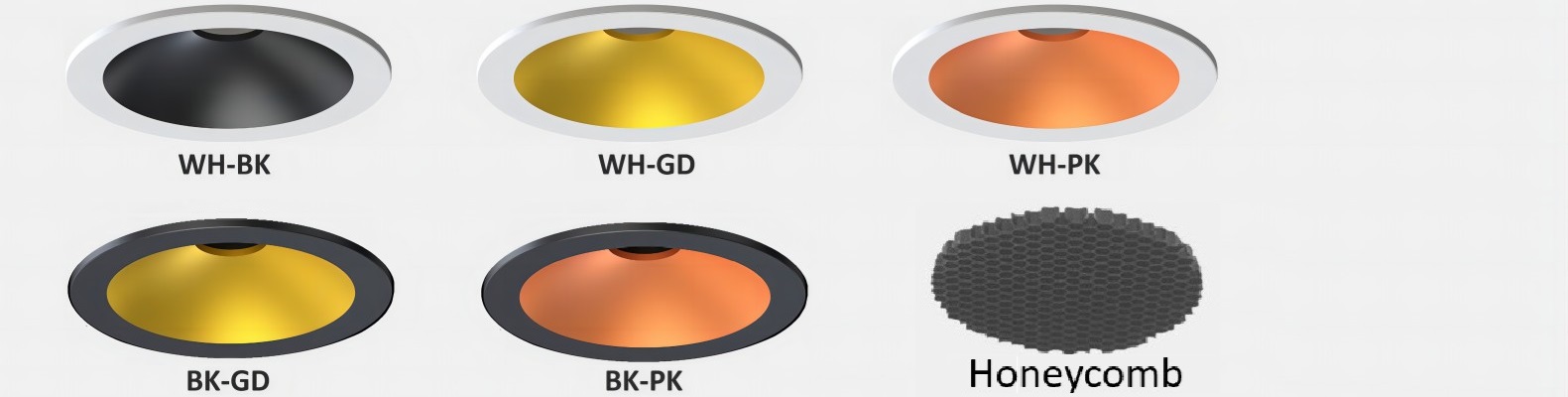

The fixing narrow trim pinhole spotlight offer uniform distribution . It's modular design. They comprise a LED light module and a metal mounting frame. Visual comfort low glare optic with recessed light source. output beams 24°. High Definition optical lenses in thermoplastic material, crossing lighting technology. Achieve a pleasing and clear I soft effect of the light spot. Specialized optical filters honeycomb can be ordered. 2SDCM to ensure color temperature consistency for the quality lighting. High level of cooling system to ensure the spotlight long lifetime. Excellent colour rendering with CRI90. Metal baffle is available in multiple color finishing, The basic model comes in Black I White I Pink I Gold colors. Customized color finishing, power changes are possible depending on the request and the quantity. Meanwhile, the spotlight matched DALI Dimming down to 0.1%. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. It is presented to its customers as a clean soft and non-dazzling product. please contact us for detailed informations

TECHICAL DATA

  • 350lm
  • Remote LED Driver
  • 300-400mm cable with quick connector.
  • Ceiling Recessed Installation
  • DALI I Triac I 0/1-10V I DTW dimming
  • Fixing Spotlight I Slim trim
  • COB LED CRI90 2SDCM

Product is Europe Standard & CE Certificate.

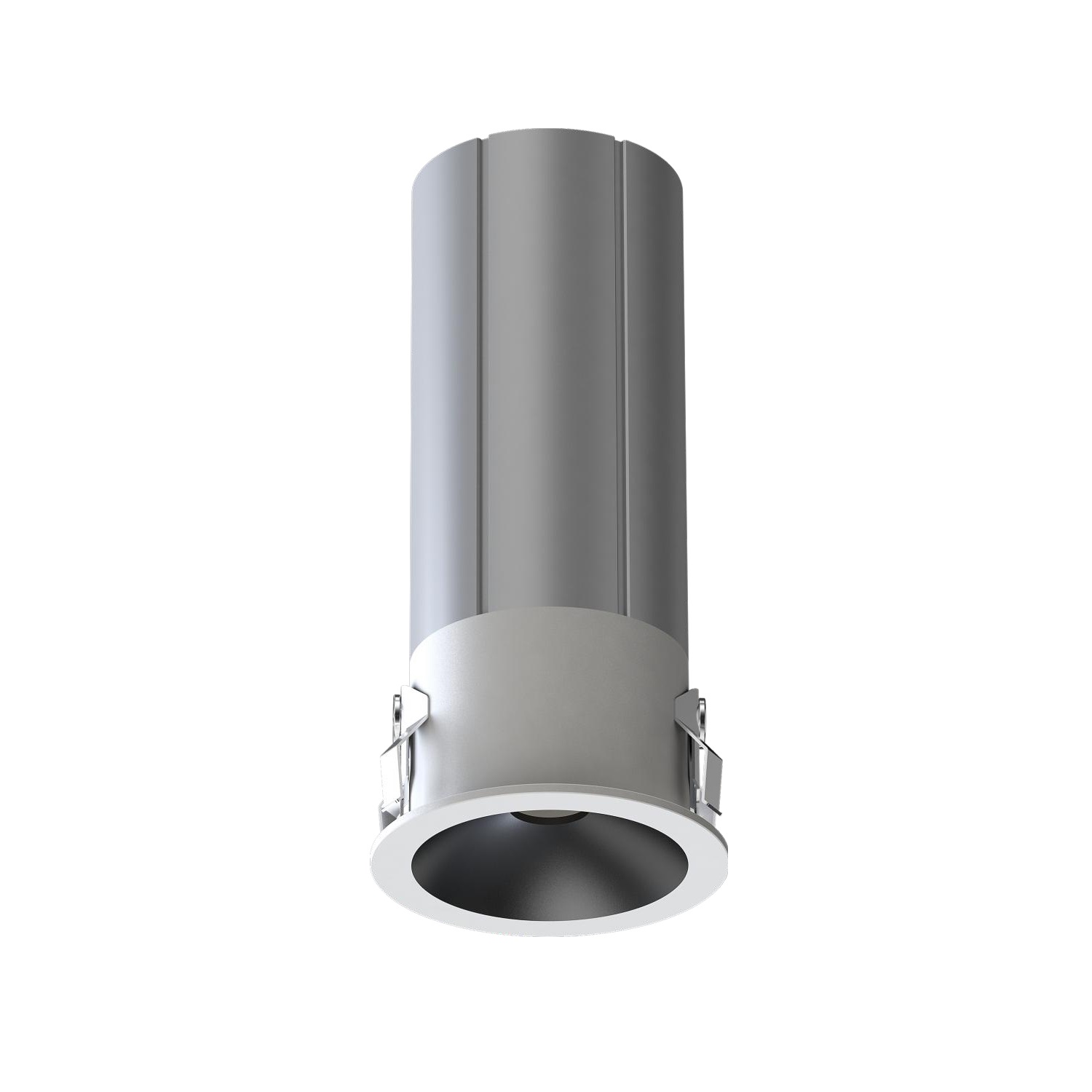

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06765

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium materials lighting fixture, powder coated.

Ceiling Recessed I Narrow Trim I Pinhole

300-400mm cable with quick connector.

CITIZEN COB LED CRI90 2SDCM

Flicker Free I Remote LED Driver version.

Recessed light source. Visual comfort

DALI I Triac I 0/1-10V dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

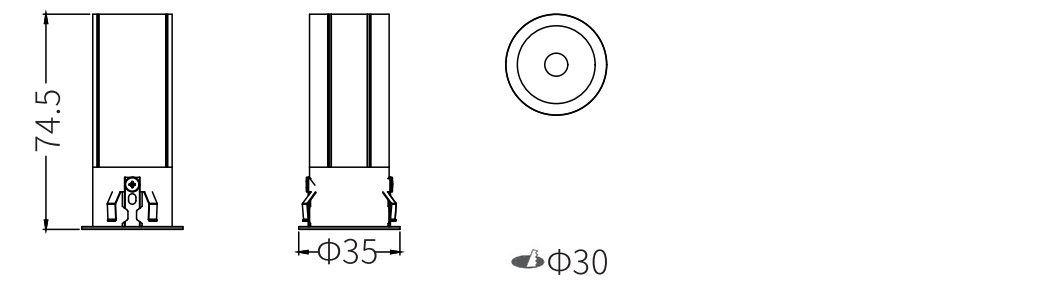

Dimension
mm
Cut Hole
mm
Power Supply
mA
L06765-5 5W 350lm
35xH75mm
30mm
120mA

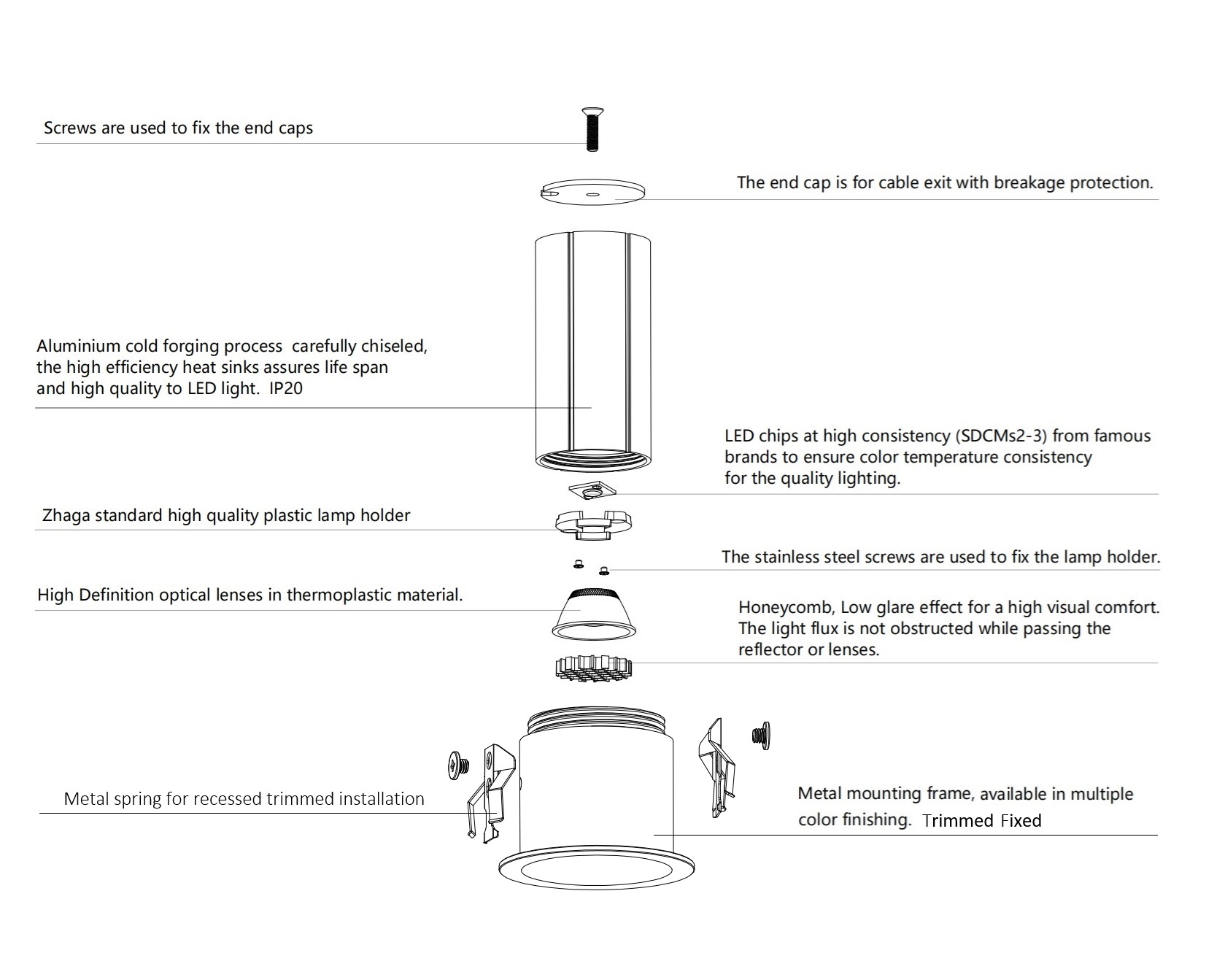

FEATURES

The fixing narrow trim pinhole spotlight offer uniform distribution . It's modular design. They comprise a LED light module and a metal mounting frame. Visual comfort low glare optic with recessed light source. output beams 24°. High Definition optical lenses in thermoplastic material, crossing lighting technology. Achieve a pleasing and clear I soft effect of the light spot. Specialized optical filters honeycomb can be ordered. 2SDCM to ensure color temperature consistency for the quality lighting. High level of cooling system to ensure the spotlight long lifetime. Excellent colour rendering with CRI90. Metal baffle is available in multiple color finishing, The basic model comes in Black I White I Pink I Gold colors. Customized color finishing, power changes are possible depending on the request and the quantity. Meanwhile, the spotlight matched DALI Dimming down to 0.1%. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. It is presented to its customers as a clean soft and non-dazzling product. please contact us for detailed informations

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   120mA
