Ø20 I Ø30 I Ø40

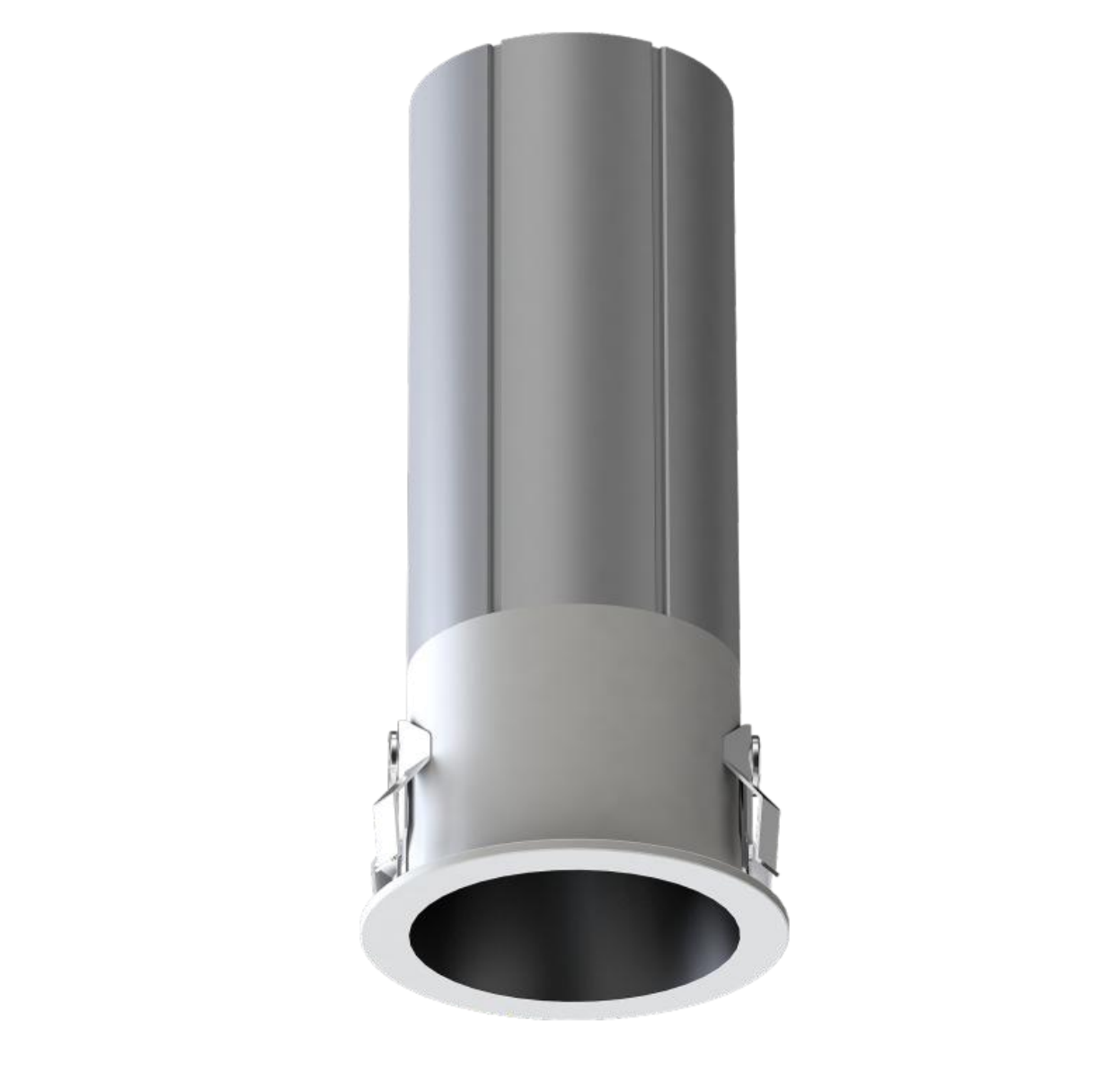

L06769 Spotlight    IP20

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The fixing spotlight offer uniform distribution . Visual comfort low glare optic with recessed light source. available for three different output beams 15/24/36°. The edge is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot. Metal baffle is available in multiple color finishing, Black I White I Pink I Gold. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with steel springs. Realize superior lighting space with a deep cut-off angle. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 350-800lm
  • Remote LED Driver
  • 300-400mm cable with quick connector.
  • Ceiling Recessed Installation
  • DALI I Triac I 0/1-10V I DTW dimming
  • Fixing Spotlight I Slim trim
  • COB LED CRI90 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L06769

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium materials lighting fixture, powder coated.

Ceiling Recessed I Slim trim I Fixed

300-400mm cable with quick connector.

COB LED CRI90 3SDCM

Flicker Free I Remote LED Driver version.

Deeply recessed light source. High level of visual comfort

DALI I Triac I 0/1-10V I DTW dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

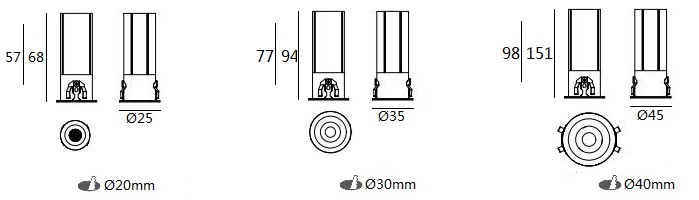

Dimension
mm
Cut Hole
mm
Power Supply
mA
L06769-5 5W 350lm
25xH68mm
20mm
120mA
L06769-6 6W 420lm
35xH94mm
30mm
150mA
L06769-10 10W 800lm
45xH151mm
40mm
250mA

FEATURES

The fixing spotlight offered uniform distribution . Visual comfort low glare optic with recessed light source. available for three different output beams 15/24/36°. The edge of light spot is cut off, the outline of the time spot range is clearly visible when washing the wall, and the interior is uniformly transitioned. Achieve a pleasing and soft effect of the wall washing spot.

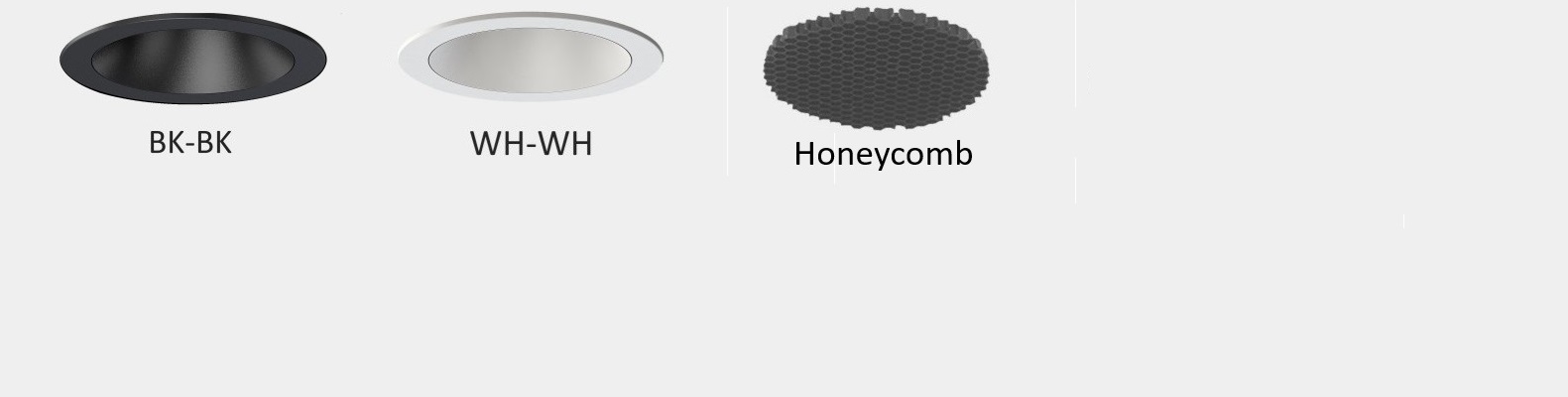

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   120mA
6W   150mA
10W   250mA
