2W

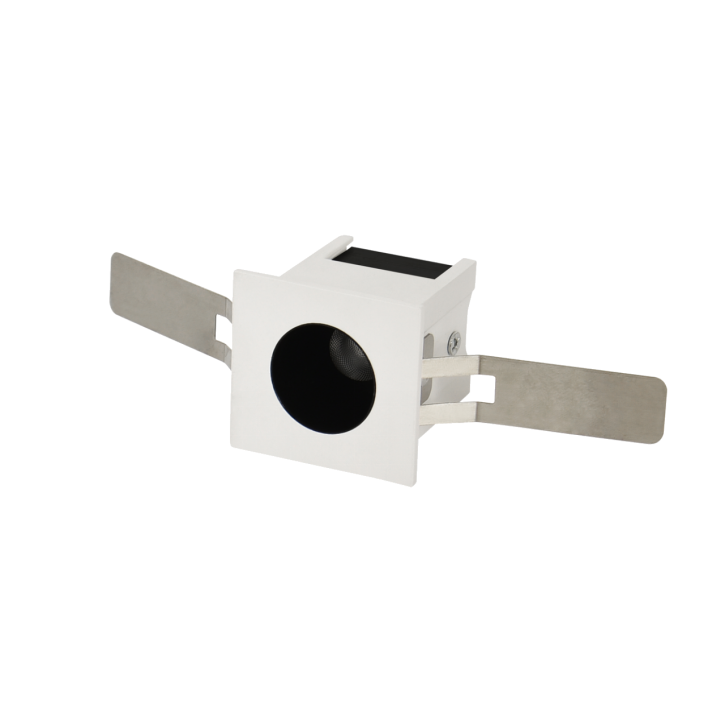

L03188 Spotlight    IP20

Spotlight, aluminium die-casting material and powder coating. -Remote LED driver version. Flicker-Free. Flat surface

Fixed spot, Flat surface, an ideal accent lighting in residential or commercial areas. They comprise a LED spotlight and ABS secondary reflector. Easy installations. Visual comfort low glare optic with deeply recessed light source. UGR<19. Uniform distribution. 1 I 2 I 3 I 5 I 10 LEDs, OSRAM high CRI 2W/LED Matt White or Matt Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

TECHICAL DATA

  • 150lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free High CRI Low glare
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • CEILING RECESSED
  • Famous brand LED chips High CRI Dimmable

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03188

IP20

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

40x35mm

Eyes friendly CE certificate RoHS standard

OSRAM branded SMD LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

UNIFORM DISTRIBUTION I EASY INSTALLATIONS

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03188-2 2W 150lm
43x40xH43mm
40x35mmmm		 600mA

FEATURES

Fixed spot, Flat surface, an ideal accent lighting in residential or commercial areas. They comprise a LED spotlight and ABS secondary reflector. Easy installations. Visual comfort low glare optic with deeply recessed light source. UGR<19. Uniform distribution. 1 I 2 I 3 I 5 I 10 LEDs, OSRAM high CRI 2W/LED Matt White or Matt Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
