4W

L03171 Spotlight    IP20

Spotlight, aluminium die-casting material and powder coating. -Remote LED driver version. Flicker-Free

Fixed spot, an ideal accent lighting in residential or commercial areas. They comprise a LED spotlight and ABS secondary reflector. Easy installations. Visual comfort low glare optic with deeply recessed light source. UGR<19. Uniform distribution. 2LEDs, OSRAM high CRI 2W/LED Matt White or Matt Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

TECHICAL DATA

  • 300lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free High CRI Low glare
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • CEILING RECESSED
  • Famous brand LED chips High CRI Dimmable

Product is Europe Standard & CE Certificate.


INTERIOR LED RECESSED DOWN SPOTLIGHT

L03171

IP20

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

60x35mm

Eyes friendly CE certificate RoHS standard

OSRAM branded SMD LED

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

UNIFORM DISTRIBUTION I EASY INSTALLATIONS

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03171-2 2x2W 300lm

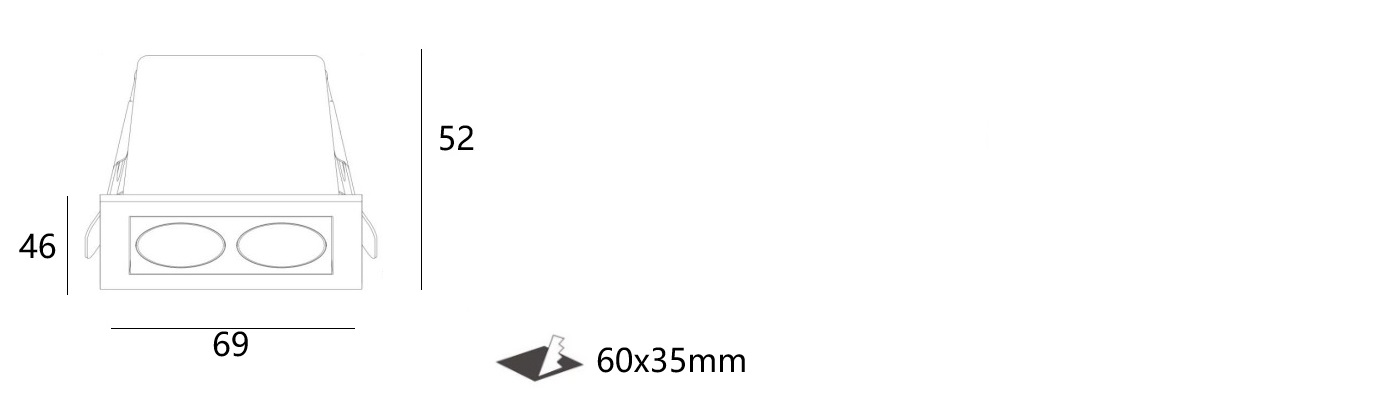

69x46xH52mm
60x35mm		 600mA

FEATURES

Fixed spot, an ideal accent lighting in residential or commercial areas. They comprise a LED spotlight and ABS secondary reflector. Easy installations. Visual comfort low glare optic with deeply recessed light source. UGR<19. Uniform distribution. 2LEDs, OSRAM high CRI 2W/LED Matt White or Matt Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity. Dimmable

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
