Ø160 I 18W

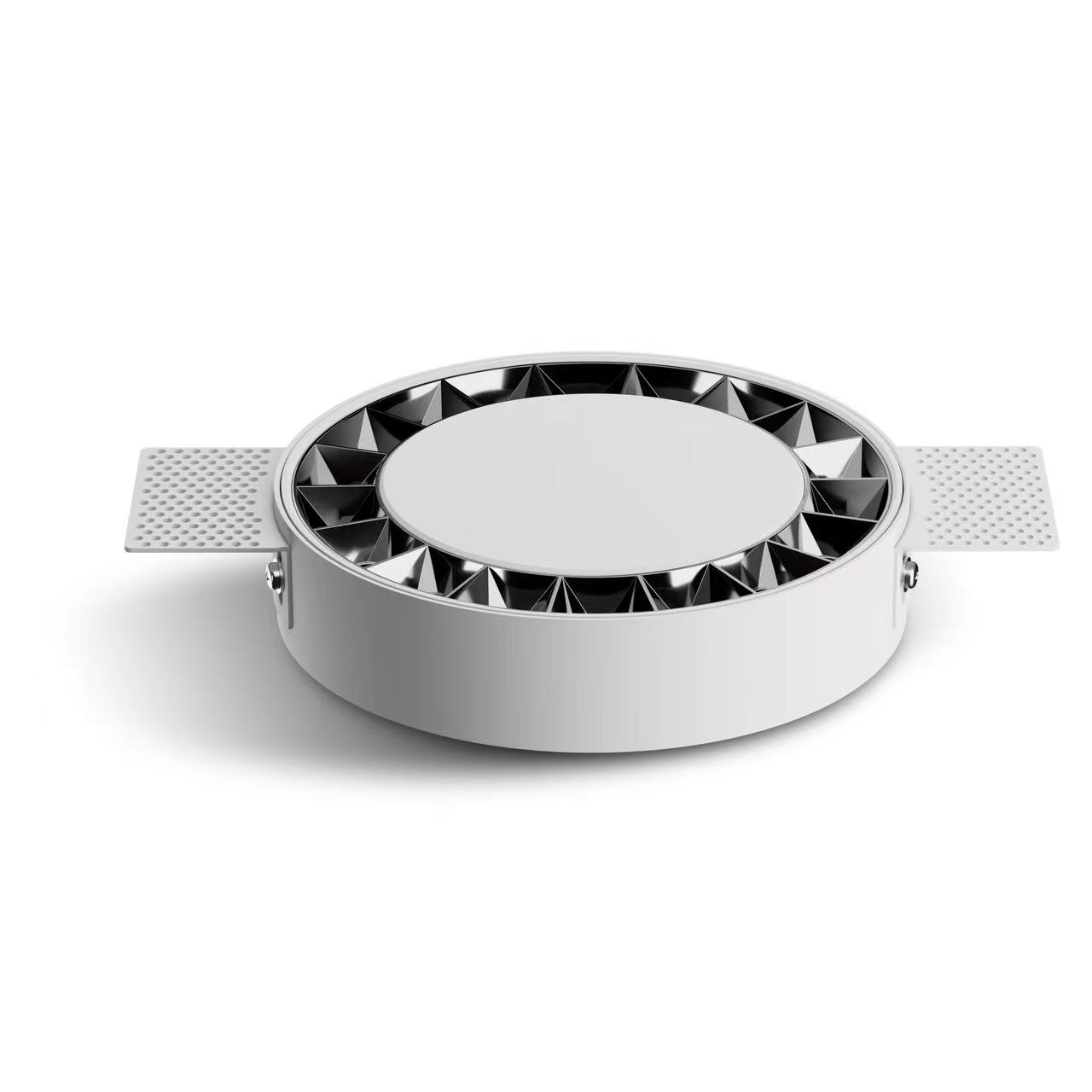

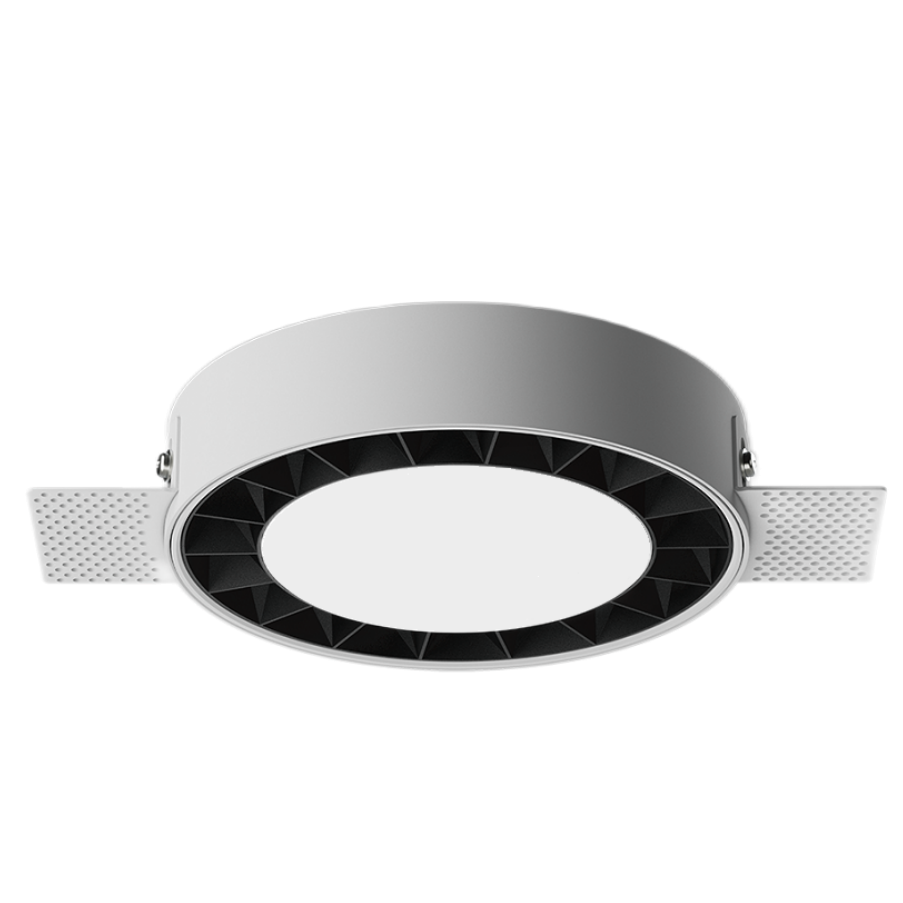

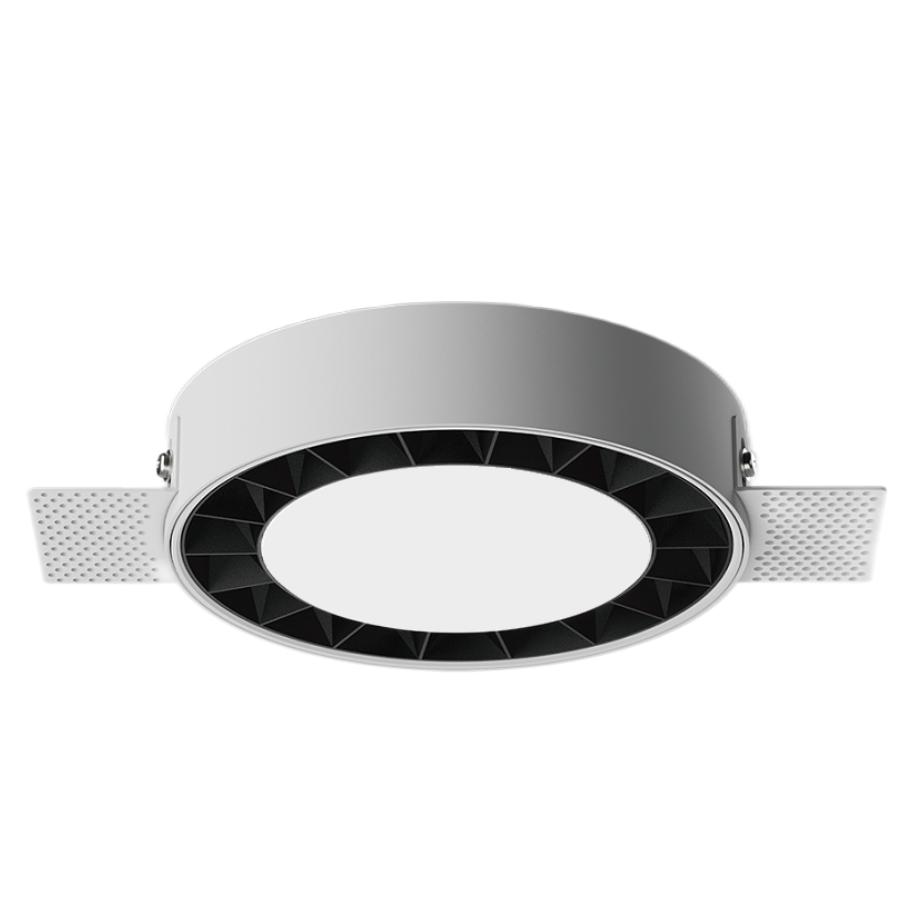

L07166 Spotlight    IP20

Trimless. spotlight, aluminium die-casting material and powder coating. -Romote LED driver version. Flicker-Free

An ideal accent lighting in residential or commercial areas. it comprise a LED spotlight module, a ABS baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. The effect of visible light and invisible fixture is achieved. UGR<19. High Definition optics. -Uniform distribution. Easy to take spot out from its frame. 18LEDs, OSRAM CRI90 1W/LED RAL9016 White I RAL9005 Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 950lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • DALI I Triac I 0/1-10V dimming
  • CEILING RECESSED
  • OSRAM branded LED chips CRI90+ Dimmable

Product is Europe Standard & CE Certificate.


INTERIOR LED RECESSED DOWN SPOTLIGHT

L07166

IP20

CLASS III

CEILING RECESSED

400-600mm cable with quick connector.

160mm

Eyes friendly CE certificate RoHS standard

CRI90+ OSRAM branded SMD

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

UNIFORM DISTRIBUTION.

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L07166-18 18x1W 950lm

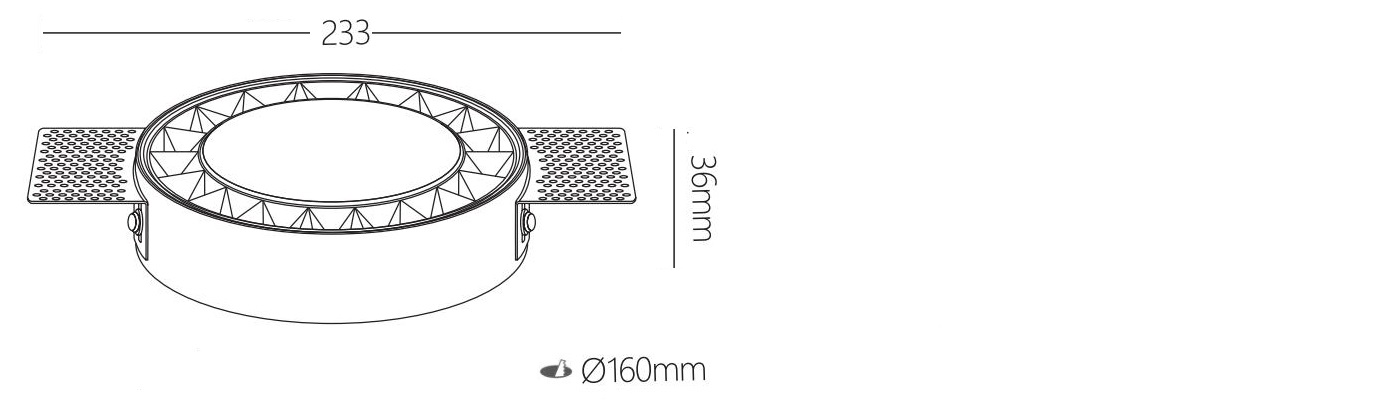

233xH36mm
160mm		 600mA

FEATURES

Fixed spot, An ideal accent lighting in residential or commercial areas. it comprise a LED spotlight module, a ABS baffle and a metal mounting frame. One housing, multiple options, with different light distributions for a wide varirty of applications. Easy installations. Visual comfort low glare optic with recessed light source. The effect of visible light and invisible fixture is achieved. UGR<19. High Definition optics. -Uniform distribution. Easy to take spot out from its frame. 18LEDs, OSRAM CRI90 1W/LED RAL9016 White I RAL9005 Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
1W   600mA
