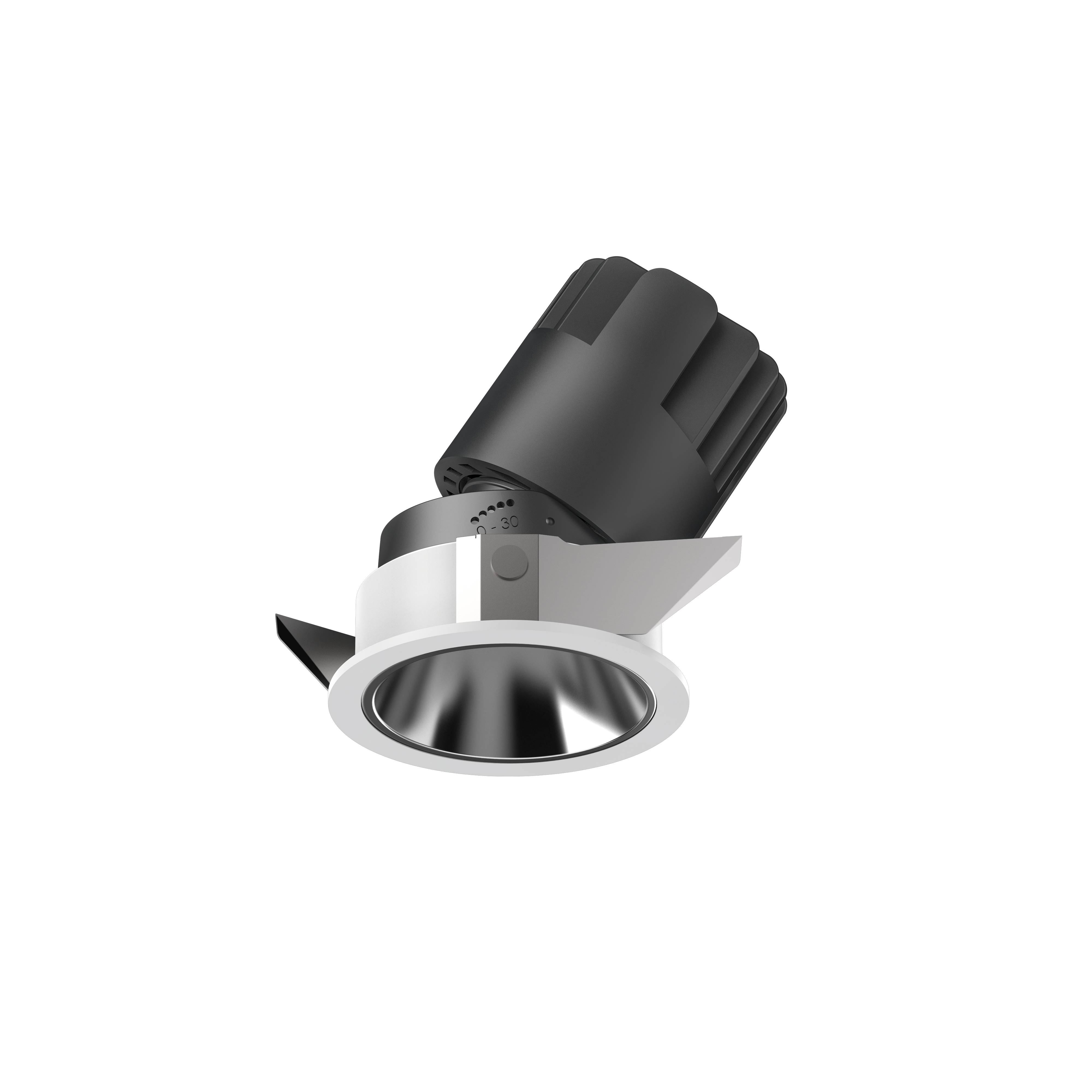

L03302 Spotlight IP20

Aluminium die casting material and powder coating. Remote LED driver version. High level of visual comfort. Dimmable.

The spotlight is 25° adjustable with slim trim, visual comfort low glare optic with recessed light source. Uniform distribution and soft light. High quality LENES optical, available for four different output beams 15/24/36/55. Specialised optics soft lens or honeycomb can be ordered. steel spring for easy installation. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

360lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated. RAL9010
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed.
COB LED CRI97 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03302

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CITIZEN COB LED 3SDCM

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source. High level of visual comfort

0/1-10V I Triac I DALI Tunable white dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

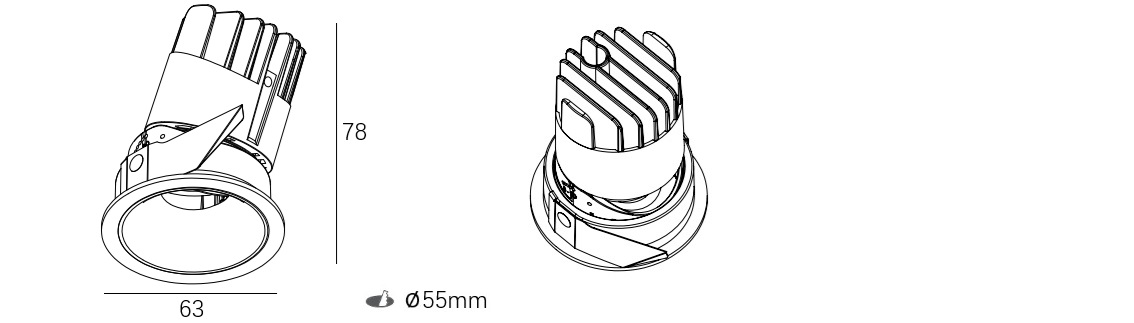

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03302-8	8W	360lm	63xH78mm	55mm	200mA

FEATURES

CITIZEN COB LED Chips I 3SDCM I CRI97 I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify and reinvent the classiceasy installation Luminaires in this line have family design. fixed or adjustable, trim or trimless, single or double head, round and square. One housing, multiple options, with different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spot lights offer homogeneous and uniform light distribution. soft light. easy installations. deeply recessed light source. High Definition optical lenses in thermoplastic material. Specialised optics and optical filters can be ordered. 5years warranty. Flicker-Free. Dimmable. Customized color finishing, power changes are possible depending on the request and the quantity.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
8W 200mA

Data Sheet
