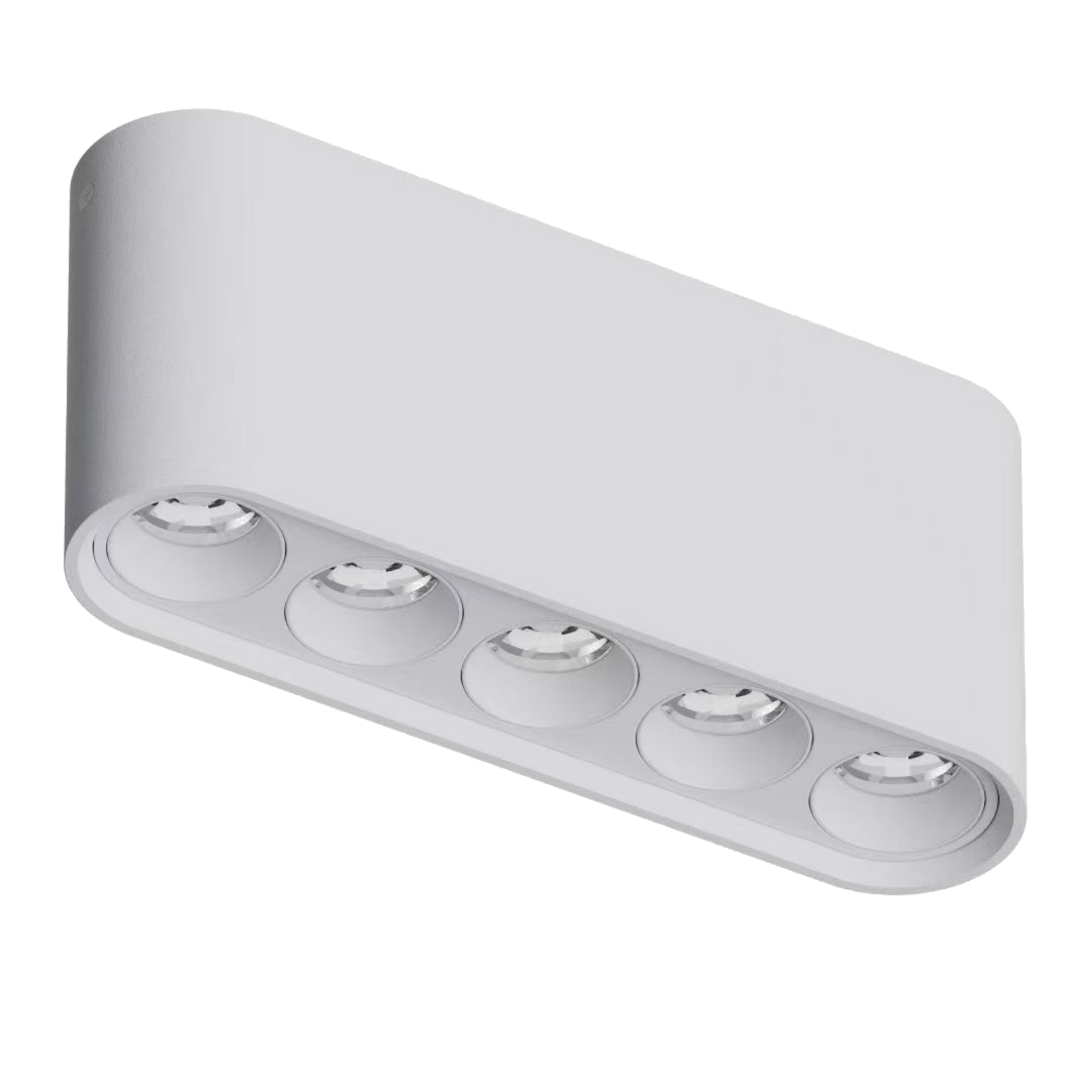

10W ceiling mounted

L03315 Spotlight    IP20

Surface mounted spotlight, aluminium die-casting material and powder coating. -built-in LED driver version. Flicker-Free

An ideal accent lighting in residential or commercial areas. Visual comfort low glare optic with recessed light source. UGR<19 Opti diamond models providing a truly unique perceptive performance. thanks to its innovative Opti diamond. It meets the strictest standards in terms of visual comfort for every project. Ceiling Mounted installations. Uniform distribution. 5LEDs, White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

  • 1000lm
  • Built-in LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<19
  • CASAMBI I DALI I Triac I 0/1-10V dimming
  • CEILING MOUNTED
  • Famous brand LED chips CRI90+

Product is Europe Standard & CE Certificate.

INTERIOR LED CEILING MOUNTED DOWN SPOTLIGHT

L03315

IP20

CLASS III

CEILING MOUNTED

400-600mm cable with quick connector.

Aluminium die-casting material and powder coating.

Eyes friendly CE certificate RoHS standard

CRI90+ Famous brand SMD

Triac I 0/1-10V I DALI dimmable

Tunable White dimming

Warranty 5 Years

UNIFORM DISTRIBUTION.

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03315-10 5x2W 1000lm

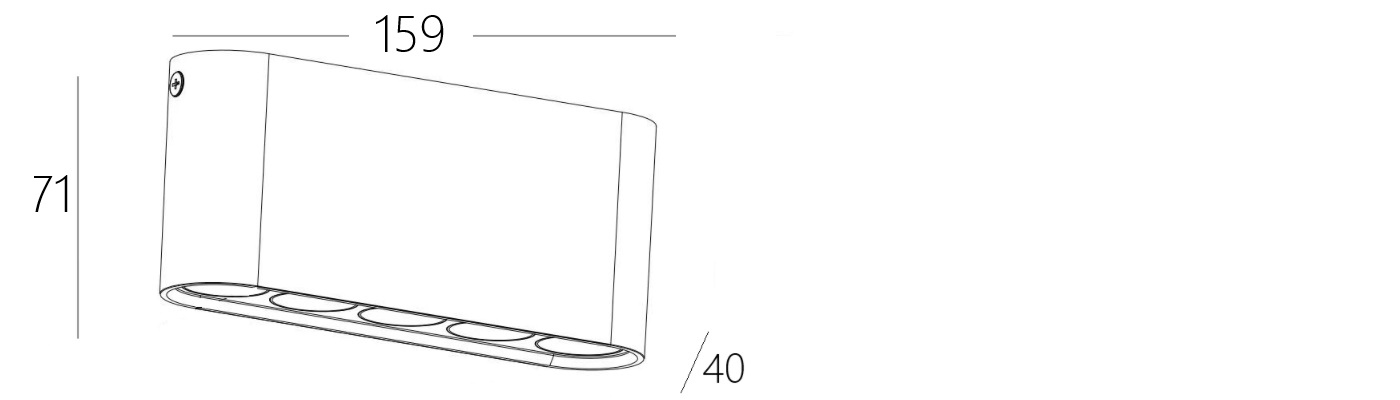

40x159xH71mm
mm		 600mA

FEATURES

An ideal accent lighting in residential or commercial areas. Visual comfort low glare optic with recessed light source. UGR<19 Opti diamond models providing a truly unique perceptive performance. thanks to its innovative Opti diamond. It meets the strictest standards in terms of visual comfort for every project. Ceiling Mounted installations. Uniform distribution. 5LEDs, White I Black color finishing as standard. Customized color finishing, power changes are possible depending on the request and the quantity.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
2W   600mA
