120lm/W Energy savings

L03284 General Lighting    IP65

Aluminium die-casting material and powder coating. Built-in LED Driver version. High level of visual comfort. Dimmable. CRI>90

Fixing SMD surface mounted downlight for general lighting, recessed light source. Uniform distribution. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Built-in LED Driver version I Die casting aluminium housing, powder coated. optical 55° I Easy installation,  suitable for ceiling mounted or pendant installations. I Standard color finishing: Matt white color I   Matt black color I Customized color finishing, power changes are possible depending on the request and the quantity. I It is presented to its customers as a clean and non-dazzling product. IP65. Energy savings

TECHICAL DATA

  • 1053-4853lm
  • Built-in LED Driver
  • Aluminium die-casting lighting fixture, powder coated. PC diffuser
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V dimming
  • Ceiling Mounted
  • LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

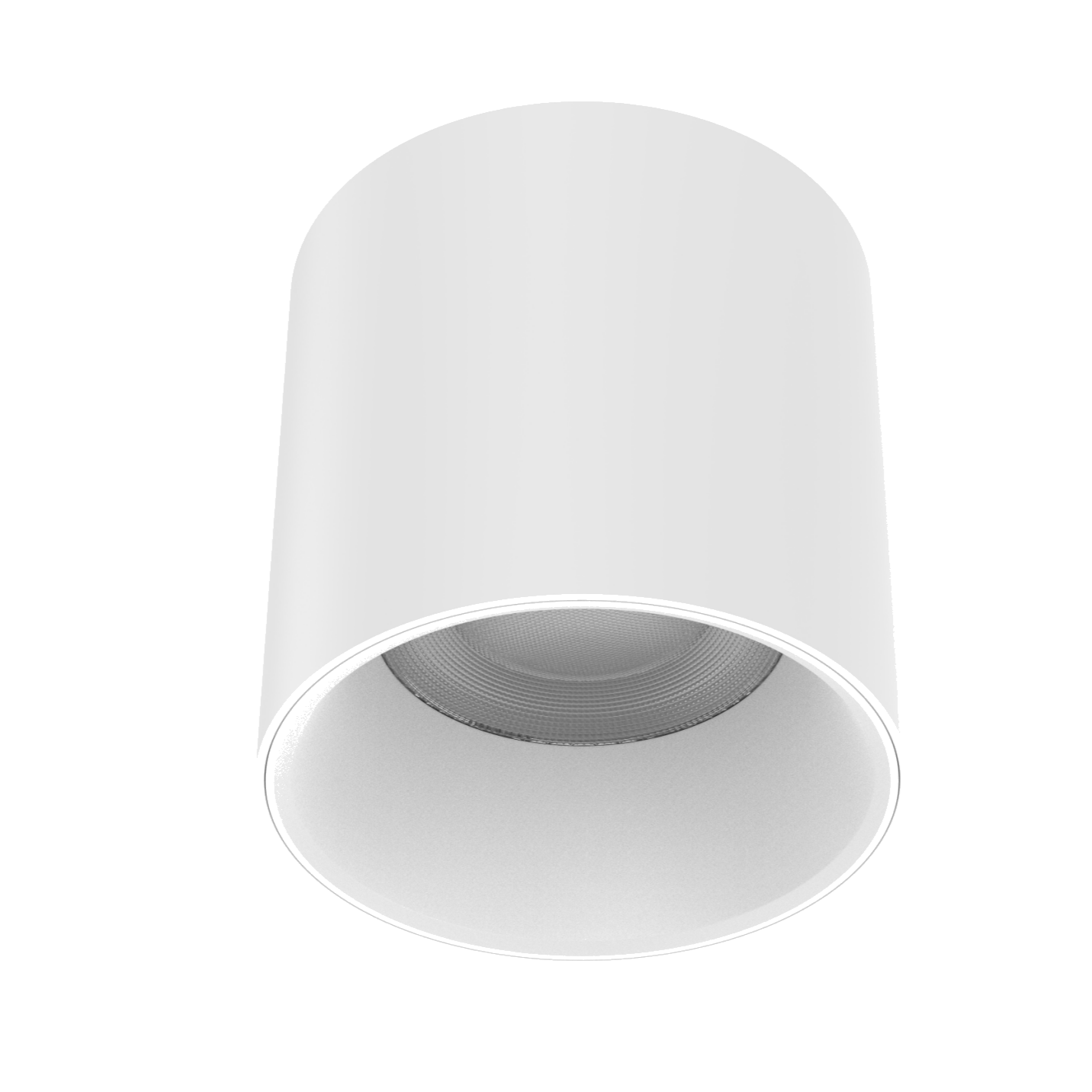

INTERIOR LED SURFACE MOUNTED DOWNLIGHT

L03284

IP65

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling mounted I Pendant

400-600mm cable with quick connector

Famous brand LED Chips 3SDCM

Flicker Free, Built-in LED Driver version.

Recessed light source. Visual comfort

0/1-10V I Triac I DALI dimming

VISUAL COMFORT AND HIGH EFFICIENCY

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03284-15 8.5W 1053lm
80xH90mm
mm		 250mA
L03284-20 15W 1688lm
100xH100mm
mm		 350mA
L03284-30 19W 2123lm
130xH130mm
mm		 450mA
L03284-40 28W 3272lm
150xH140mm
mm		 700mA
L03284-50 38W 4853lm
170xH160mm
mm		 900mA

FEATURES

Fixing SMD surface mounted downlight for general lighting, recessed light source. Uniform distribution. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. Built-in LED Driver version I Die casting aluminium housing, powder coated. optical 55° I Easy installation,  suitable for ceiling mounted or pendant installations. I Standard color finishing: Matt white color I   Matt black color I Customized color finishing, power changes are possible depending on the request and the quantity. I It is presented to its customers as a clean and non-dazzling product. IP65, Energy savings

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
8.5W   250mA
15W   350mA
19W   450mA
28W   700mA
38W   900mA
