120lm/W

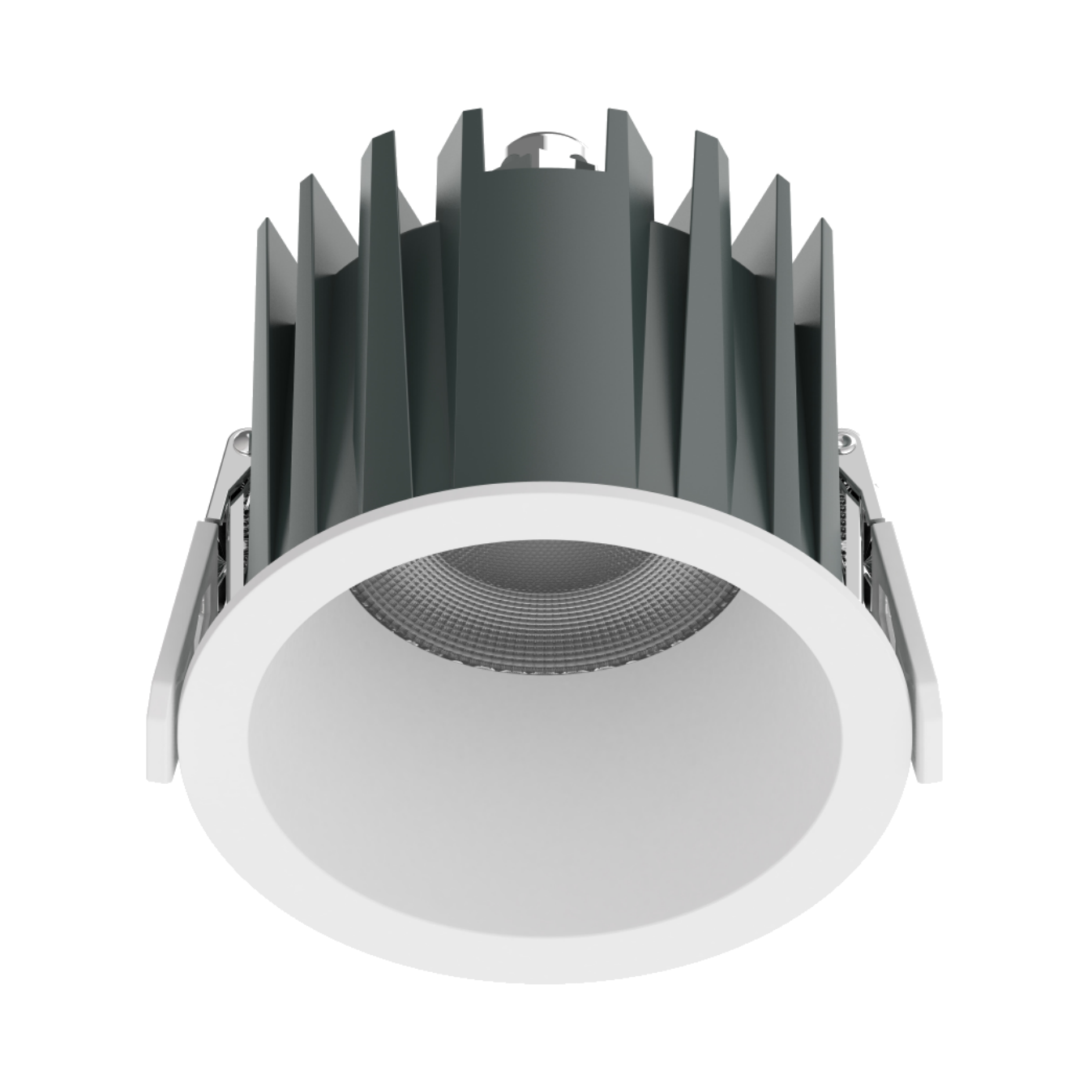

L03282 Spotlight    IP54

Aluminium die casting heat-sink, powder coating. Remote LED driver version. Deep cut-off angle

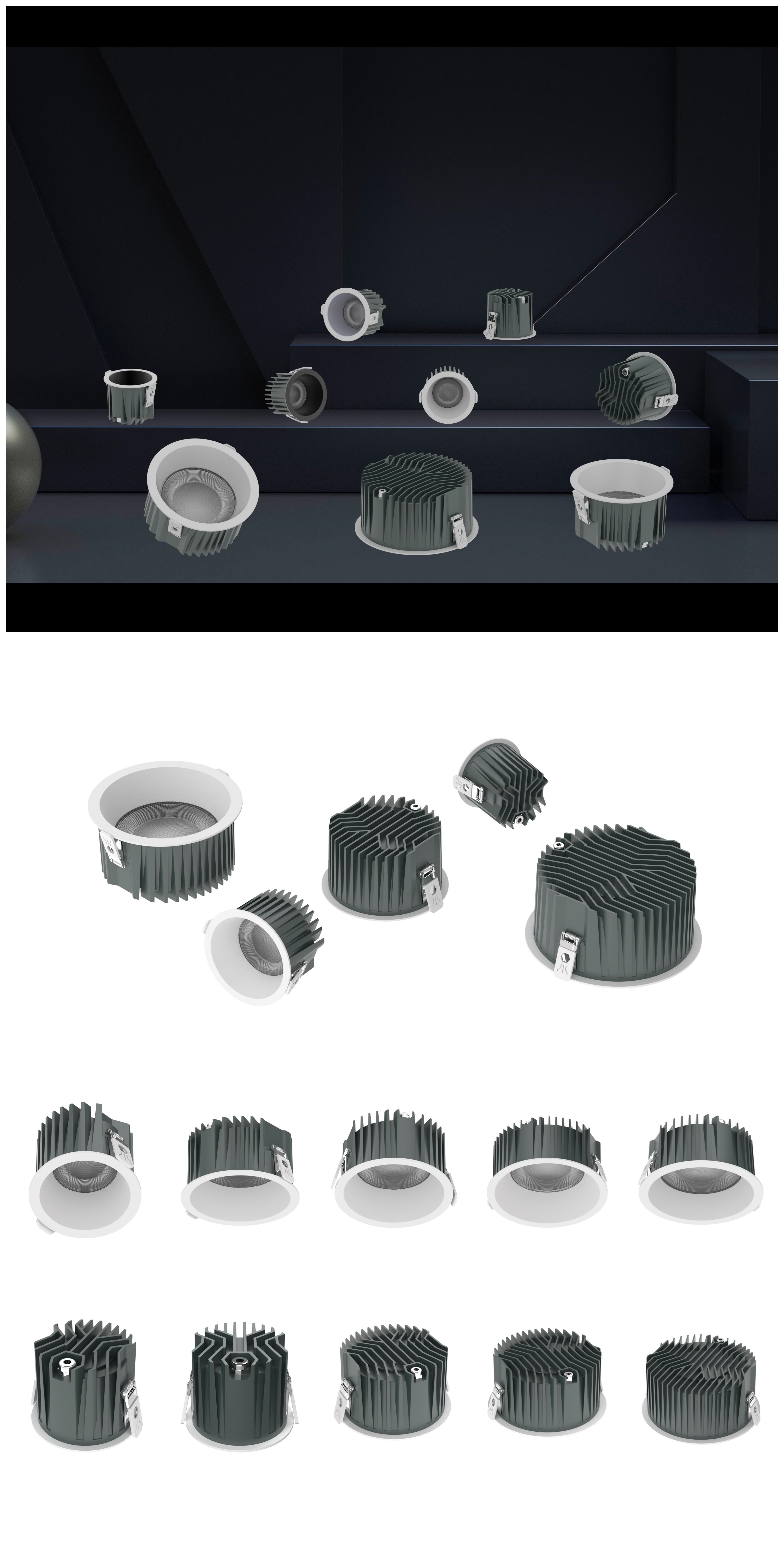

Fixed spotlight narrow trim, visual comfort，recessed light source. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle is available in multiple color finishing, Matt I Black I White I Gold.

TECHICAL DATA

  • 1053-4853lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • 300-400mm cable with quick connector.
  • DALI I Triac I 0/1-10V I DTW dimming
  • Ceiling, wall recessed.
  • SMD LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWNLIGHT

L03282

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Recessed light source , eyes friendly

0/1-10V I Triac I DALI Tunable white dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03282-10 8.5W 1053lm
83xH65mm
75mm		 250mA
L03282-15 15W 1688lm
103xH70mm
95mm		 350mA
L03282-20 19W 2123lm
132xH75mm
120mm		 450mA
L03282-30 28W 3272lm
160xH80mm
145mm		 700mA
L03282-40 38W 4853lm
180xH85mm
165mm		 900mA

FEATURES

Fixed spotlight narrow trim, visual comfort，recessed light source. One housing achieved multiple options and different light distributions for a wide varirty of applications, the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle is available in multiple color finishing, Matt I Black I White I Gold.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
8.5W   250mA
15W   350mA
19W   450mA
28W   700mA
38W   900mA
