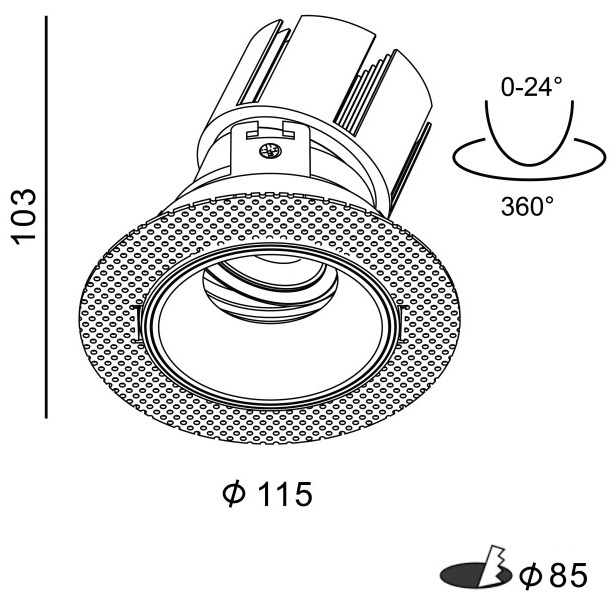

Ø85 I Ø65

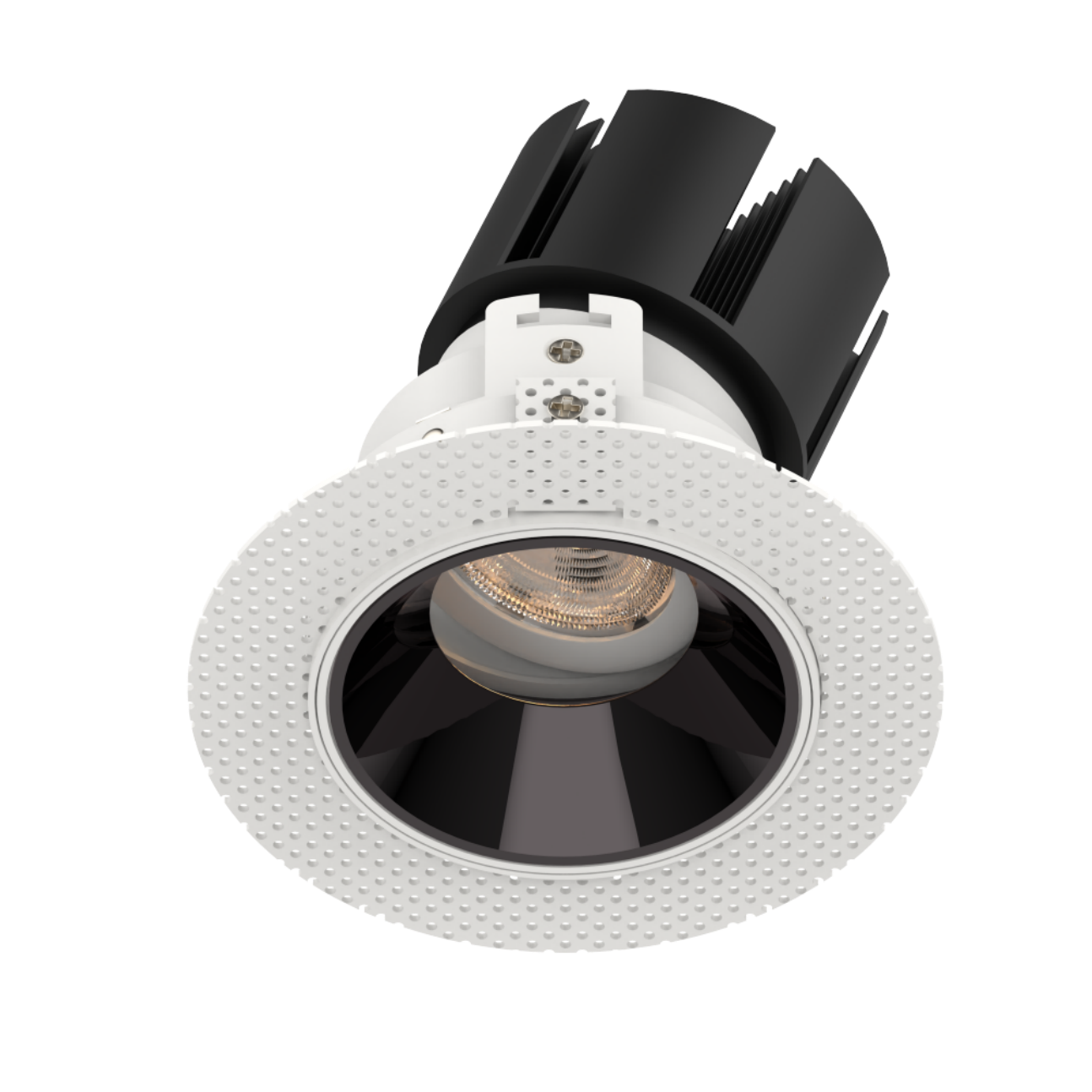

L03277 Spotlight    IP20

Aluminium die casting heat-sink, powder coating. Remote LED driver version.

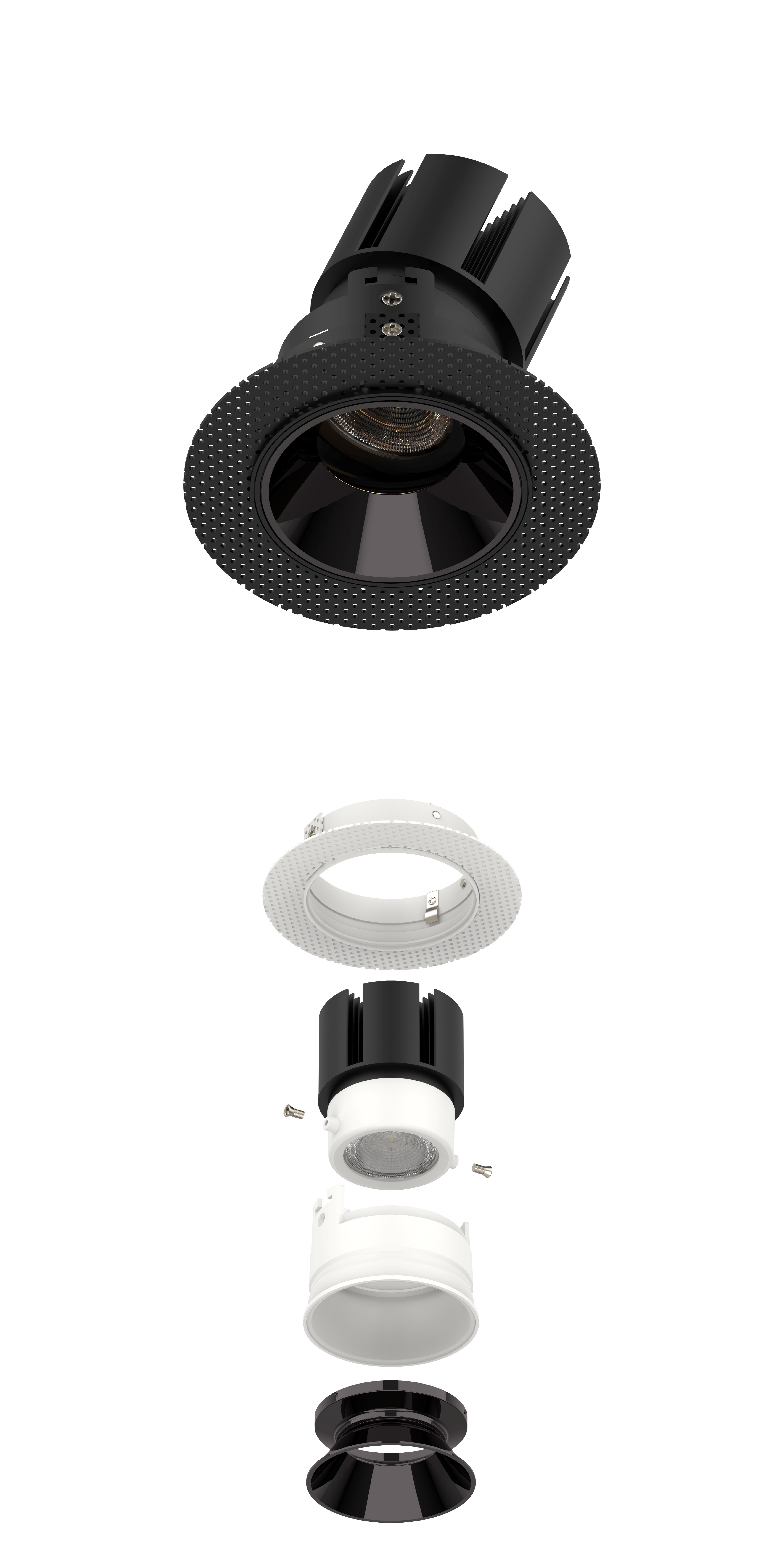

Adjustable spotlight, recessed light source. visual comfort. They comprise a LED light module, a metal baffle and a metal mounting frame. Easy installations. the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. Dimmable. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle is available in multiple color finishing, Black I White as standard.

TECHICAL DATA

  • 1350-1800lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • DALI Tunable White 2700K-6500K CCT.
  • DALI I Triac I 0/1-10V I Tunable white dimming
  • Ceiling, wall recessed.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03277

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Recessed light source , eyes friendly

0/1-10V I Triac I DALI Tunable white dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03277-15 15W 1350lm
115xH103mm
85mm		 350mA
L03277-20 20W 1800lm
115xH143mm
85mm		 500mA

FEATURES

Adjustable spotlight, recessed light source. visual comfort. They comprise a LED light module, a metal baffle and a metal mounting frame. Easy installations. the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. Dimmable. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle is available in multiple color finishing, Black I White as standard.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
15W   350mA
20W   500mA
