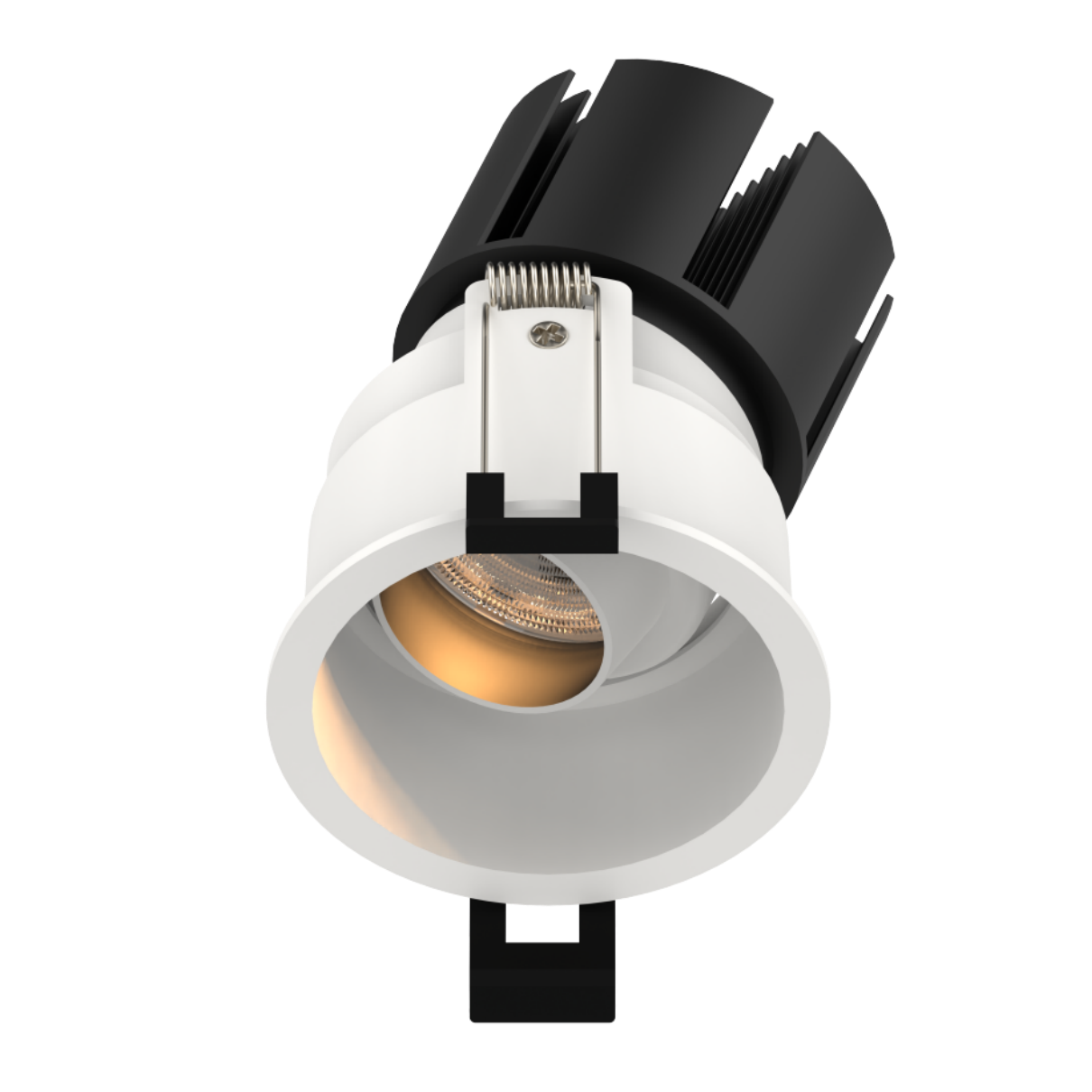

L03274 Spotlight IP20

Aluminium die casting heat-sink, powder coating. Remote LED driver version.

Adjustable spotlight, recessed light source. visual comfort. They comprise a LED light module, a metal baffle and a metal mounting frame. Easy installations. the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. Dimmable. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle is available in multiple color finishing, Black I White as standard.

TECHICAL DATA

640-960lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
DALI Tunable White 2700K-6500K CCT.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling, wall recessed.
COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03274

IP20

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

Famous brand COB LED 3SDCM CRI90

Flicker Free, Remote LED Driver version.

Recessed light source , eyes friendly

0/1-10V I Triac I DALI Tunable white dimming

VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

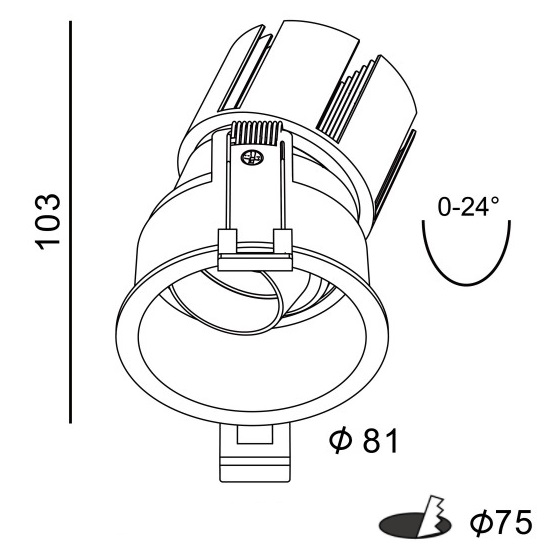

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03274-8	8W	640lm	81xH103mm	75mm	150mA


L03274-12	12W	960lm	81xH103mm	75mm	300mA

FEATURES

Adjustable spotlight, recessed light source. visual comfort. They comprise a LED light module, a metal baffle and a metal mounting frame. Easy installations. the new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. Dimmable. High Definition optical lenses in thermoplastic material. Specialized optics and optical filters can be ordered. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The metal baffle is available in multiple color finishing, Black I White as standard.

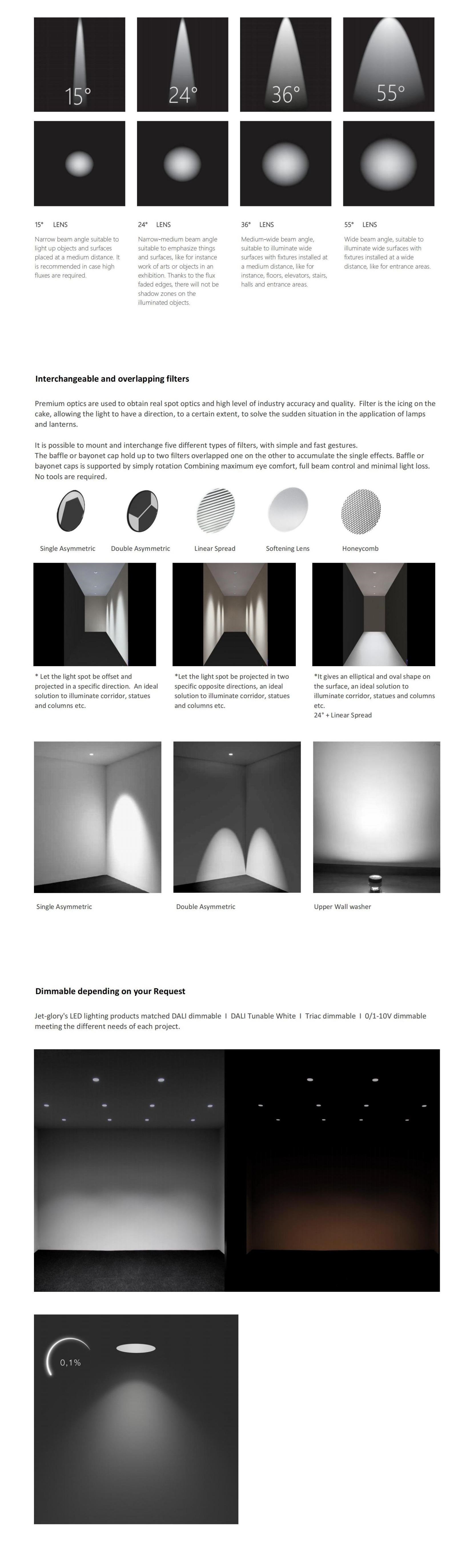

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
8W 150mA 12W 300mA

Download

Installation
