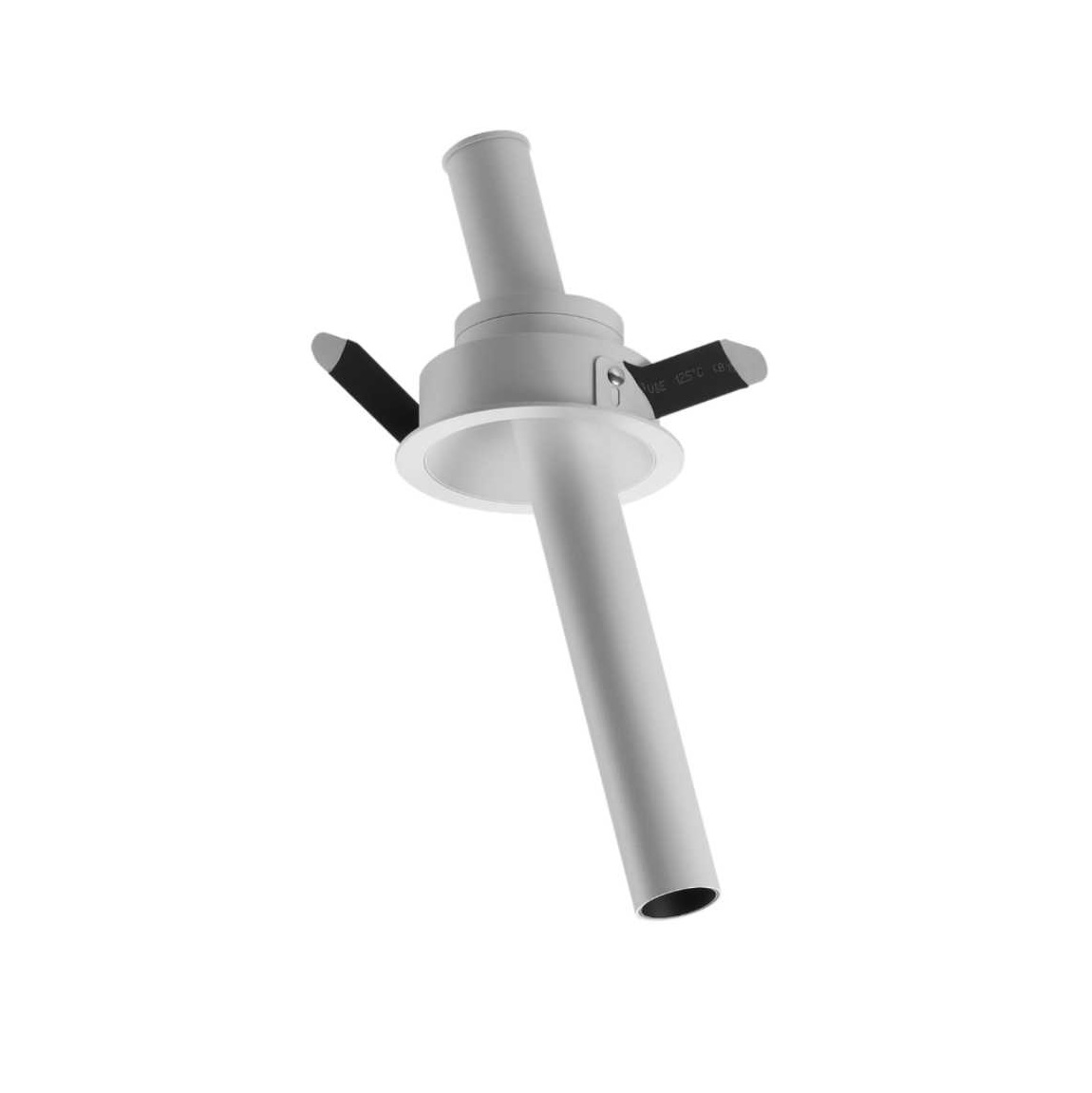

L03167 Spotlight IP44

Aluminium material and powder coating. Remote LED driver version.

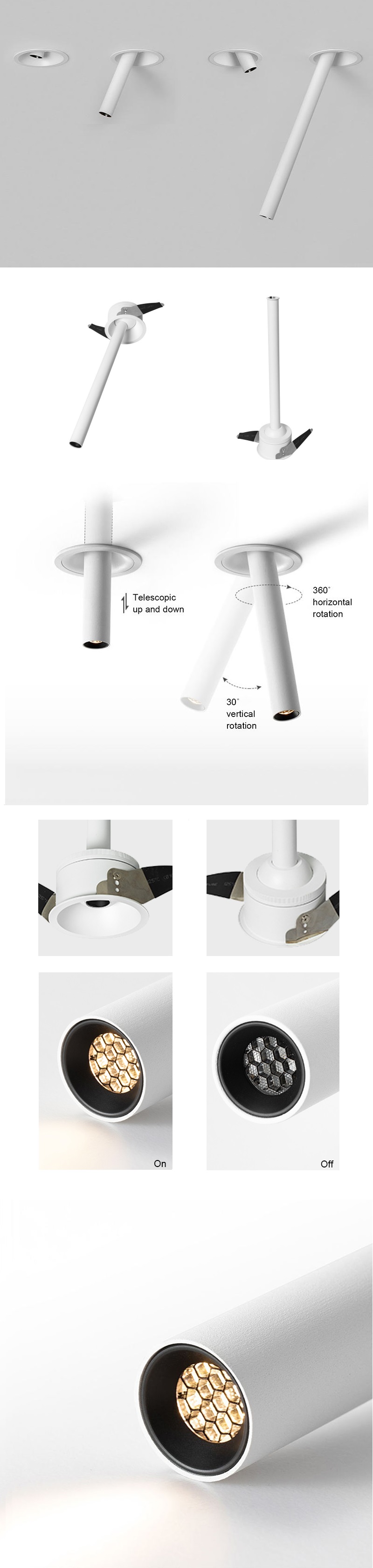

Excellent directional Lighting slim trim I pull out I adjustable I 360°rotation, narrow beam angle 10 degree, Visual comfort low glare optic with recessed light source. Uniform distribution and soft light. Easy installation. Easy lighting demand, for a wide scala of projects, from residential to hotels, restaurants, retail and much more. It is presented to its customers as a clean and non-dazzling product. Customized color finishing, power changes are possible depending on the request and the quantity.

TECHICAL DATA

400-400lm
Remote LED Driver
Aluminium lighting fixture, powder coated.
300-400mm cable with quick connector.
DALI I Triac I 0/1-10V I Tunable white dimming
Ceiling recessed.
COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03167

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Aluminium die casting material and powder coating

Ceiling recessed, Ceiling thickness 3-25mm

400-600mm cable with quick connector

CITIZEN COB LED 3SDCM CRI97

Flicker Free, Remote LED Driver version. PF0.95

Deeply recessed light source , eyes friendly

0/1-10V I Triac I DALI dimming

HIGH LEVEL OF VISUAL COMFORT AND UNIFORM DISTRIBUTION

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03167-22	5W	400lm	85xH220mm	75mm	150mA


L03167-35	5W	400lm	85xH350mm	75mm	150mA


L03167-50	5W	400lm	85xH500mm	75mm	150mA


L03167-80	5W	400lm	85xH800mm	75mm	150mA

FEATURES

Famous brand COB LED Chips I 3SDCM I High CRI I Visual comfort I Dimmable I Uniform distribution I Flicker-Free I Long lifetime I Simplify installation I Luminaires in this line have family, available in Length 220mm ,350mm, 500, 800mm. The new creating that meets the needs of your residential and commercial projects.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
5W 150mA 5W 150mA 5W 150mA 5W 150mA

Data Sheet
