IP54 I 7-12W

L08053 Spotlight    IP54

Aluminium die casting material and powder . Built in LED driver version. High Efficiency Spotlight . Visual comfort.

Surface mounted adjustable spotlight with recessed light source UGR<16. 25° adjustable and 360° rotation. IP54 rated, It offers more than four beam angles: 15° 24° 36° and 55°, delivering highly uniform light distribution. This high-efficiency spotlight achieves up to 100lm/W. Constructed with die-cast aluminum and powder coating, metal baffle available in multiple colors. The LED driver is built-in. The standard version comes in white and black, while customized colors and adjustable power are supported based on customer requirements and order quantity. It adopts high-brand LED chips with CRI90+ and 2step binning. Supports smart lighting systems, compatible with CASAMBI and DALi dimming. the IP54 rating means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.The new creating that meets the needs of your residential and commercial projects. The spotlight features a clean design and excellent anti-glare performance, providing comfortable, non-dazzling lighting. An ideal engineering lighting solution for the mid-to-high-end market. 5-year warranty provided.

TECHICAL DATA

  • 2100-3600lm
  • Built-in LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Surface Mounted
  • DALI I Triac I 0/1-10V I CASAMBI
  • 300-400mm cable with quick connector.
  • Famous brand LED CRI90+ 2-3SDCM

Product is Europe Standard & CE Certificate.

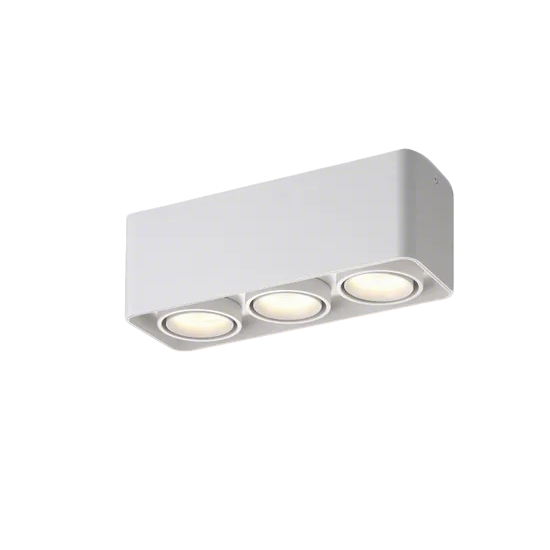

SURFACE MOUNTED LED DOWN SPOTLIGHT - IP54

L08053

IP54

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

IP54 I 25° adjustable and 360° rotation

Surface Mounted

Aluminium die-casting lighting fixture, powder coated.

Famous brand LED CRI90+ 2SDCM UGR<16

Flicker Free I Deeply recessed light source.

Built-in LED Driver

DALI I Triac I 0/1-10V I CASAMBI

IP54 AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L08053-7 3x7W 2100lm

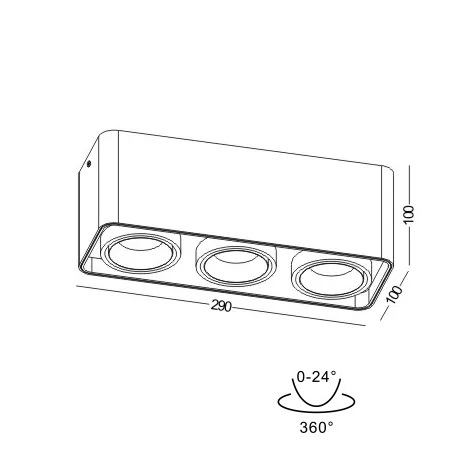

W100xH100xL290mm
mm
150mA
L08053-12 3x12W 3600lm
W100xH100xL290mm
mm
300mA

FEATURES

Surface mounted adjustable spotlight with recessed light source UGR<16. 25° adjustable and 360° rotation. IP54 rated, It offers more than four beam angles: 15° 24° 36° and 55°, delivering highly uniform light distribution. This high-efficiency spotlight achieves up to 100lm/W. Constructed with die-cast aluminum and powder coating, metal baffle available in multiple colors. The LED driver is built-in. The standard version comes in white and black, while customized colors and adjustable power are supported based on customer requirements and order quantity. It adopts high-brand LED chips with CRI90+ and 2step binning. Supports smart lighting systems, compatible with CASAMBI and DALi dimming. the IP54 rating means that they can be used even in bathroom or other damp indoor locations. This enables you to continue the ceiling uniformity throughout bathrooms, wellness areas and other indoor damp locations.The new creating that meets the needs of your residential and commercial projects. The spotlight features a clean design and excellent anti-glare performance, providing comfortable, non-dazzling lighting. An ideal engineering lighting solution for the mid-to-high-end market. 5-year warranty provided.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
12W   300mA
