L08123 Spotlight IP20

Aluminium die casting material and powder coating. -built in Driver -

Double adjustability 90°adjustable 355°rotation, An ideal accent lighting in residential I home or commercial areas. -High level of visual comfort, the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. The basic model comes in black colors.- The metal baffle comes in multiple colors, Black I White I Gold. Customized color finishing are possible depending on the request and the quantity to match the specific look and feel of your design.

TECHICAL DATA

450-200lm
Built-in LED Driver
Aluminium diecasting lighting fixture, powder coated.
Flicker Free CRI90+ UGR<19
Double adjustability 90°adjustable 355°rotation,
Surface Mounted
Famous brand LED chips,- CRI90+ 3steps-Dimmable-

Product is Europe Standard & CE Certificate.

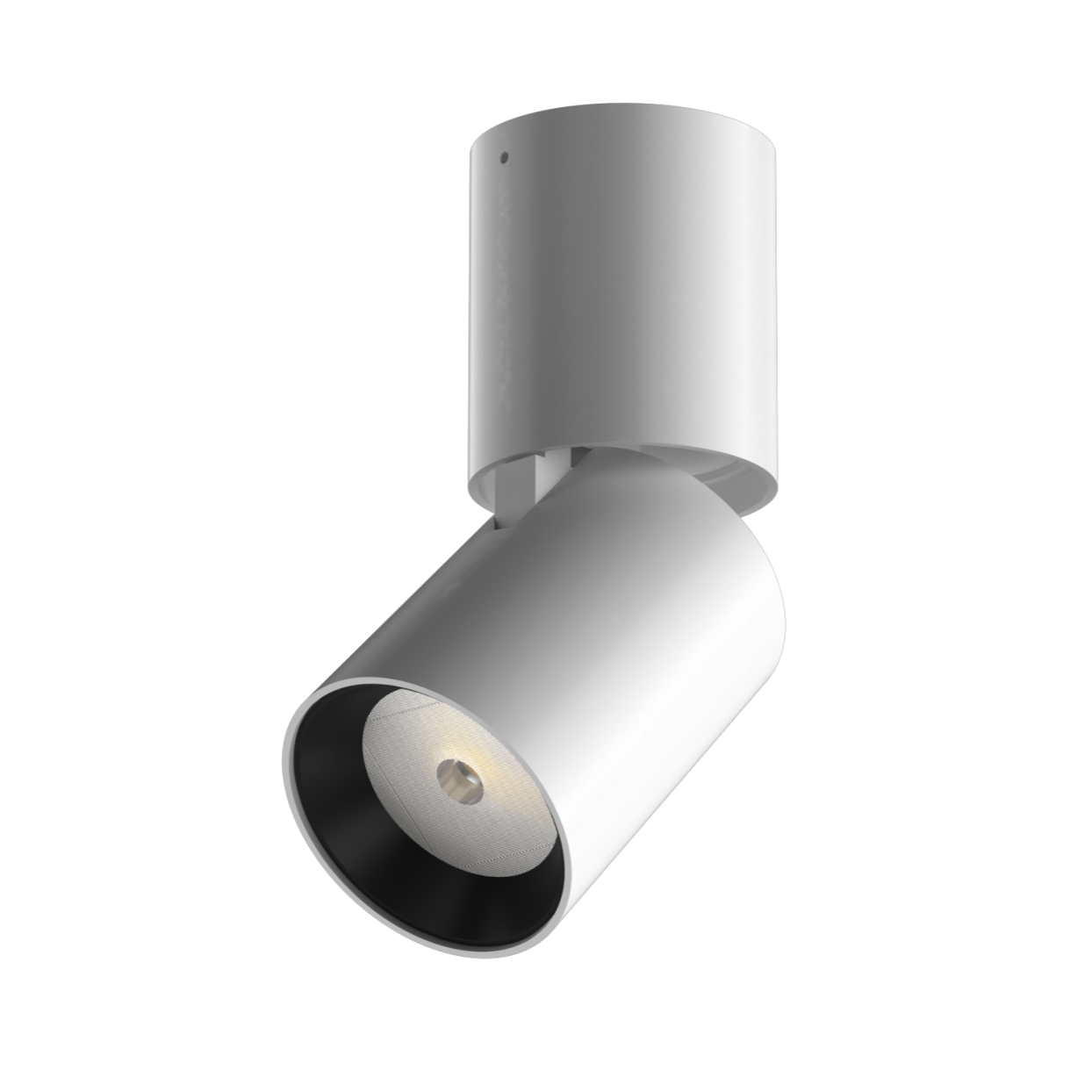

INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L08123

IP20

CLASS III

Ceiling Mounted

ECO Energy Saving. I CE certificate I RoHS standard

Aluminium extrusion material and powder coating.

UGR<19 I European Standard.

CRI90 2-3SDCM Famous brand COB LED

DALI dimmable I Flicker Free

Double adjustability 90°adjustable 355°rotation

Warranty 5 Years

An ideal solution for accent lighting

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA

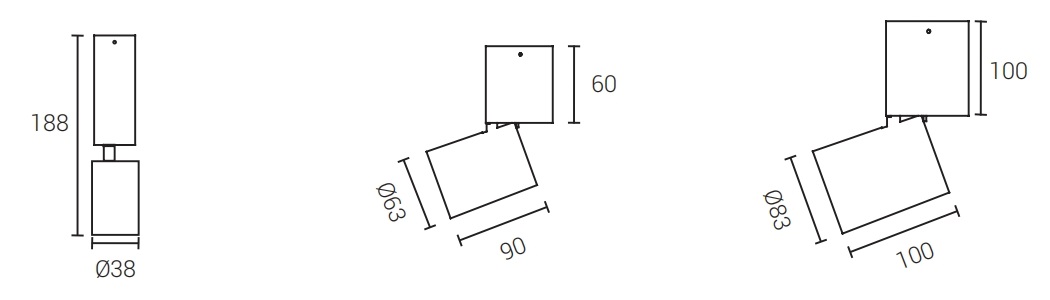

L08123-6	6W	450lm	38xH188mm	mm	150mA


L08123-12	12W	900lm	63xH151mm	mm	300mA


L08123-25	25W	200lm	83xH201mm	mm	600mA

FEATURES

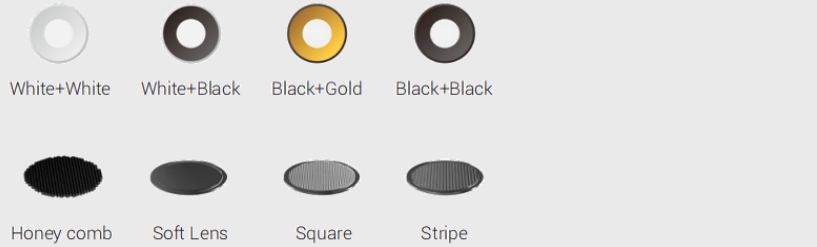

Double adjustability 90°adjustable 355°rotation, An ideal accent lighting in residential I home or commercial areas. -High level of visual comfort, the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. The basic model comes in black colors.- The metal baffle comes in multiple colors, Black I White I Gold. Customized color finishing are possible depending on the request and the quantity to match the specific look and feel of your design.

Built-in LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
6W 150mA 12W 300mA 25W 600mA
