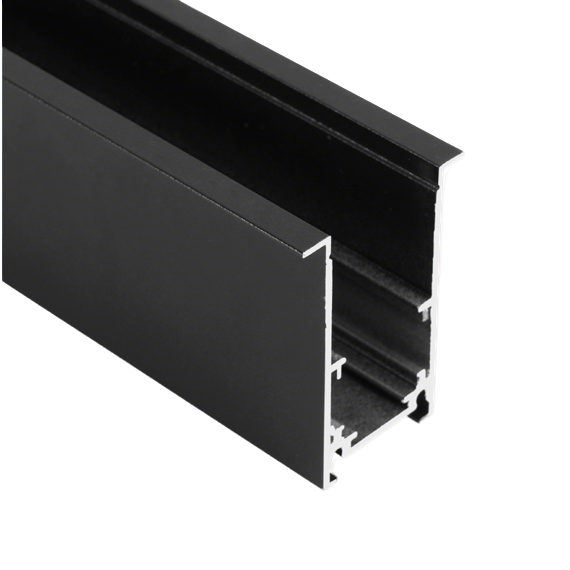

L09539 IP20

20 series 48V DC dimming track system . Aluminium extrusion track rail and powder coating. with no visible screw design. Recessed installation.

L09539, Recessed profile is 20 series 48V DC track system . Aluminium extrusion track rail and powder coating. with no visible screw design. All luminance are installed simply and safely by insertion. Very compact dimensions of the profile, Recessed with spring, slim trim type， easy installation. Extremely integrated with the architecture. Up to three types of length. While customized length of track rails are supported based on customer requirements. Perfect solution in any kind of environment for indoor use.

TECHICAL DATA

lm
Remote LED Driver
Aluminium extrusion material and powder coating.
Recessed Slim Trim
Wired DALI and CASAMBI wireless controls option.

Product is Europe Standard & CE Certificate.

20 SERIES DIMMING TRACK SYSTEM

L09539

IP20

CLASS III

Ceiling Recessed Slim Trim

220-240V 50/60Hz 48V DC

Aluminium extrusion material and powder coating

Eyes friendly CE certificate RoHS standard

Triac I 0/1-10V I DALI I CASAMBI

Customized color finishing and length are acceptable

Warranty 5 Years

20 SERIES DIMMING TRACK SYSTEM

Code	System Power W	Output Lumen lm	Dimension mm	Cut Hole mm	Power Supply mA
L09539-1000	W	lm	L1000mm	mm	mA
L09539-2000	W	lm	L2000mm	mm	mA
L09539-3000	W	lm	L3000mm	mm	mA

FEATURES

L09539, Recessed profile is 20 series 48V DC track system . Aluminium extrusion track rail and powder coating. with no visible screw design. All luminance are installed simply and safely by insertion. Very compact dimensions of the profile, Recessed with spring, slim trim type， easy installation. Extremely integrated with the architecture. Up to three types of length. While customized length of track rails are supported based on customer requirements. Perfect solution in any kind of environment for indoor use.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
W mA W mA W mA

Download

Installation
