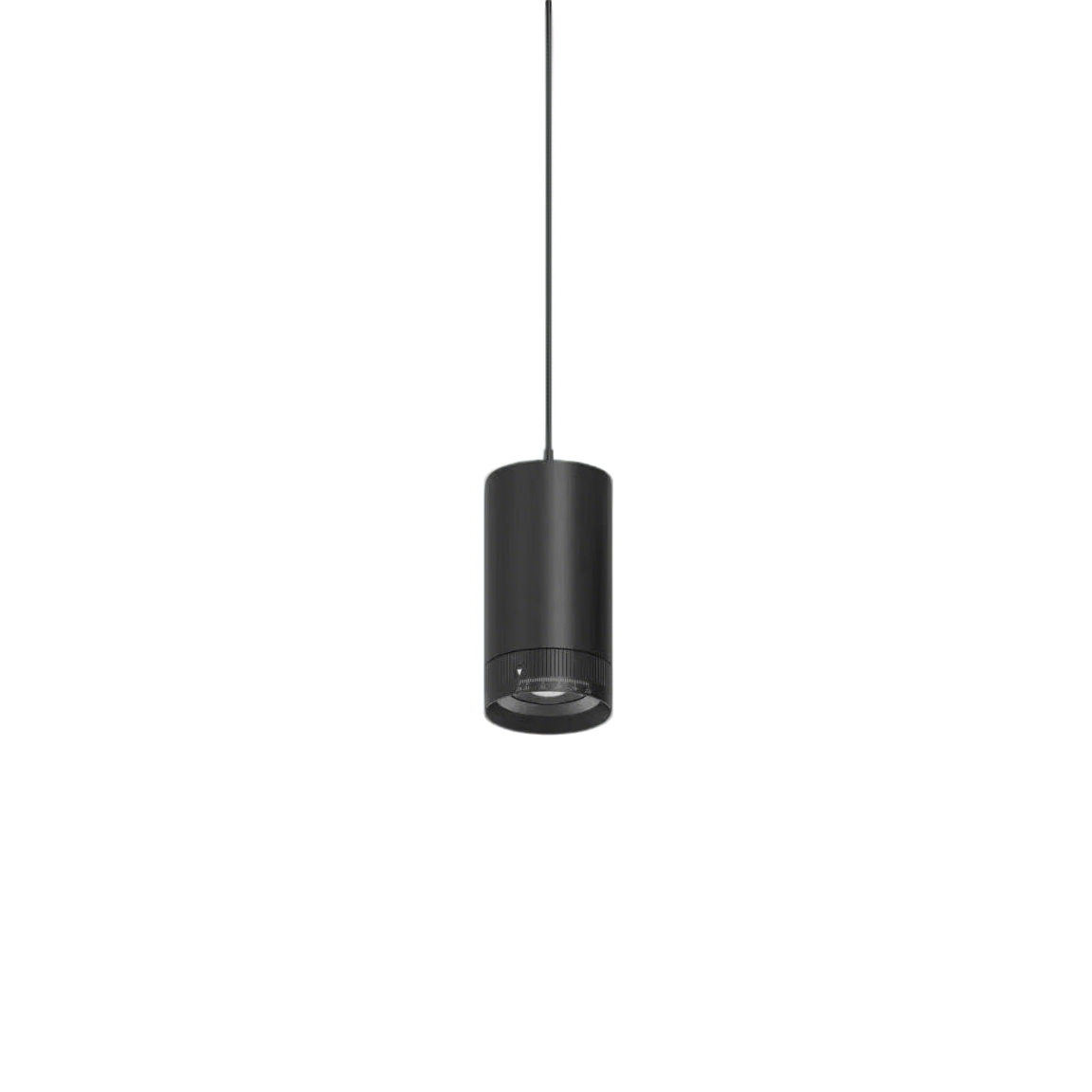

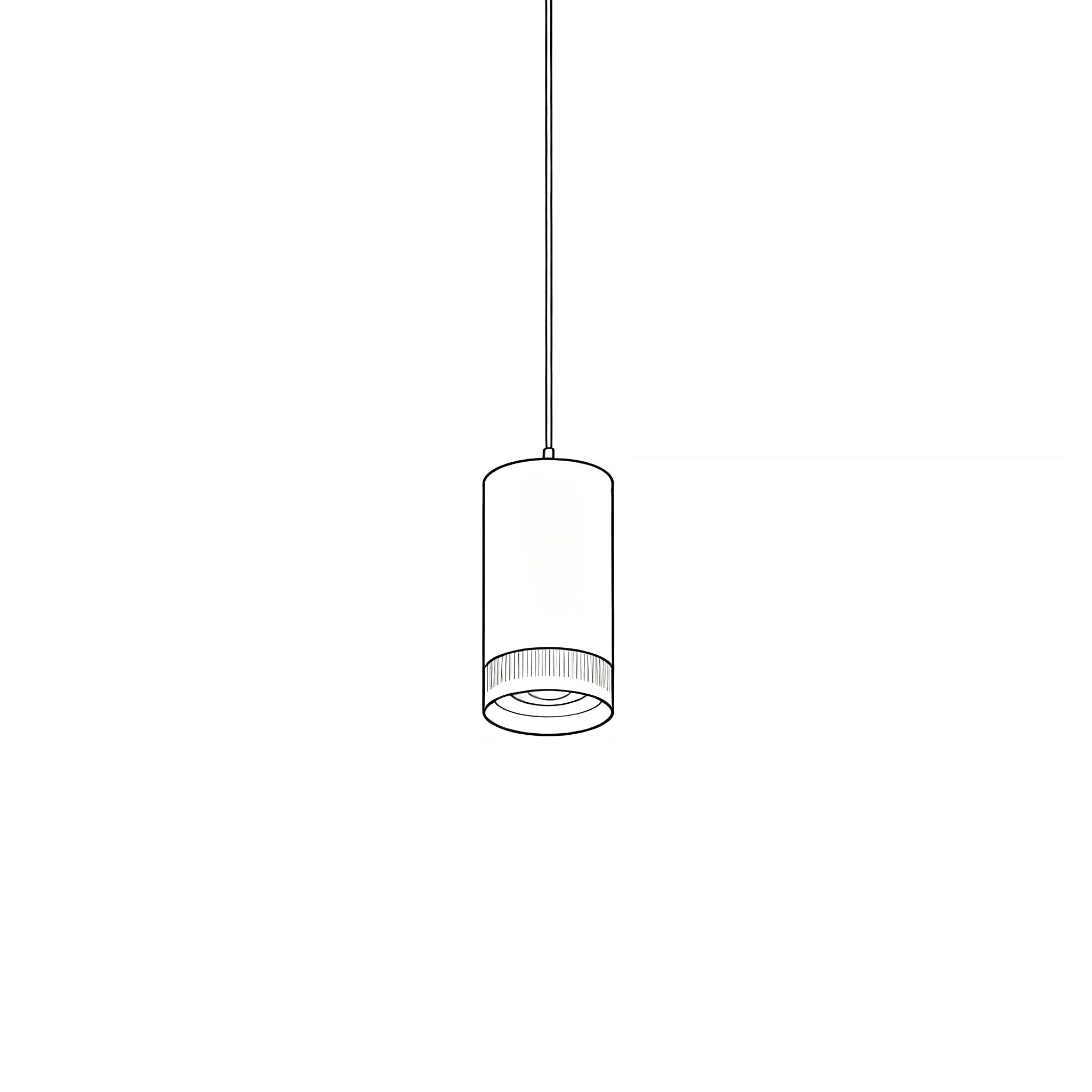

L09535 zoomable 10°-60°     IP20

The lamp is for 20 series dimming track system, small dimensions and high performance. zoomable 10°-60°

The lamp is for 20 series dimming track system, small dimensions and high performance directional spot, fixed pendant zoomable 10°-60° spotlight. UGR<16. Famous brand LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails, makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

TECHICAL DATA

  • 800lm
  • The lamp is or 20 series dimming track system
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • fixed pendant spotlight
  • Famous brand LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

20 SERIES DIMMING TRACK SYSTEM

L09535

IP20

CLASS III

Europe Standard & CE Certificate.

Small dimensions and zoomable 10°-60°

Compatible with 20 series dimming track system

Fixed pendant spotlight ( cable L1200mm)

Famous brand LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

ZOOMABLE LAMP UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L09535-10 10W 800lm
50xH100mm
mm
 mA

FEATURES

The lamp is for 20 series dimming track system, small dimensions and high performance directional spot, fixed pendant zoomable 10°-60° spotlight. UGR<16. Famous brand LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails, makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

Accessoires Beam Angle Color Temperature Finishes
10W   mA
