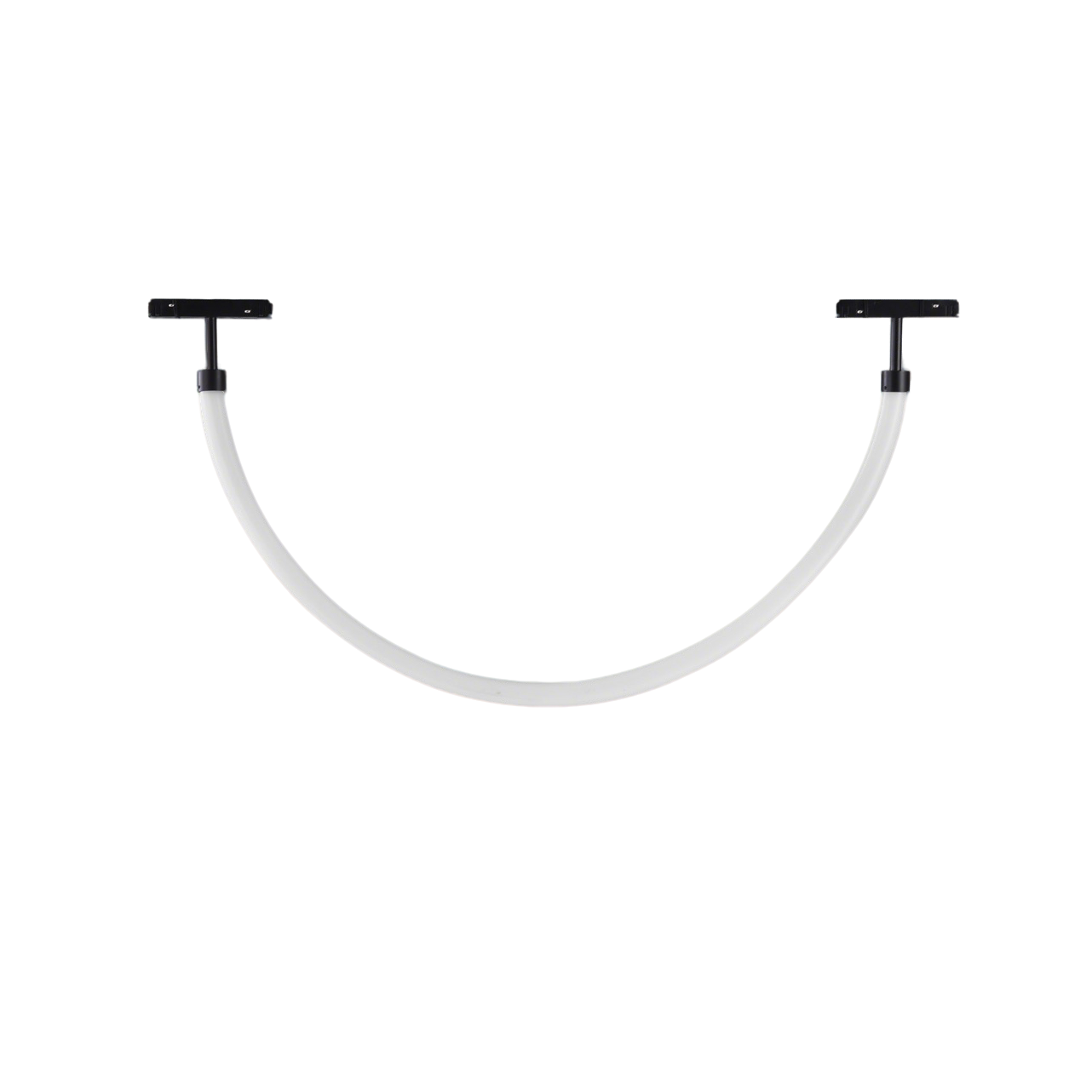

highly flexible neon

L09227 Decorative Light    IP20

The lamp is for 20 series dimming track system, highly flexible neon. very wide beam angles. 360°

The lamp is for 20 series dimming track system, highly flexible neon. very wide beam angles. 360°. The luminaire with matt diffuser. highly flexible line tube decoration - soft light. OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails and can be twisted at any angle makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

TECHICAL DATA

  • 800lm
  • The lamp is or 20 series dimming track system
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • OSRAM branded LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

20 SERIES DIMMING TRACK SYSTEM

L09227

IP20

CLASS III

Europe Standard & CE Certificate.

Highly Flexible Neon Light

Compatible with 20 series dimming track system

Decorative Light

OSRAM branded LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE NEON AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L09227-10 10W 800lm
L1000mm
mm
 mA

FEATURES

The lamp is for 20 series dimming track system, highly flexible neon. very wide beam angles. 360°. The luminaire with matt diffuser. highly flexible line tube decoration - soft light. OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails and can be twisted at any angle makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

Accessoires Beam Angle Color Temperature Finishes
10W   mA
