rounded corner

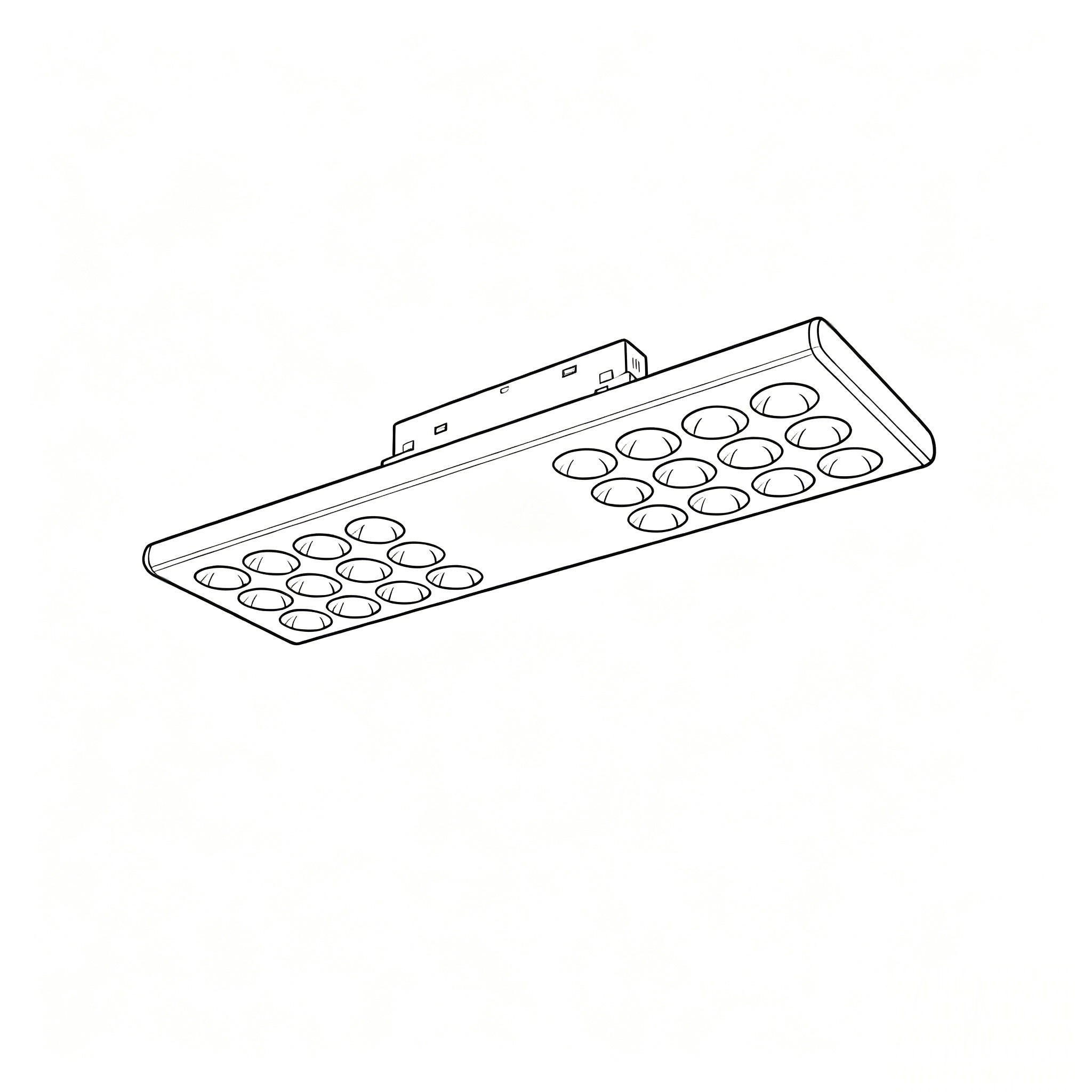

L09228 Soft Light    IP20

The lamp is for 20 series dimming track system, 90° conner line soft , very wide beam angle, 120°

The lamp is for 20 series dimming track system, The rounded corner refines the outline and for a more fluid, soft and reassuring appearance recalling the harmony of natural elements, height reduced lighting fixture, (height 15mm), light in weight so that less power is needed for production and transport alike.The new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. Achieved a real high level of visual comfort. Equipped with TW technology that allow controlling color temperature and brightness from 1800K to 4000K. dimming and color temperature changes are controlled independently. OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails makes these products to be easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

TECHICAL DATA

  • 1600lm
  • The lamp is or 20 series dimming track system.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • OSRAM branded LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

20 SERIES DIMMING TRACK SYSTEM

L09228

IP20

CLASS III

Europe Standard & CE Certificate.

High level of Visual Comfort UGR<16

Compatible with 20 series dimming track system

Rounded Corner Design and Height Reduced

OSRAM branded LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver I 48V DC

DALI I Triac I 0/1-10V I CASAMBI I DT8

UNIFORM DISTRIBUTION & UGR < 16

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L09228-20 20W 1600lm
300x100xH15mm
mm
mA

FEATURES

The lamp is for 20 series dimming track system, The rounded corner refines the outline and for a more fluid, soft and reassuring appearance recalling the harmony of natural elements, height reduced lighting fixture, (height 15mm), light in weight so that less power is needed for production and transport alike.The new creating that meets the needs of your residential and commercial projects. The spotlight offer homogeneous and uniform light distribution. Achieved a real high level of visual comfort. Equipped with TW technology that allow controlling color temperature and brightness from 1800K to 4000K. dimming and color temperature changes are controlled independently. OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails makes these products to be easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

Accessoires Beam Angle Color Temperature Finishes
20W   mA
