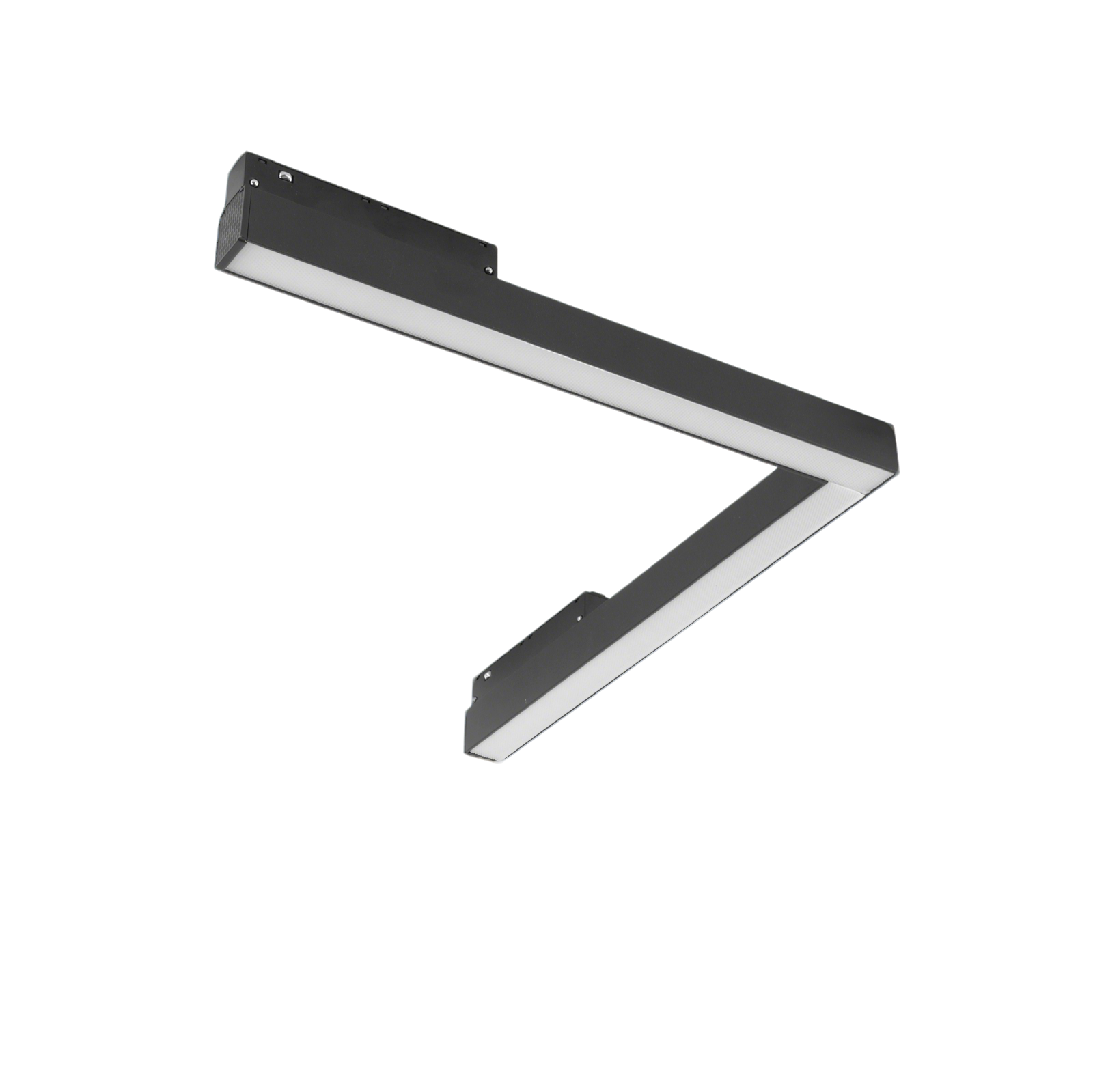

L09224 conner 90° Soft Light    IP20

The lamp is for 20 series dimming track system, 90° conner line soft , very wide beam angle, 120°

The lamp is for 20 series dimming track system, conner 90° Angle (on same plane), very wide beam angle 120°, Line soft, diffuser for better visual comfort general diffuse lighting, Linear luminaire is available in size of 300x320mm. The conner light is used to create a seamless light line. Equipped with TW technology that allow controlling color temperature and brightness from 1800K to 4000K. dimming and color temperature changes are controlled independently. OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails and conner designed makes these products to be flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

TECHICAL DATA

  • 960-1800lm
  • The lamp is or 20 series dimming track system.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • OSRAM branded LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

20 SERIES DIMMING TRACK SYSTEM

L09224

IP20

CLASS III

Europe Standard & CE Certificate.

Visual Comfort UGR<16

Compatible with 20 series dimming track system

Conner 90° Soft Light

OSRAM branded LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver I 48V DC

DALI I Triac I 0/1-10V I CASAMBI I DT8

UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

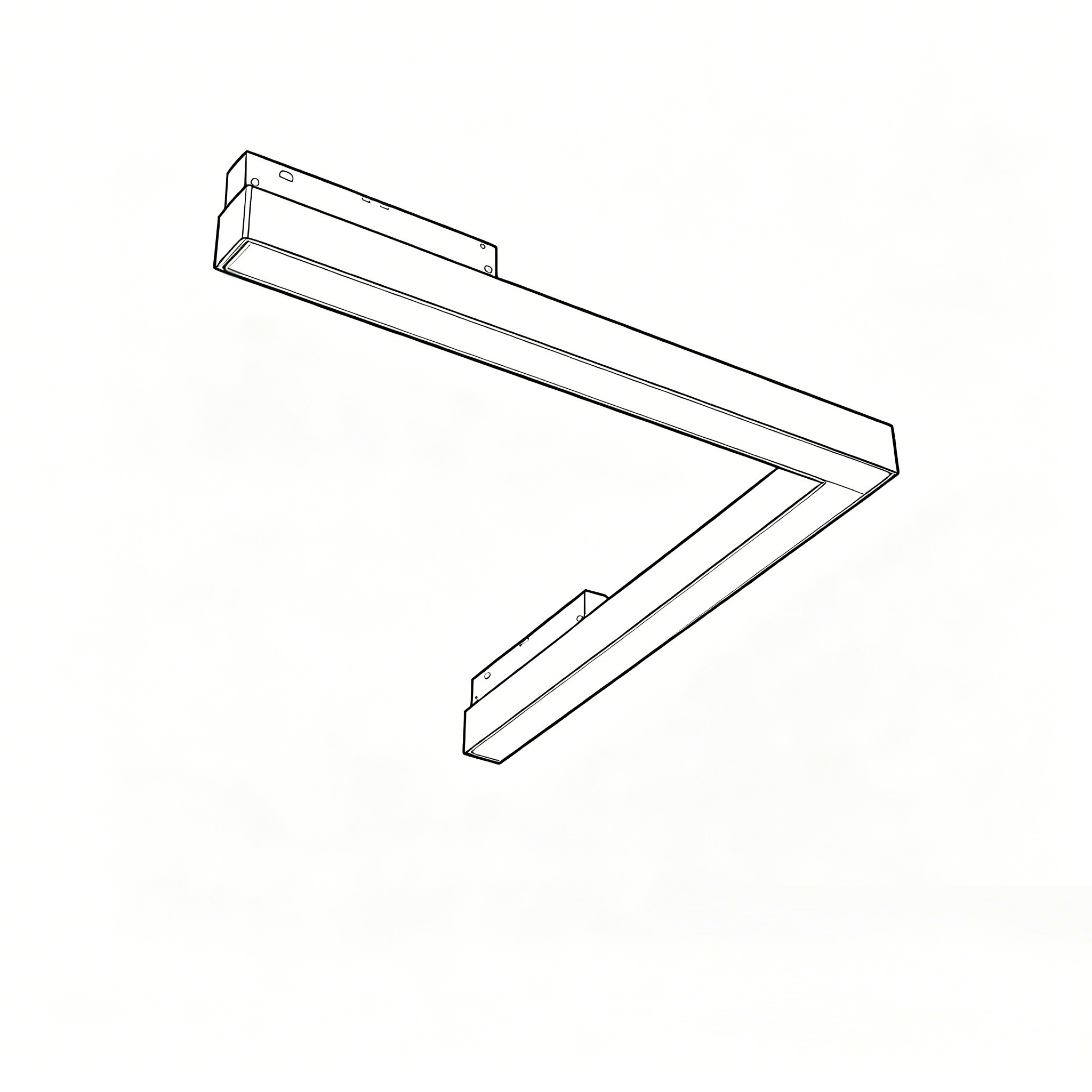

Dimension
mm
Cut Hole
mm
Power Supply
mA
L09224-12 12W 960lm
300x320mm
mm
mA
L09224-20 20W 1800lm
300x320mm
mm
mA

FEATURES

The lamp is for 20 series dimming track system, conner 90° Angle (on same plane), very wide beam angle 120°, Line soft, diffuser for better visual comfort general diffuse lighting, Linear luminaire is available in size of 300x320mm. The conner light is used to create a seamless light line. Equipped with TW technology that allow controlling color temperature and brightness from 1800K to 4000K. dimming and color temperature changes are controlled independently. OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails and conner designed makes these products to be flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

Accessoires Beam Angle Color Temperature Finishes
12W   mA
20W   mA
