Grille Light

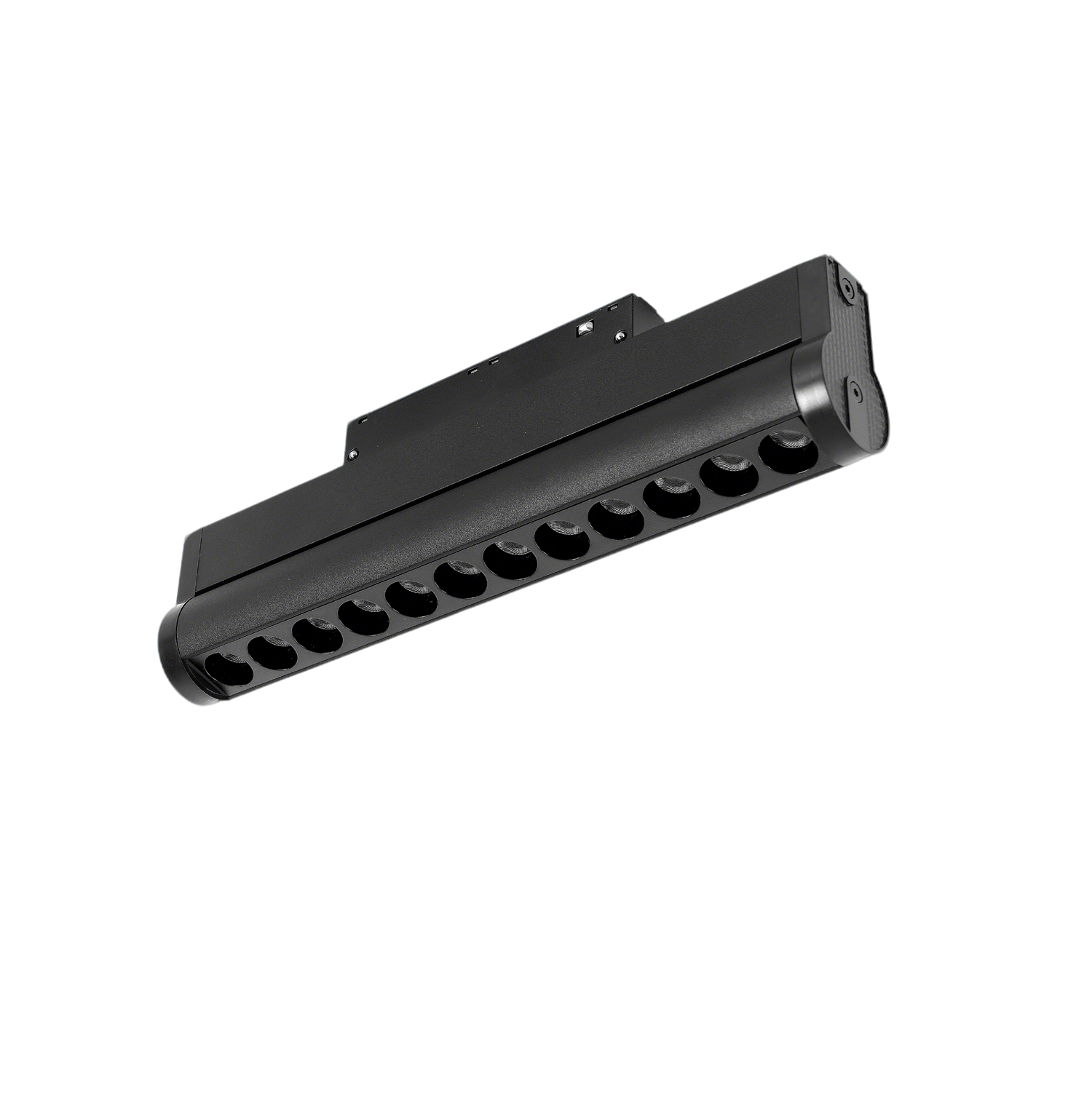

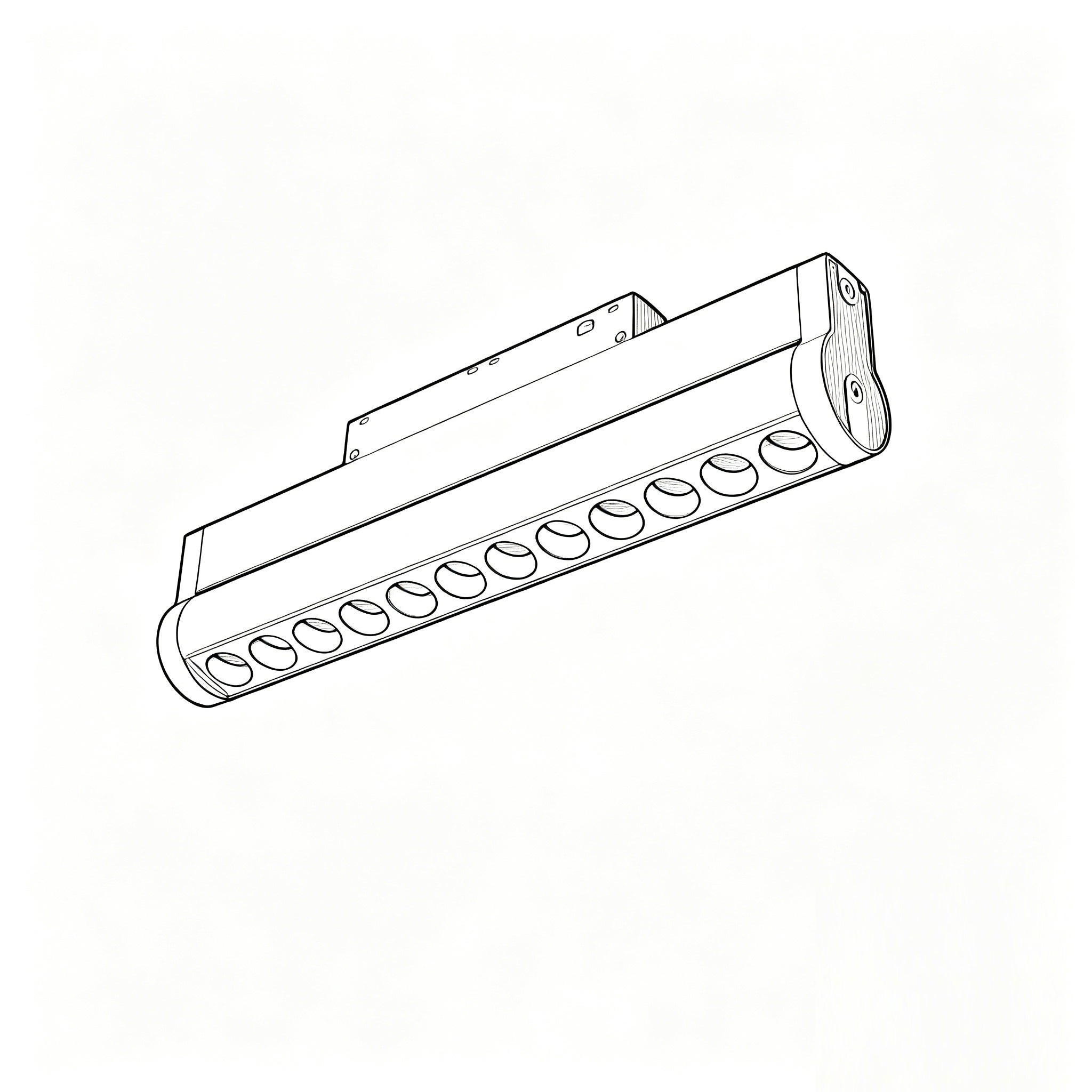

L09225 Soft Light    IP20

The lamp is for 20 series dimming track system, 90° adjustable. high level of visual comfort, available for either narrow beam angle or wide beam angle.

The lamp is for 20 series dimming track system, Directional Grille Light,bendable luminaire. soft light. 300° Vertical rotatable structure , high level of visual comfort, up to three beam angles 15° I 24° I 36° UGR<16. Available for either narrow beam angle or wide beam angle, die casting aluminum materials, powder coating, OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails and right angled inclination makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

TECHICAL DATA

  • 480-1480lm
  • The lamp is or 20 series dimming track system.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • OSRAM branded LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

20 SERIES DIMMING TRACK SYSTEM

L09225

IP20

CLASS III

Europe Standard & CE Certificate.

Visual Comfort UGR<16

Compatible with 20 series dimming track system

Line Soft Light I 300° Vertical rotatable structure

OSRAM branded LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver I 48V DC

DALI I Triac I 0/1-10V I CASAMBI I DT8

UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L09225-6 6W 480lm
122x33x75mm
mm
mA
L09225-12 12W 960lm
231x33x75mm
mm
mA
L09225-18 18W 1480lm
339x33x75mm
mm
mA

FEATURES

The lamp is for 20 series dimming track system, Directional Grille Light,bendable luminaire. soft light. 300° Vertical rotatable structure , high level of visual comfort, up to three beam angles 15° I 24° I 36° UGR<16. Available for either narrow beam angle or wide beam angle, die casting aluminum materials, powder coating, OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails and right angled inclination makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

Accessoires Beam Angle Color Temperature Finishes
6W   mA
12W   mA
18W   mA
