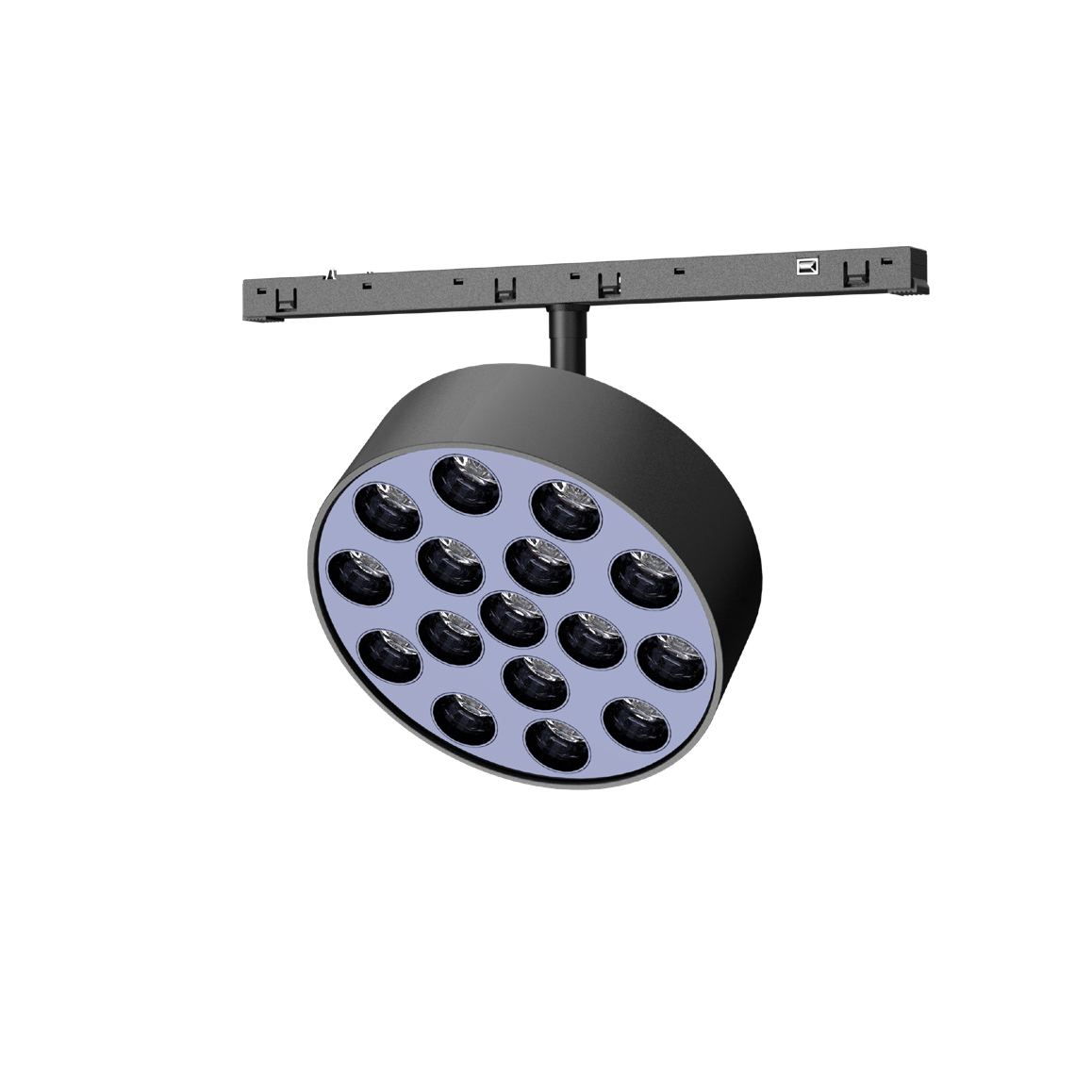

L09391 Directional Grille Light    IP20

The lamp is for 11 series dimming track system, rotatable & bendable louver luminaire. 355°rotation 90° adjustable. high level of visual comfort, available for either narrow beam angle or wide beam angle

The lamp is for 11 series dimming track system,Directional Grille Light,rotatable & bendable luminaire. 355°rotation 90° adjustable. high level of visual comfort, UGR<16. Available for either narrow beam angle or wide beam angle, die casting aluminum materials, powder coating, OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails, the rotation and right angled inclination makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

TECHICAL DATA

  • 1100lm
  • The lamp is or 11 series dimming track system
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 355°rotation 90° adjustable
  • OSRAM branded LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

11 SERIES DIMMING TRACK SYSTEM

L09391

IP20

CLASS III

Europe Standard & CE Certificate.

355°rotation 90° adjustable

Compatible with 11 series dimming track system

Directional Grille Light

OSRAM branded LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

FLEXIBLE AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L09391-16 16W 1100lm

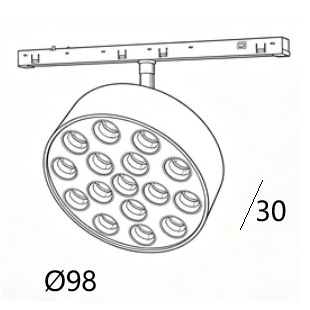

98xH30mm
mm
mA

FEATURES

The lamp is for 11 series dimming track system,Directional Grille Light,rotatable & bendable luminaire. 355°rotation 90° adjustable. high level of visual comfort, UGR<16. Available for either narrow beam angle or wide beam angle, die casting aluminum materials, powder coating, OSRAM branded LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails, the rotation and right angled inclination makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

Accessoires Beam Angle Color Temperature Finishes
16W   mA
