directional spot

L09386     IP20

The lamp is for 11 series dimming track system, small dimensions and high performance. highly flexible 355°rotation, 90° adjustable.

The lamp is for 11 series dimming track system, Aluminum materials and lenses optica, small dimensions and high performance directional spot, highly flexible 355°rotation, 90° adjustable, Famous brand LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails, the rotation and right angled inclination makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

TECHICAL DATA

  • 400-950lm
  • The lamp is or 11 series dimming track system
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • small dimensions and high performance directional spot, 355°rotation, 90° adjustable,
  • Famous brand LED CRI90+ 2SDCM

Product is Europe Standard & CE Certificate.

11 SERIES DIMMING TRACK SYSTEM

L09386

IP20

CLASS III

Europe Standard & CE Certificate.

Small dimensions and high performance directional spot

Compatible with 11 series dimming track system

355°rotation, 90° adjustable

Famous brand LED CRI90+ 2SDCM

Flicker Free

Built-in LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE & UNIFORM DISTRIBUTION

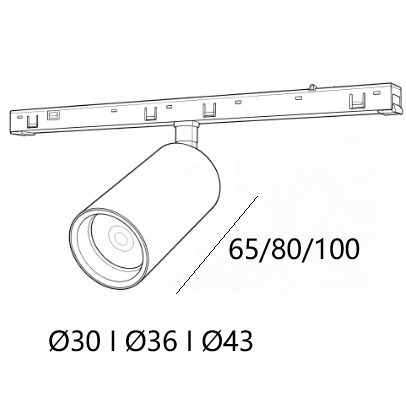

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L09386-5 5W 400lm
30xH65mm
mm
mA
L09386-8 8W 640lm
36xH80mm
mm
mA
L09386-12 12W 950lm
43xH100mm
mm
mA

FEATURES

The lamp is for 11 series dimming track system, Aluminum materials and lenses optica, small dimensions and high performance directional spot, highly flexible 355°rotation, 90° adjustable, Famous brand LED Chips, 2SDCM. CRI90+. High quality electronic components ensure stable and long lasting operation. Each of luminaires are installed simply and safely by insertion, equipped with the HARD FIX mechanical adapter, which securely fixes the luminaire in the track even under mechanical stress. The possibility to take the luminaries out from track rails, the rotation and right angled inclination makes these products to be highly flexible and easy to handle. Highlight the beauty, Create your customized lighting atmosphere. Achieved DALI 2 wired or CASAMBI wireless control. Premium models with dimming technology -smooth, elegant digital dimming without jumps or flickering with 0.1%-100% brightness.

Accessoires Beam Angle Color Temperature Finishes
5W   mA
8W   mA
12W   mA
