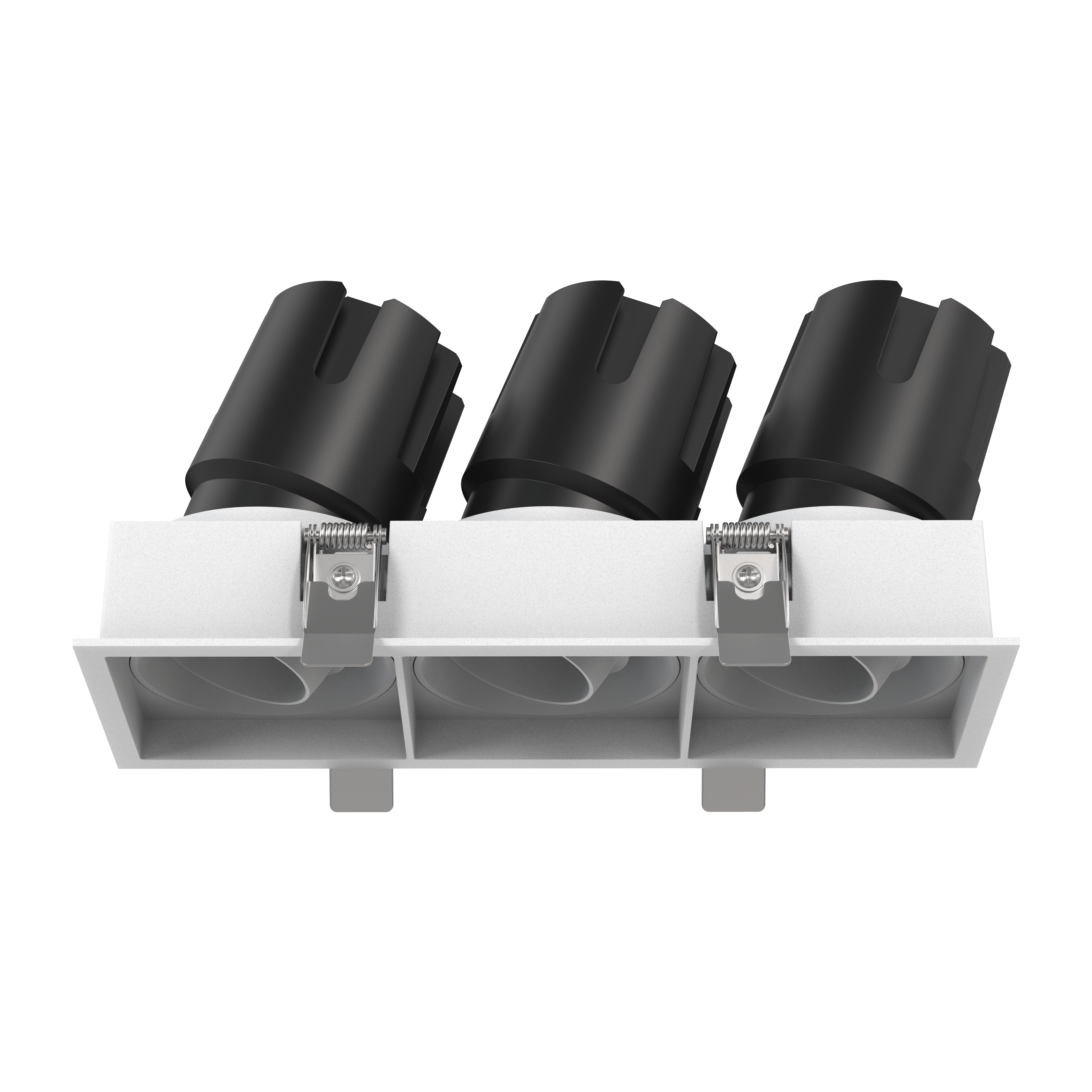

Highly flexible I accent lighting

L03538 Spotlight    IP44

Aluminium material and powder coating. Remote LED driver version. Visual comfort. 35°adjustable 355°rotation.Same appearance both Fixed and Adjustable

Aluminium die casting materials, powder coating. Same appearance both Fixed and Adjustable, 35°adjustable 355°rotation spotlight , Visual comfort low glare optic , recessed light source. available for four different output beams 15/24/36/55°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring,The rotation and the right angled inclination make this product to be highly flexible and easy to handle.High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved. Ideal solution for accent lighting of the medium to high end projects, mainly suitable for Hotel, Villa, Apartment, Restaurant, etc.

TECHICAL DATA

  • 2400-8400lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03538

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

35°adjustable and 355°rotation.Same appearance both Fixed and Adjustable

Ceiling Recessed.

Aluminium lighting fixture, powder coated.

COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

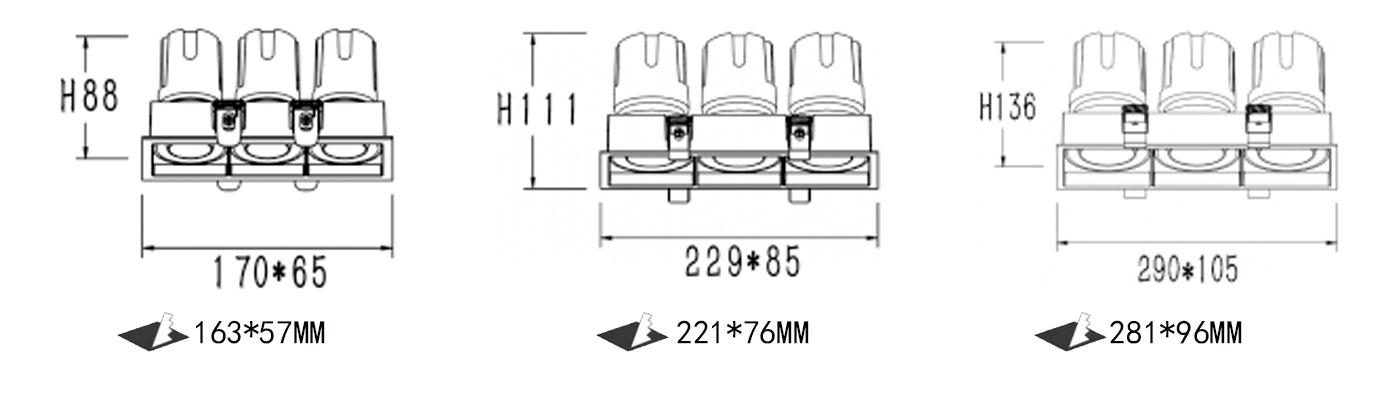

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03538-10 3x10W 2400lm
170*65*H89mm
163*57mm
 250mA
L03538-20 3x20W 4800lm
229*85*H111mm
221*76mm
 500mA
L03538-35 3x35W 8400lm
290*105*H137mm
281*96mm
 875mA

FEATURES

Aluminium die casting materials, powder coating. Same appearance both Fixed and Adjustable, 35°adjustable 355°rotation spotlight , Visual comfort low glare optic , recessed light source. available for four different output beams 15/24/36/55°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring,The rotation and the right angled inclination make this product to be highly flexible and easy to handle.High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved. Ideal solution for accent lighting of the medium to high end projects, mainly suitable for Hotel, Villa, Apartment, Restaurant, etc.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
20W   500mA
35W   875mA
