High Efficiency

L03506 Spotlight    IP44

Aluminium material and powder coating. Remote LED driver version. Visual comfort. High Efficiency upto 100lm/W. Ball catch system installation.

Aluminium material and powder coating. Remote LED driver version. IP44. Visual comfort. High Efficiency upto 100lm/W. Modular Design,they comprise a LED light module, a metal secondary reflector and a metal mounting frame. the reflector is available in multiple color finishing. The lighting fixture is fixed, Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the ball catch system installation,spotlight modules can be pushed into the mounting frame afterwards, and easy to take it off the mounting frame. very easy to handle. The spotlight offer homogeneous and uniform light distribution, available for four different output beams 15/24/36/55°. Specialized optics and optical filters can be ordered. Dimmable. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. Ideal solution for accent lighting of the medium to high end projects, mainly suitable for Hotel, Villa, Apartment, Restaurant, etc.

TECHICAL DATA

  • 1400-6000lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

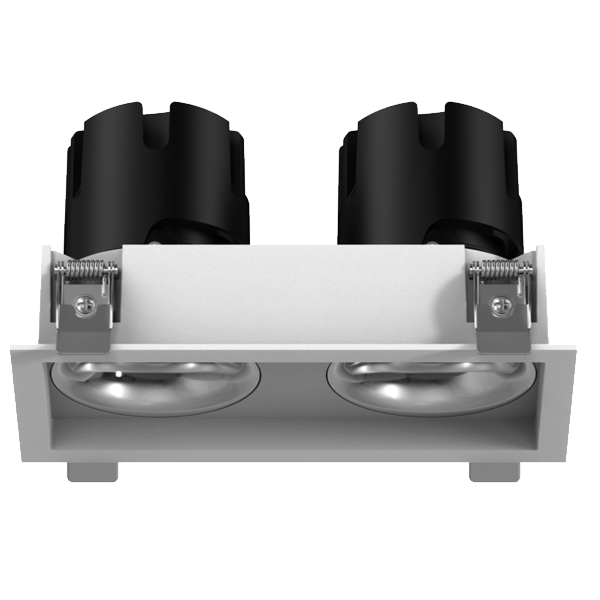

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03506

IP44

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Fixed down spotlight

Ceiling Recessed.

Aluminium lighting fixture, powder coated.

COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

High Efficiency Spotlight

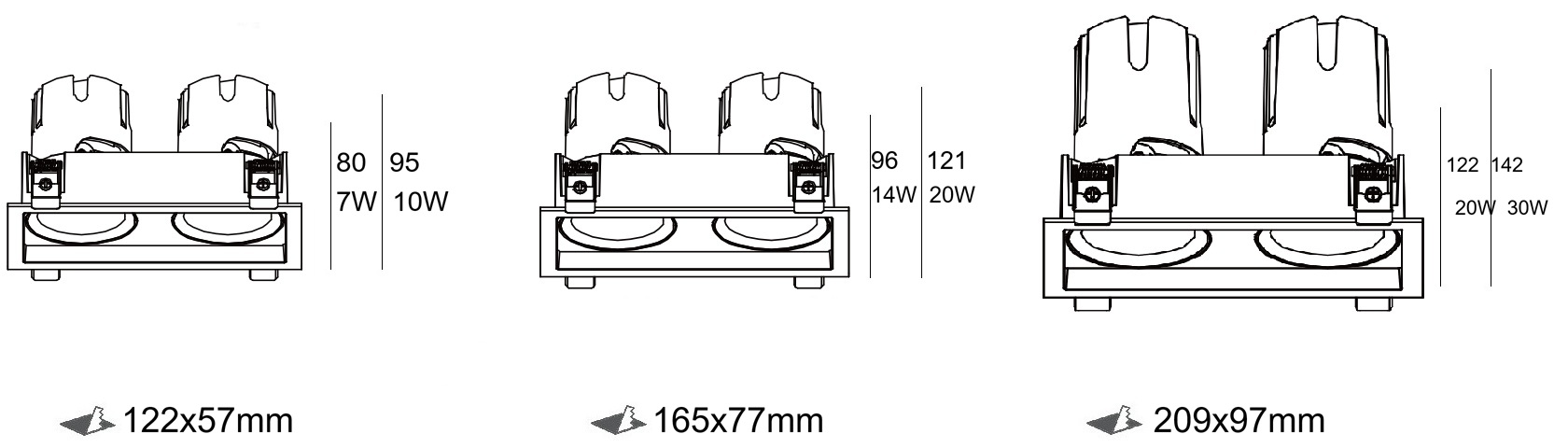

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03506-7 2x7W 1400lm
130*69*H80mm
122*57mm
150mA
L03506-20 2x20W 4000lm
224*110*H122mm
209*97mm
500mA
L03506-10 2x10W 2000lm
130*69*H95mm
122*57mm
250mA
L03506-18 2x18W 3600lm
180*91*H121mm
167*77mm
450mA
L03506-30 2x30W 6000lm
224*110*H142mm
209*97mm
750mA

FEATURES

Aluminium material and powder coating. Remote LED driver version. IP44. Visual comfort. High Efficiency upto 100lm/W. Modular Design,they comprise a LED light module, a metal secondary reflector and a metal mounting frame. the reflector is available in multiple color finishing. The lighting fixture is fixed, Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the ball catch system installation,spotlight modules can be pushed into the mounting frame afterwards, and easy to take it off the mounting frame. very easy to handle. The spotlight offer homogeneous and uniform light distribution, available for four different output beams 15/24/36/55°. Specialized optics and optical filters can be ordered. Dimmable. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. Ideal solution for accent lighting of the medium to high end projects, mainly suitable for Hotel, Villa, Apartment, Restaurant, etc.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
20W   500mA
10W   250mA
18W   450mA
30W   750mA
