L03571 Spotlight    IP40

Aluminium material and powder coating. Remote LED driver version. 100lm/W. Fixed

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. They comprise a LED light module, a metal baffle and a metal mounting frame. 90° vertical tilting, 360° horizontal rotation and pull-out.Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be pushed into the frame afterwards, and easy to take it off the mounting frame. The possibility to take the spotlight out from its mounting frame, adjustable and the right angled incliation make this product to be highly flexible and easy to handle. The spotlight offer homogeneous and uniform light distribution.Specialized optics and optical filters can be ordered. Dimmable. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The new creating that meets the needs of your residential and commercial projects.

TECHICAL DATA

  • 2240-9600lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI90+ 8SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT-PULLOUT

L03571

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

90° vertical tilting, 360° horizontal rotation and pull-out

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

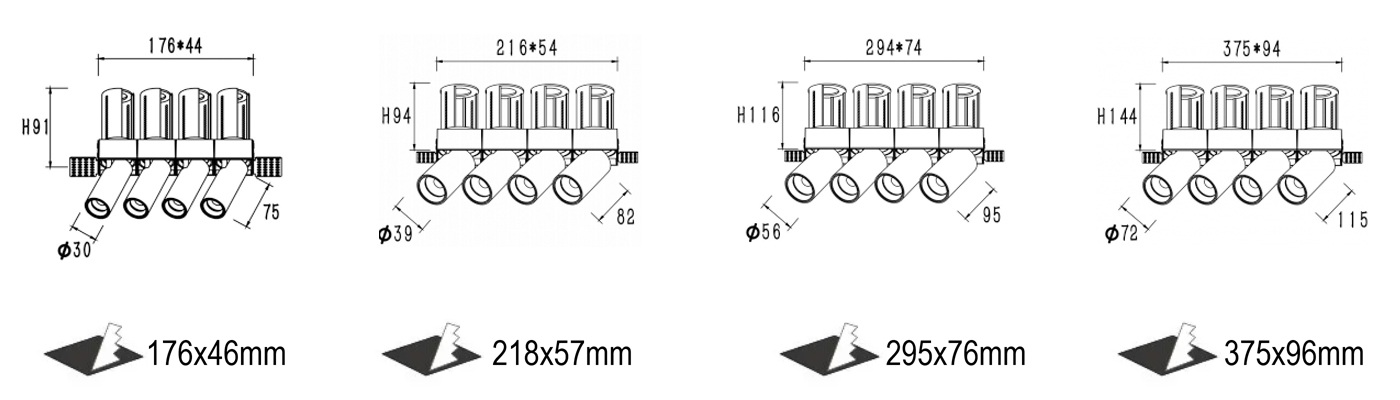

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03571-7 4x7W 2240lm
173x44xH91mm
176x46mm
150mA
L03571-10 4x10W 3200lm
215x55xH94mm
218x57mm
250mA
L03571-18 4x18W 5760lm
292x74xH116mm
295x76mm
450mA
L03571-30 4x30W 9600lm
372x94xH144mm
375x96mm
750mA

FEATURES

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. They comprise a LED light module, a metal baffle and a metal mounting frame. 90° vertical tilting, 360° horizontal rotation and pull-out.Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be pushed into the frame afterwards, and easy to take it off the mounting frame. The possibility to take the spotlight out from its mounting frame, adjustable and the right angled incliation make this product to be highly flexible and easy to handle. The spotlight offer homogeneous and uniform light distribution.Specialized optics and optical filters can be ordered. Dimmable. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The new creating that meets the needs of your residential and commercial projects.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
10W   250mA
18W   450mA
30W   750mA

Download
