L03563 Spotlight    IP40

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. 25°adjustable 355°rotation.

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. They comprise a LED light module, a metal baffle and a metal mounting frame. 90° vertical tilting, 360° horizontal rotation and pull-out.Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be pushed into the frame afterwards, and easy to take it off the mounting frame. The possibility to take the spotlight out from its mounting frame, adjustable and the right angled incliation make this product to be highly flexible and easy to handle. The spotlight offer homogeneous and uniform light distribution.Specialized optics and optical filters can be ordered. Dimmable. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The new creating that meets the needs of your residential and commercial projects.

TECHICAL DATA

  • 1120-4800lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

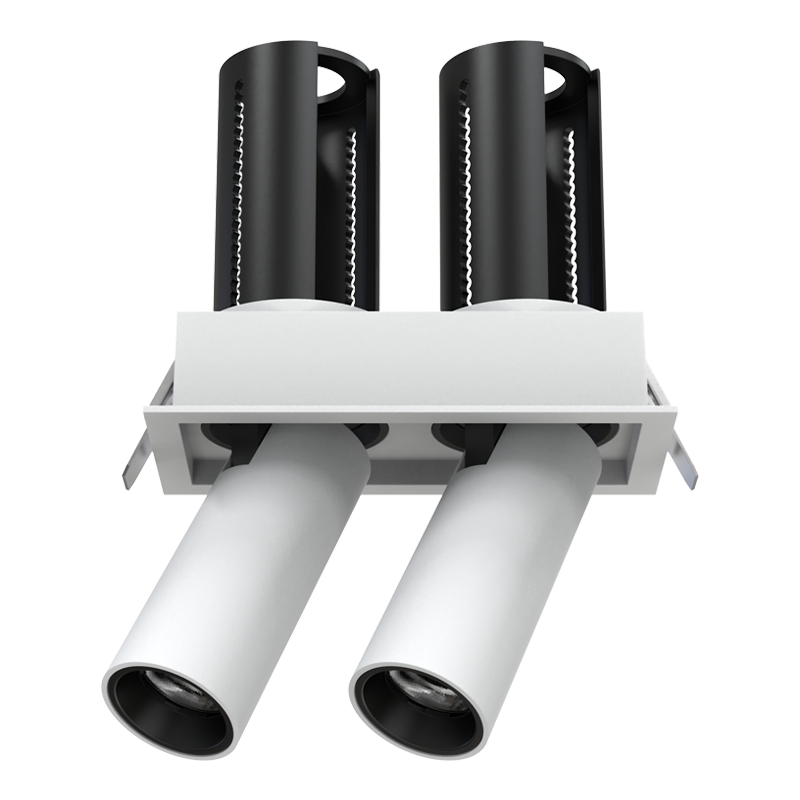

INTERIOR LED RECESSED DOWN SPOTLIGHT-PULLOUT

L03563

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

90° vertical tilting, 360° horizontal rotation and pull-out

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

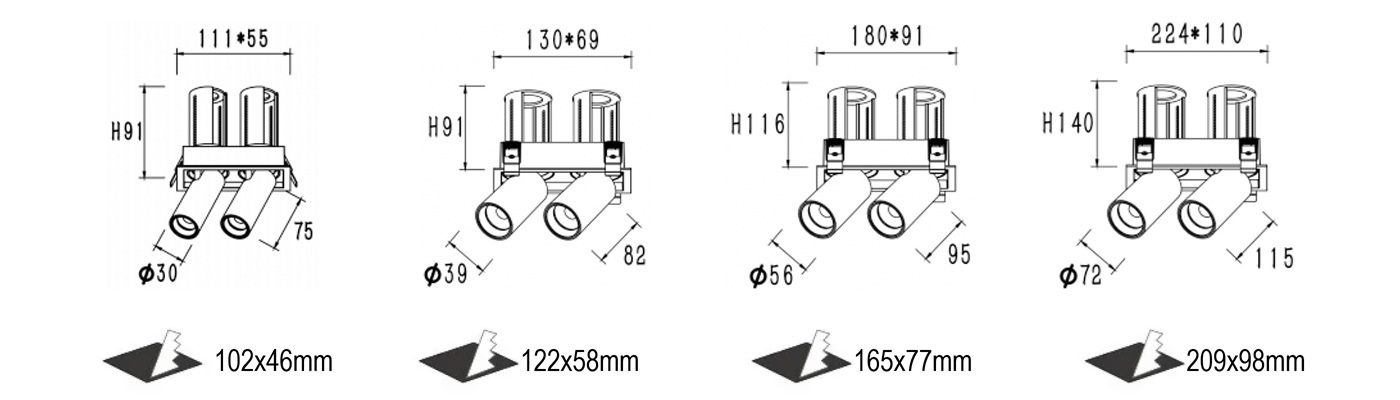

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L03563-7 2x7W 1120lm
111x55xH91mm
102x46mm
150mA
L03563-10 2x10W 1600lm
130x69xH91mm
122x58mm
250mA
L03563-18 2x18W 2880lm
180x91xH116mm
165x77mm
450mA
L03563-30 2x30W 4800lm
224x110xH140mm
209x98mm
750mA

FEATURES

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. They comprise a LED light module, a metal baffle and a metal mounting frame. 90° vertical tilting, 360° horizontal rotation and pull-out.Easy installations. it facilitates the installation by giving the opportunity to the installer to place the mounting frame in advance. No need to worry for the lighting modules in further finishing of the room, as the spotlight modules can be pushed into the frame afterwards, and easy to take it off the mounting frame. The possibility to take the spotlight out from its mounting frame, adjustable and the right angled incliation make this product to be highly flexible and easy to handle. The spotlight offer homogeneous and uniform light distribution.Specialized optics and optical filters can be ordered. Dimmable. 5years warranty. Customized color finishing, power changes are possible depending on the request and the quantity. The new creating that meets the needs of your residential and commercial projects.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
7W   150mA
10W   250mA
18W   450mA
30W   750mA
