35 I 45 I 65 I 90 I 120

L03346 Spotlight    IP40

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. 90°adjustable 355°rotation, pull-out.

Double adjustability，90° vertical tilting and 360° horizontal rotation amd pull-out spotlight , Visual comfort low glare optic , recessed light source. available for four different output beams 15/24/36/50°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 1500-6750lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • CREE branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

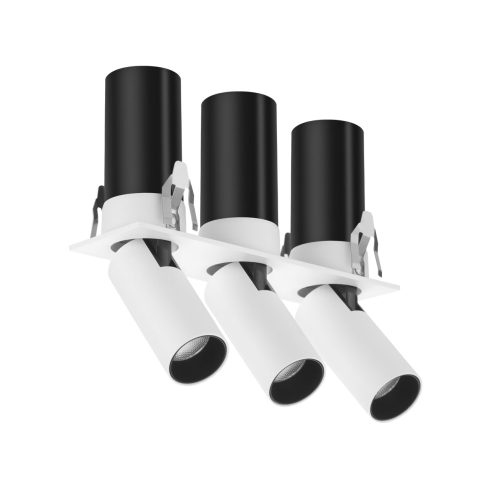

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03346

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

90° vertical tilting, 360° horizontal rotation and pull-out

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

CREE branded COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03346-5 3x5W 1500lm
43x149xH87mm
35x140mm		 125mA
L03346-6 3x6W 1800lm
53x184xH93mm
45x175mm		 150mA
L03346-7 3x7W 1890lm
72x192xH110mm
65x182mm		 175mA
L03346-15 3x15W 4050lm
100x270xH112mm
90x260mm		 375mA
L03346-25 3x25W 6750lm
130x345xH135mm
120x335mm		 625mA

FEATURES

Double adjustability，90° vertical tilting and 360° horizontal rotation amd pull-out spotlight , Visual comfort low glare optic , recessed light source. available for four different output beams 15/24/36/50°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
5W   125mA
6W   150mA
7W   175mA
15W   375mA
25W   625mA
