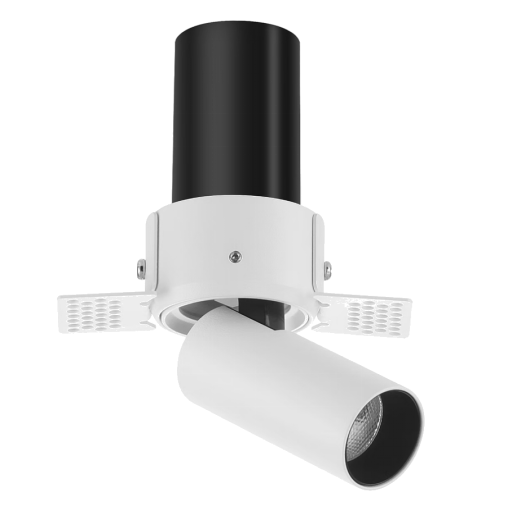

L03341 Spotlight IP40

Aluminium material and powder coating. Remote LED driver version. High level of visual comfort. 90°adjustable 355°rotation, pull-out.

Double adjustability，90° vertical tilting and 360° horizontal rotation amd pull-out spotlight , Visual comfort low glare optic , recessed light source. available for four different output beams 15/24/36/50°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

500lm
Remote LED Driver
Aluminium die-casting lighting fixture, powder coated.
Ceiling Recessed.
DALI I Triac I 0/1-10V I CASAMBI I DT8
300-400mm cable with quick connector.
CREE branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03341

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

90° vertical tilting, 360° horizontal rotation and pull-out

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

CREE branded COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

HIGHLY FLEXIBLE AND UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03341-5	5W	500lm	86xH87mm	45mm	125mA

FEATURES

Double adjustability，90° vertical tilting and 360° horizontal rotation amd pull-out spotlight , Visual comfort low glare optic , recessed light source. available for four different output beams 15/24/36/50°. The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation with spring, A small downlight characterized by innovative and surprising solutions.The rotation and the right angled inclination make this product to be highly flexible and easy to handle.It is ideal for lighting architectural and artistic details up. High Definition optical lenses in thermoplastic material,uniform distribution. Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver	Accessoires	Beam Angle	Color Temperature	Finishes
5W 125mA

Download
