L03337 Spotlight IP40

Aluminium die casting material and powder coating. Built-in LED Driver version. Light spot uniform transition, no bright and dark stripes wall washer spotlight.

The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency.·Super turnable white perfarmance.·Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. Two color anti-glare covers available:chrome +electroplated black.·High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios.The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling mounted, Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

690-1400lm
Built-in Driver
Aluminium die-casting lighting fixture, powder coated.
Surface Mounted.
DALI I Triac I 0/1-10V I CASAMBI I DT8
300-400mm cable with quick connector.
CREE branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03337

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Light spot uniform transition, no bright and dark stripes.

Surface Mounted.

Aluminium die-casting lighting fixture, powder coated.

CREE branded COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Built-in LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

WALL WASHER I UNIFORM DISTRIBUTION

Code

System Power
W

Output Lumen
lm

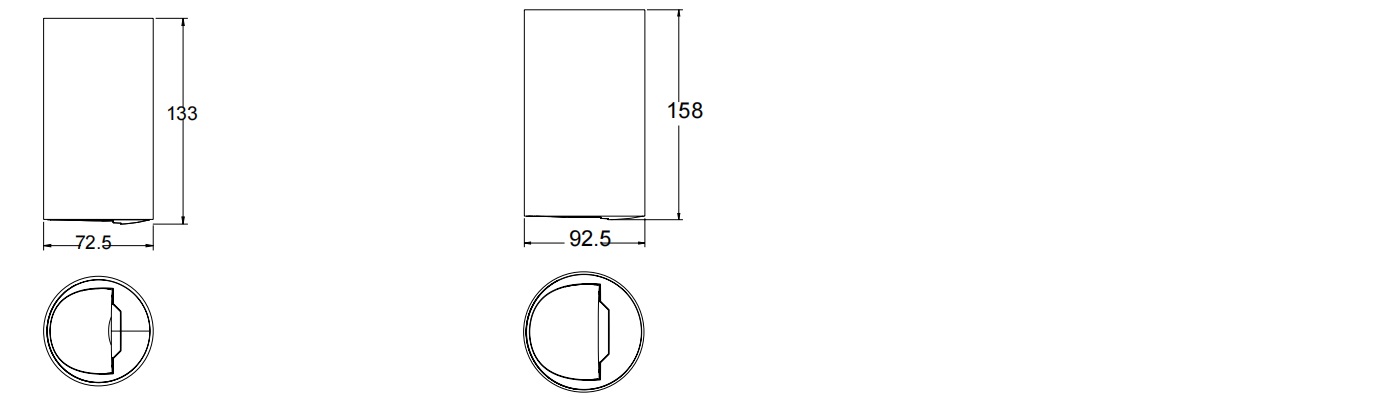

Dimension
mm

Cut Hole
mm

Power Supply
mA


L03337-12	12W	690lm	73xH133mm	mm	300mA


L03337-23	23W	1400lm	92xH158mm	mm	550mA

FEATURES

The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency.·Super turnable white perfarmance.·Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. Two color anti-glare covers available:chrome +electroplated black.·High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios.The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling mounted, Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Built-in Driver	Accessoires	Beam Angle	Color Temperature	Finishes
12W 300mA 23W 550mA
