Ø55 I Ø75 I Ø95

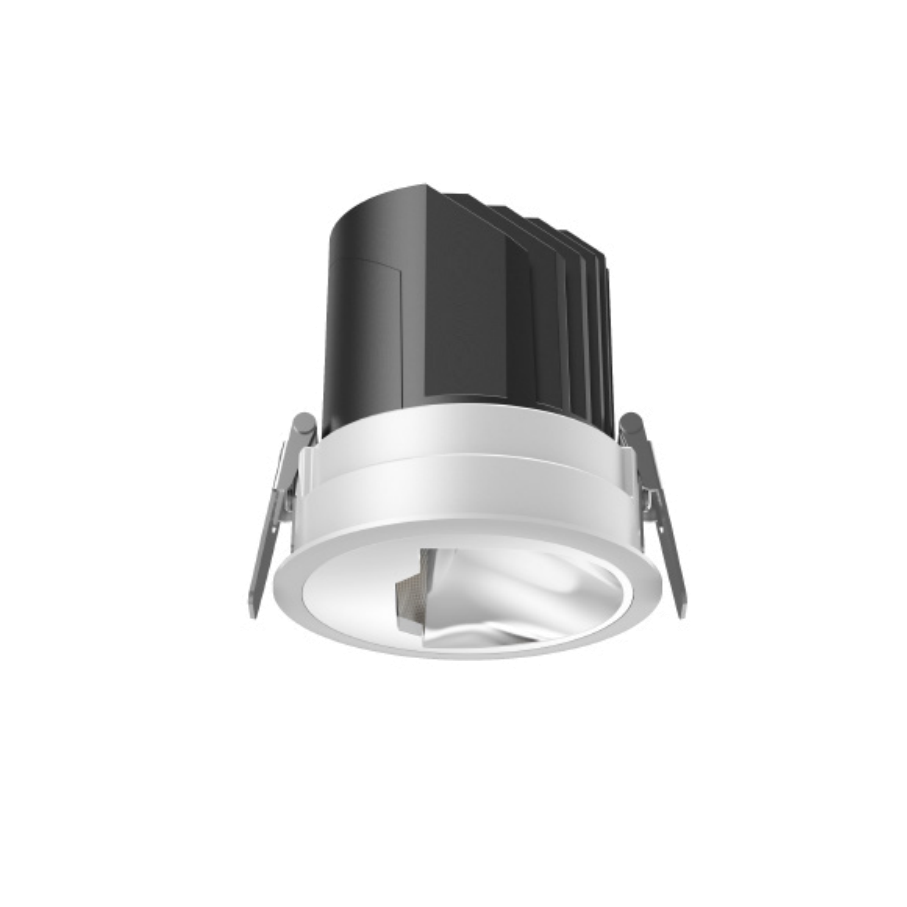

L03323 Spotlight    IP40

Aluminium die casting material and powder coating. Remote LED driver version. Light spot uniform transition, no bright and dark stripes wall washer spotlight.

The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency.·Super turnable white perfarmance.·Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. Two color anti-glare covers available:chrome +electroplated black.·High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios.The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

TECHICAL DATA

  • 428-2070lm
  • Remote LED Driver
  • Aluminium die-casting lighting fixture, powder coated.
  • Ceiling Recessed.
  • DALI I Triac I 0/1-10V I CASAMBI I DT8
  • 300-400mm cable with quick connector.
  • CREE branded COB LED CRI90+ 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED RECESSED DOWN SPOTLIGHT

L03323

IP40

CLASS III

Europe Standard & CE Certificate. 220-240V 50/60Hz

Light spot uniform transition, no bright and dark stripes.

Ceiling Recessed.

Aluminium die-casting lighting fixture, powder coated.

CREE branded COB LED CRI90+ 3SDCM

Flicker Free I Deeply recessed light source.

Remote LED Driver

DALI I Triac I 0/1-10V I CASAMBI I DT8

WALL WASHER I UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm

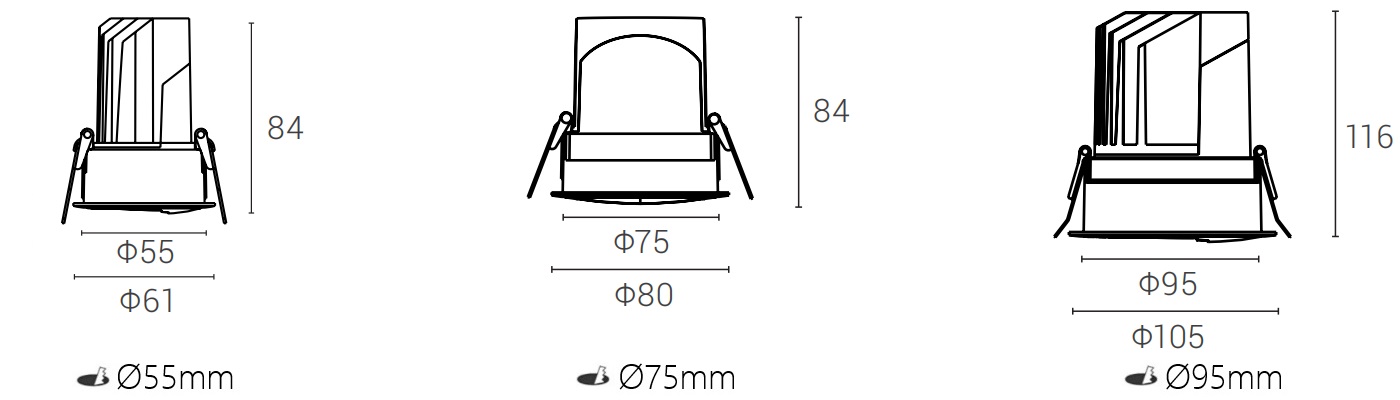

Dimension
mm
Cut Hole
mm
Power Supply
mA
L03323-8 8W 428lm
61xH84mm
55mm
200mA
L03323-12 12W 690lm
80xH84mm
75mm
300mA
L03323-23 23W 2070lm
105xH116mm
95mm
575mA

FEATURES

The fixed wall washer spotlight Specially designed free-form reflective cup with anti-glare cover, accurate light path,active anti-glare,with higher light efficiency.·Super turnable white perfarmance.·Wall washing with no dark area. The splicing of multiple lamps has a better wallwashing effect. Two color anti-glare covers available:chrome +electroplated black.·High temperature resistant material,reflective cup temperature 140℃. ·Multiple forms are available,which perfectly match various application scenarios.The basic model comes in white and black colors. Customized color finishing, power changes are possible depending on the request and the quantity. Simple installation ceiling recessed with spring, Famous brand LED chips CRI90+ 3steps. Smart lighting, achieved CASAMBI I DALI DT8 dimmable. Easy lighting demand, for a wide scala of projects, from hotels, retail , commercial areas and much more. The spotlight is presented to its customers as a clean and non-dazzling product.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
8W   200mA
12W   300mA
23W   575mA
