zoomable 15°-58°

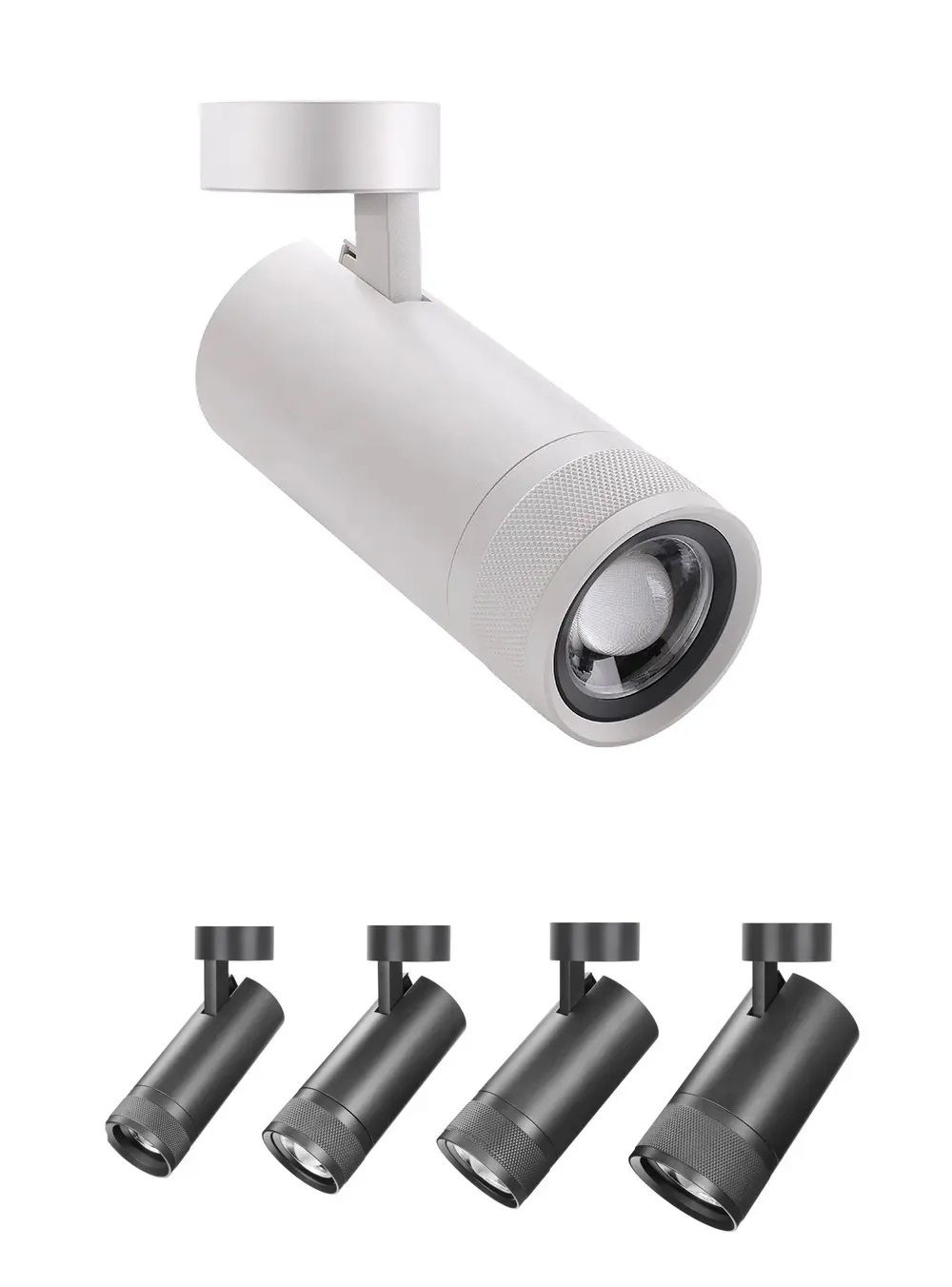

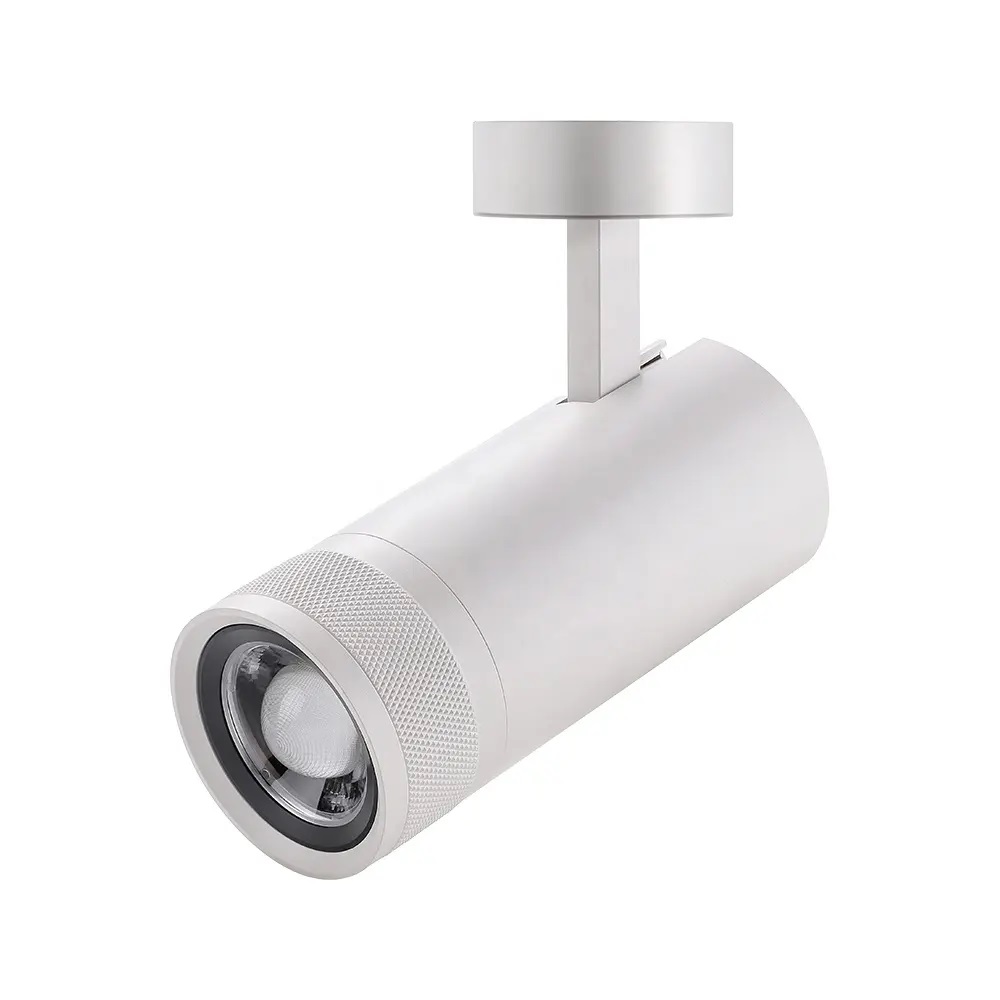

L03268 Spotlight    IP20

Aluminium material and powder coating. Surface Mounted I Zoomable

Aluminium extrusion material and powder coating. - Beam angle zooming version, Double adjustability 90°adjustable 355°rotation, beam angle zooming 15°-58° An ideal accent lighting in residential or commercial. -High level of visual comfort, the high performances and flexibility for every project. Easy installation, High Definition optical lenses in thermoplastic material. -Uniform distribution. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 850-1500lm
  • Built-in LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<16
  • DALI I Triac I 0/1-10V dimming
  • Surface Mounted
  • Famous brand LED chips CRI90+ 3steps Dimmable

Product is Europe Standard & CE Certificate.

INTERIOR LED SURFACE MOUNTED SPOTLIGHT

L03268

IP20

CLASS III

Surface Mounted

ECO Energy Saving

Aluminium material lighting fixture, powder coated.

Eyes friendly CE certificate RoHS standard

CRI90+ 3SDCM COB LED

Triac I 0/1-10V I DALI dimmable

Flicker Free

Warranty 5 Years

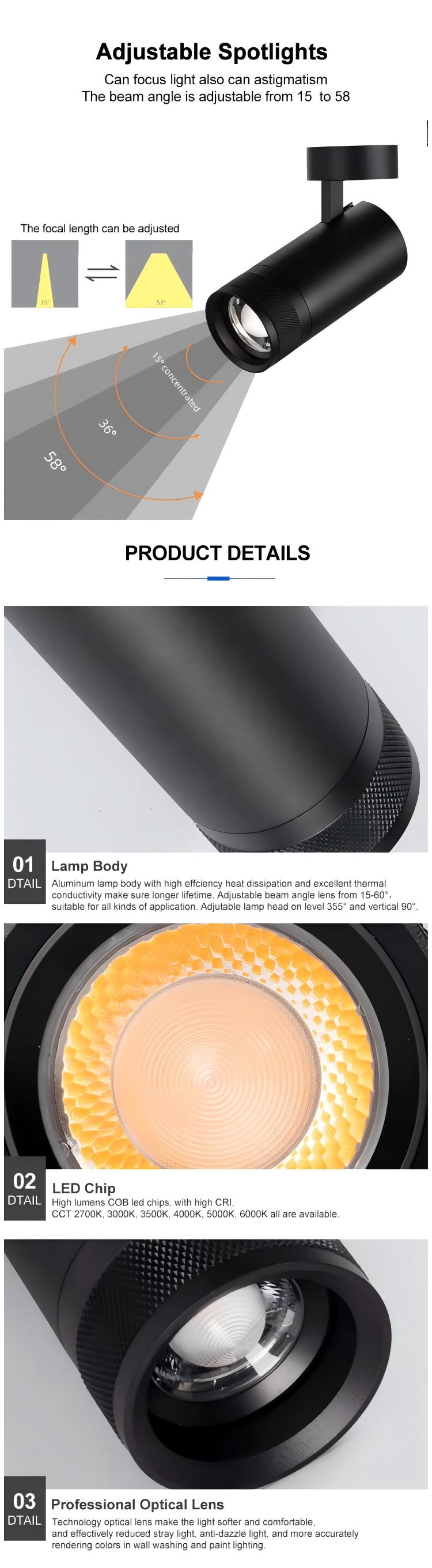

BEAM ANGLE ZOOMING VERSION 15°-58°

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03268-12 12W 850lm
62xH160mm
mm		 300mA
L03268-20 20W 1500lm
72xH171mm
mm		 500mA

FEATURES

Aluminium extrusion material and powder coating. - Beam angle zooming version, Double adjustability 90°adjustable 355°rotation, beam angle zooming 15°-58° An ideal accent lighting in residential or commercial. -High level of visual comfort, the high performances and flexibility for every project. Easy installation, High Definition optical lenses in thermoplastic material. -Uniform distribution. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

Built-in LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   300mA
20W   500mA
