zoomable 15°-58°

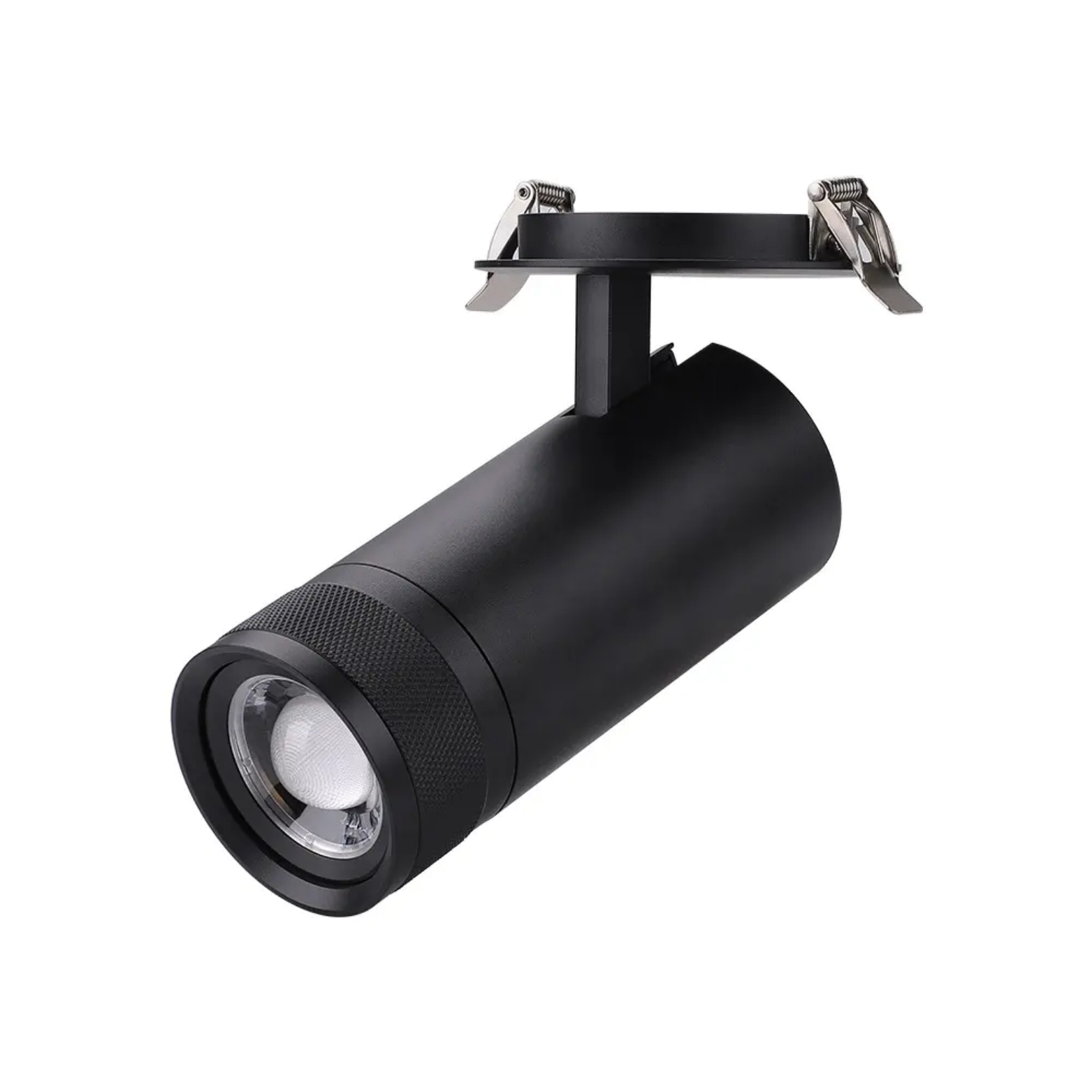

L03212 Spotlight    IP20

Aluminium material and powder coating. Zoomable

Aluminium extrusion material and powder coating. - Beam angle zooming version, Double adjustability 90°adjustable 355°rotation, beam angle zooming 15°-58° An ideal accent lighting in residential or commercial. -High level of visual comfort, the high performances and flexibility for every project. Easy installation, High Definition optical lenses in thermoplastic material. -Uniform distribution. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 750-1800lm
  • Remote LED Driver
  • Aluminium lighting fixture, powder coated.
  • Flicker Free CRI90+ UGR<16
  • DALI I Triac I 0/1-10V dimming
  • CEILING RECESSED
  • Famous brand LED chips CRI90+ 3steps Dimmable

Product is Europe Standard & CE Certificate.

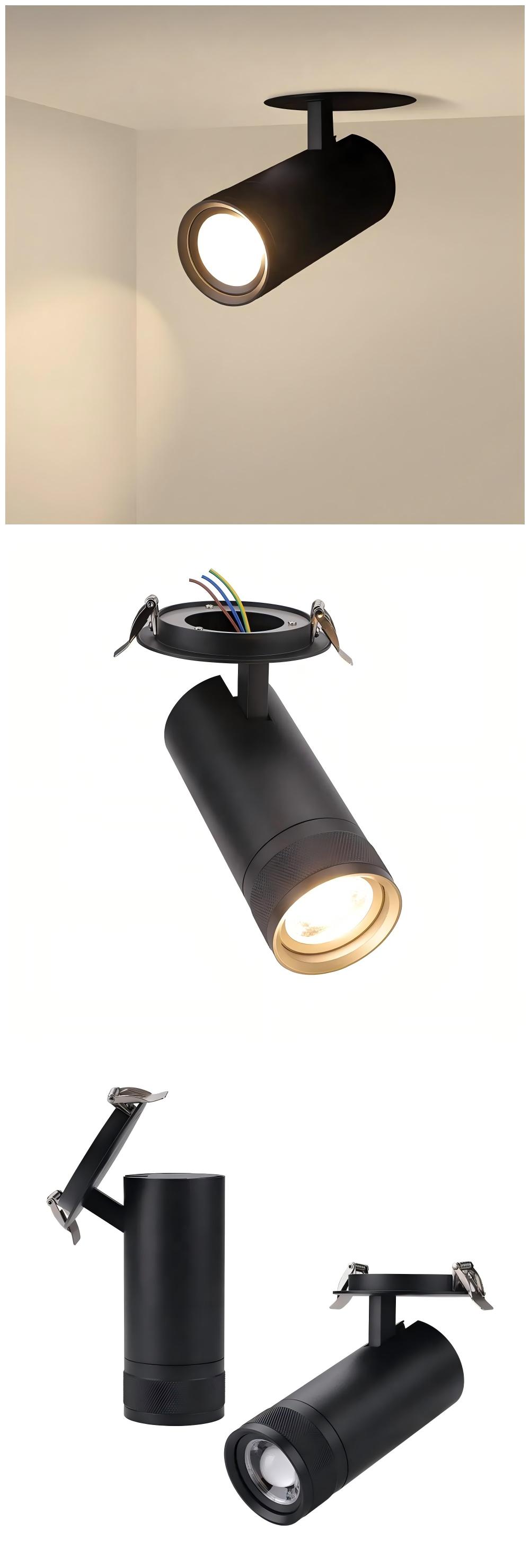

INTERIOR LED CEILING RECESSED DOWN SPOTLIGHT

L03212

IP20

CLASS III

CEILING RECESSED

ECO Energy Saving

Aluminium material lighting fixture, powder coated.

Eyes friendly CE certificate RoHS standard

CRI90+ 3SDCM COB LED

Triac I 0/1-10V I DALI dimmable

Flicker Free

Warranty 5 Years

BEAM ANGLE ZOOMING VERSION 15°-58°

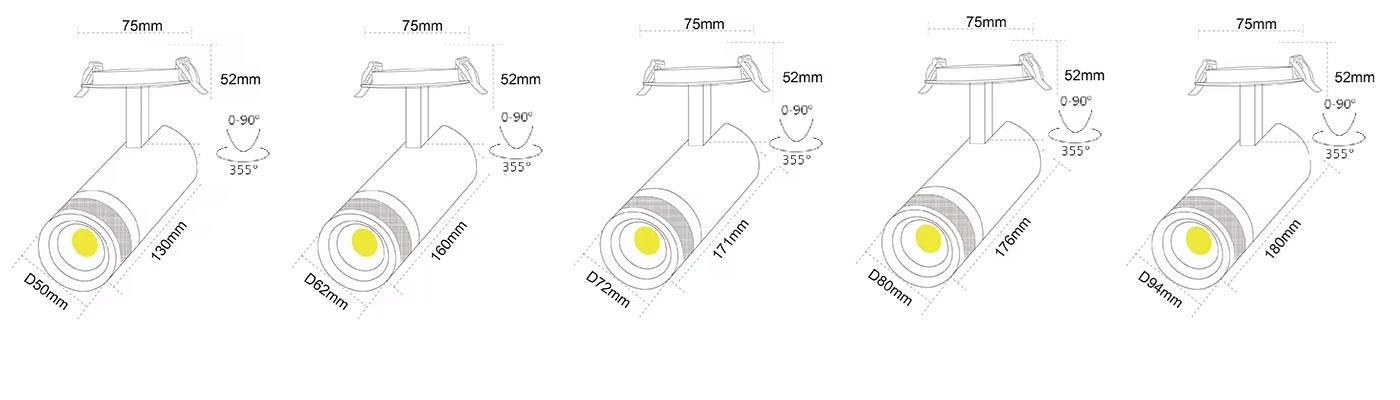

Code System Power
W		 Output Lumen
lm		 Dimension
mm		 Cut Hole
mm		 Power Supply
mA
L03212-10 10W 750lm
50xH130mm
75mm		 250mA
L03212-15 15W 1100lm
62xH160mm
75mm		 350mA
L03212-25 25W 1800lm
72xH171mm
75mm		 650mA

FEATURES

Aluminium extrusion material and powder coating. - Beam angle zooming version, Double adjustability 90°adjustable 355°rotation, beam angle zooming 15°-58° An ideal accent lighting in residential or commercial. -High level of visual comfort, the high performances and flexibility for every project. Easy installation, High Definition optical lenses in thermoplastic material. -Uniform distribution. White OR Black color finishing as standard. -- Customized power changes are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

Remote LED Driver Accessoires Beam Angle Color Temperature Finishes
10W   250mA
15W   350mA
25W   650mA
