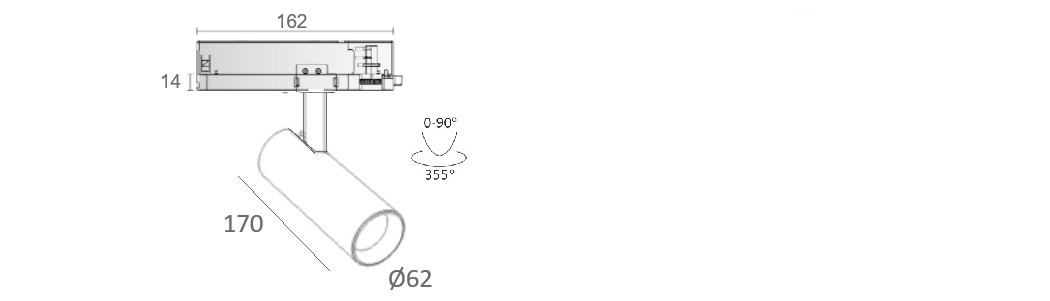

Ø62 12W ON/OFF

L09115F Spotlight    IP20

Aluminium extrusion material and powder coating. - Excellent cooling system. Integrated ON/OFF Driver

European standard 4 wire 3-phase trackspotlight, Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a Integrated ON/OFF Driver and adaptor. An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI95, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. The metal baffle comes in multiple colors, Black I White I Gold. Customized power are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

TECHICAL DATA

  • 1200lm
  • Integrated LED Driver
  • Aluminium lighting fixture, powder coated.
  • Integrated cooling system to ensure the spotlight long lifetime.
  • Double adjustability 90°adjustable 355°rotation,
  • European standard 4 wire 3-phase Track Rails
  • CREE1512 COB LED Chips I CRI95 I 3SDCM

Product is Europe Standard & CE Certificate.

INTERIOR LED TRACK SPOTLIGHT

L09115F

IP20

CLASS III

European standard 4 wire 3-phase Trackspotlight

ECO Energy Saving. I CE certificate I RoHS standard

Aluminium extrusion and powder coating housing.

An ideal solution for accent lighting

CREE1512 COB LED Chips I CRI95 I 3SDCM

Integrated ON/OFF LED Driver I Flicker Free

Double adjustability 90°adjustable 355°rotation

Warranty 5Years

EXCELLENT COOLING SYSTEM AND UNIFORM DISTRIBUTION

Code System Power
W
Output Lumen
lm
Dimension
mm
Cut Hole
mm
Power Supply
mA
L09115F-12 12W 1200lm
62xH170mm
mm
240mA

FEATURES

European standard 4 wire 3-phase trackspotlight, Aluminium lighting fixture, cold forging process and powder coated, Integrated cooling system to ensure the spotlight long lifetime. Luminaires are powered by a Integrated ON/OFF Driver and adaptor. An ideal solution for accent lighting. the high performances and flexibility for every project. High Definition optical lenses in thermoplastic material. -Uniform distribution. It allows 360°rotation about the vertical axis and 90° tilting relative to the horizontal plane make the spotlight highly flexible and easy to handle, the light is emitted exactly where you want it. Specialized optical filters can be ordered. The light spots were natural transition, clear and soft. 3SDCM to ensure color temperature consistency for the quality lighting. Excellent colour rendering with CRI95, it's perfect for a wide range of food, flowers, clothes, and in general for other display lighting applications. The standard product comes in RAL 9005 Black color finishing I RAL 9016 White color finishing. The metal baffle comes in multiple colors, Black I White I Gold. Customized power are possible depending on the request and the quantity. -On the request it can be offered in any RAL colour, matching the specific look and feel of your design.

Integrated LED Driver Accessoires Beam Angle Color Temperature Finishes
12W   240mA
